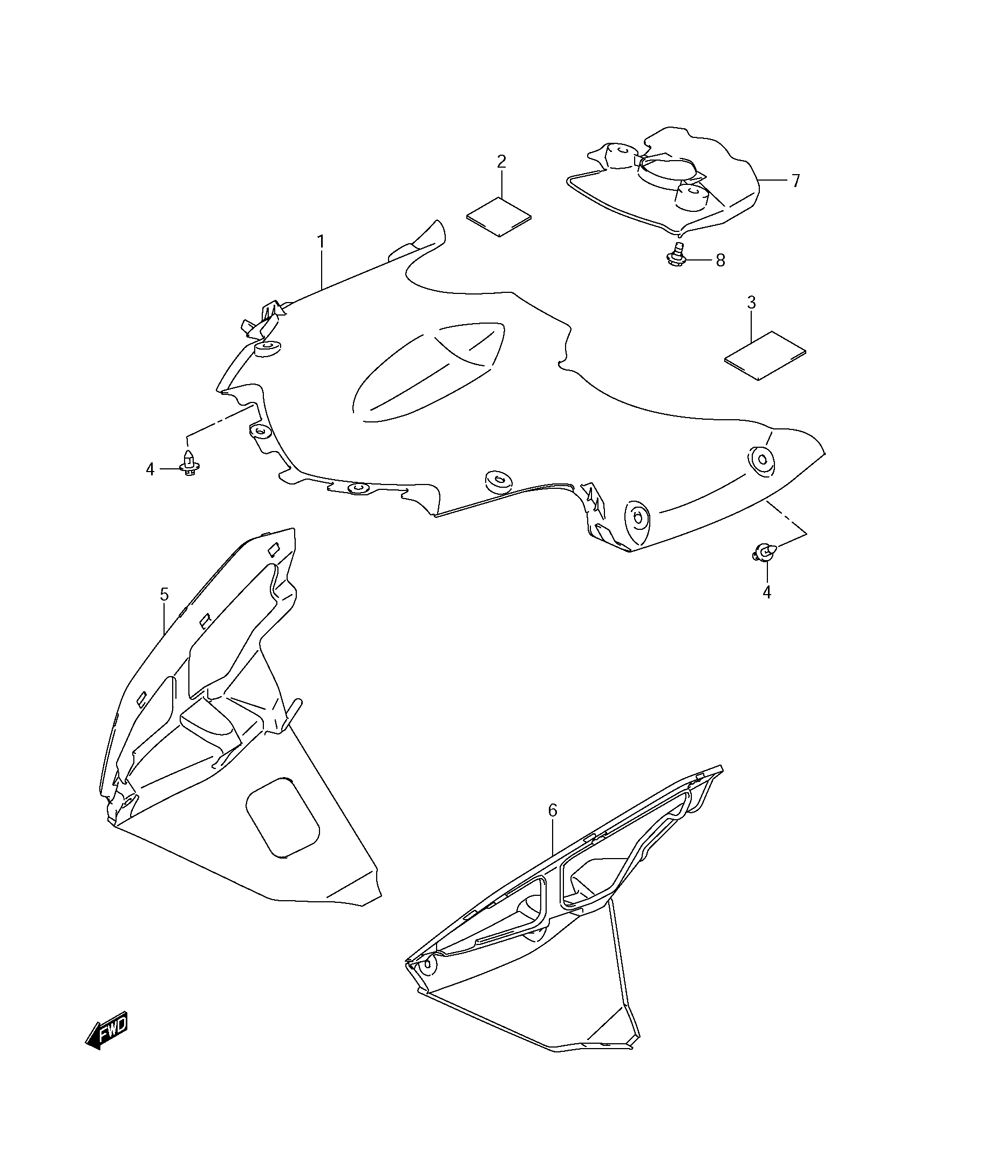

COWLING - UNDER BODY - INSTALLATION для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
194419-47H00 COVER, BODY COWLCOVER, BODY COWL
-
233652-29F00 CUSHION, FRONTCUSHION, FRONT
-
336930-82010 CUSHION, SIDECUSHION, SIDE
-
409409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
594461-47H00 COWL, UNDER INNER RIGHT HANDCOWL, UNDER INNER RIGHT HAND
-
694462-47H00 COWL, UNDER INNER LEFT HANDCOWL, UNDER INNER LEFT HAND
-
794458-21H00 COVER, LOWER BRACKETCOVER, LOWER BRACKET
-
863161-43E00 BOLTBOLT
