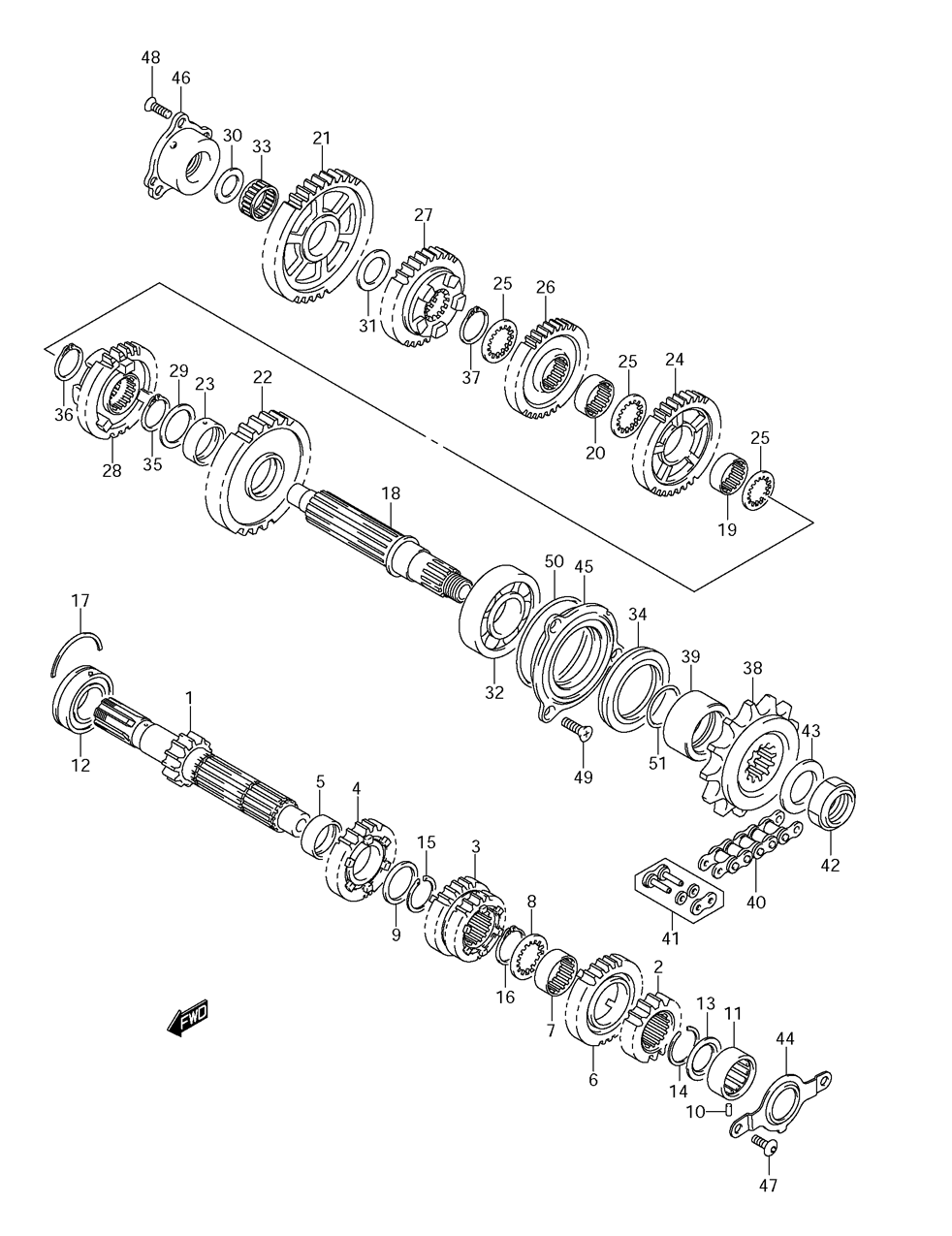

TRANSMISSION для Suzuki GSX-R1000 K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    24120-47H00 SHAFT, CNTR (NO. OF TEETH: 16)
    SHAFT, CNTR (NO. OF TEETH: 16)
  • 2
    24221-40F30 GEAR, 2ND DRIVE (NO. OF TEETH: 19)
    GEAR, 2ND DRIVE (NO. OF TEETH: 19)
  • 3
    24231-47H00 GEAR, 3RD & 4TH DRIVE
    GEAR, 3RD & 4TH DRIVE
  • 4
    24251-47H00 GEAR, 5TH DRIVE (NO. OF TEETH: 25)
    GEAR, 5TH DRIVE (NO. OF TEETH: 25)
  • 5
    24252-24F10 BUSH, 5TH DRIVE GEAR
    BUSH, 5TH DRIVE GEAR
  • 6
    24261-47H00 GEAR, 6TH DRIVE (NO. OF TEETH: 26)
    GEAR, 6TH DRIVE (NO. OF TEETH: 26)
  • 7
    24262-24F20 BUSH, 6TH DRIVE GEAR
    BUSH, 6TH DRIVE GEAR
  • 8
    09167-27001 WASHER, 6TH DRIVE GEAR
    WASHER, 6TH DRIVE GEAR
  • 9
    09160-27008 WASHER, 5TH DRIVE GEAR 27X36X1
    WASHER, 5TH DRIVE GEAR 27X36X1
  • 10
    04221-07129 PIN, COUNTER SHAFT BEAR
    PIN, COUNTER SHAFT BEAR
  • 11
    09263-20103 BEARING, COUNTER SHAFT, L 20X34X16
    BEARING, COUNTER SHAFT, L 20X34X16
  • 12
    09267-25013 BEARING, CNTR SHAFT, R 25X52X20.6
    BEARING, CNTR SHAFT, R 25X52X20.6
  • 13
    09285-20006 SEAL, OIL 20X31.2X2.7
    SEAL, OIL 20X31.2X2.7
  • 14
    09380-27004 CIRCLIP, 2ND DRIVE GEAR
    CIRCLIP, 2ND DRIVE GEAR
  • 15
    09380-27006 CIRCLIP, 5TH DRIVE GEAR
    CIRCLIP, 5TH DRIVE GEAR
  • 16
    09380-27006 CIRCLIP, 6TH DRIVE GEAR
    CIRCLIP, 6TH DRIVE GEAR
  • 17
    09390-58001 C-RING, CNTR SHAFT BRG, R
    C-RING, CNTR SHAFT BRG, R
  • 18
    24131-47H00 SHAFT, DRIVE
    SHAFT, DRIVE
  • 19
    24332-24F20 BUSH, 3RD DRIVEN GEAR
    BUSH, 3RD DRIVEN GEAR
  • 20
    24332-24F20 BUSH, 4TH DRIVEN GEAR
    BUSH, 4TH DRIVEN GEAR
  • 21
    24311-47H00 GEAR, 1ST DRIVEN (NO. OF TEETH: 41)
    GEAR, 1ST DRIVEN (NO. OF TEETH: 41)
  • 22
    24321-47H00 GEAR, 2ND DRIVEN (NO. OF TEETH: 39)
    GEAR, 2ND DRIVEN (NO. OF TEETH: 39)
  • 23
    24322-24F10 BUSH, 2ND DRIVEN GEAR
    BUSH, 2ND DRIVEN GEAR
  • 24
    24331-47H00 GEAR, 3RD DRIVEN (NO. OF TEETH: 36)
    GEAR, 3RD DRIVEN (NO. OF TEETH: 36)
  • 25
    24333-47H00 WASHER, 3RD & 4TH DRIVE
    WASHER, 3RD & 4TH DRIVE
  • 26
    24341-47H00 GEAR, 4TH DRIVEN (NO. OF TEETH: 36)
    GEAR, 4TH DRIVEN (NO. OF TEETH: 36)
  • 27
    24351-47H00 GEAR, 5TH DRIVEN (NO. OF TEETH: 34)
    GEAR, 5TH DRIVEN (NO. OF TEETH: 34)
  • 28
    24361-47H00 GEAR, 6TH DRIVEN (NO. OF TEETH: 33)
    GEAR, 6TH DRIVEN (NO. OF TEETH: 33)
  • 29
    09181-30167 WASHER, 2ND DRIVEN GEAR 30X40X1
    WASHER, 2ND DRIVEN GEAR 30X40X1
  • 30
    09181-22223 WASHER, 1ST DRIVEN GEAR, R 22X34X1
    WASHER, 1ST DRIVEN GEAR, R 22X34X1
  • 31
    09181-24005 WASHER, 1ST DRIVEN GEAR, L
    WASHER, 1ST DRIVEN GEAR, L
  • 32
    09267-30014 BEARING, DRIVE SHAFT, L
    BEARING, DRIVE SHAFT, L
  • 33
    09263-24030 BEARING, 1ST DRIVEN GEAR
    BEARING, 1ST DRIVEN GEAR
  • 34
    09283-38027 SEAL, DRIVE SHAFT OIL
    SEAL, DRIVE SHAFT OIL
  • 35
    09380-30009 CIRCLIP, 2ND DRIVEN GEAR
    CIRCLIP, 2ND DRIVEN GEAR
  • 36
    09380-30009 CIRCLIP, 3RD DRIVEN GEAR
    CIRCLIP, 3RD DRIVEN GEAR
  • 37
    09380-30009 CIRCLIP, 4TH DRIVEN GEAR
    CIRCLIP, 4TH DRIVEN GEAR
  • 38
    27510-15H10 SPROCKET, ENGINE
    SPROCKET, ENGINE
  • 39
    27531-47H00 SPACER, ENGINE SPROCKET
    SPACER, ENGINE SPROCKET
  • 40
    27600-40F20-114 CHAIN ASSEMBLY, DRIVE (DID50VAZ)
    CHAIN ASSEMBLY, DRIVE (DID50VAZ)
  • 41
    27620-40F20 JOINT SET, DRIVE CHAIN (OPTIONAL)
    JOINT SET, DRIVE CHAIN (OPTIONAL)
  • 42
    09159-22008 NUT, ENGINE SPROCKET
    NUT, ENGINE SPROCKET
  • 43
    09181-27016 WASHER, ENGINE SPROCKET 27X42X1.5
    WASHER, ENGINE SPROCKET 27X42X1.5
  • 44
    24741-01H00 RETAINER, CL PUSH ROD
    RETAINER, CL PUSH ROD
  • 45
    24751-47H00 RETAINER, DRIVE SHAFT BRG, L
    RETAINER, DRIVE SHAFT BRG, L
  • 46
    24771-01820 HOUSING, DRIVE SHAFT SET
    HOUSING, DRIVE SHAFT SET
  • 47
    09139-06153 SCREW, PUSH ROD OIL SEAL 6X13
    SCREW, PUSH ROD OIL SEAL 6X13
  • 48
    09139-06159 SCREW, DRIVE SHAFT BRG HOUSING 6X20
    SCREW, DRIVE SHAFT BRG HOUSING 6X20
  • 49
    09139-06159 SCREW, DRIVE SHAFT BEARING RTNR 6X20
    SCREW, DRIVE SHAFT BEARING RTNR 6X20
  • 50
    09280-62004 O-RING, DRIVE SHAFT RETURN DIAMETER: 1.9,INSIDE DIAMETER: 61.5
    O-RING, DRIVE SHAFT RETURN DIAMETER: 1.9,INSIDE DIAMETER: 61.5
  • 51
    09280-26005 O-RING, ENGINE SPROCKET DIAMETER: 2.4,INSIDE DIAMETER: 26.2
    O-RING, ENGINE SPROCKET DIAMETER: 2.4,INSIDE DIAMETER: 26.2
