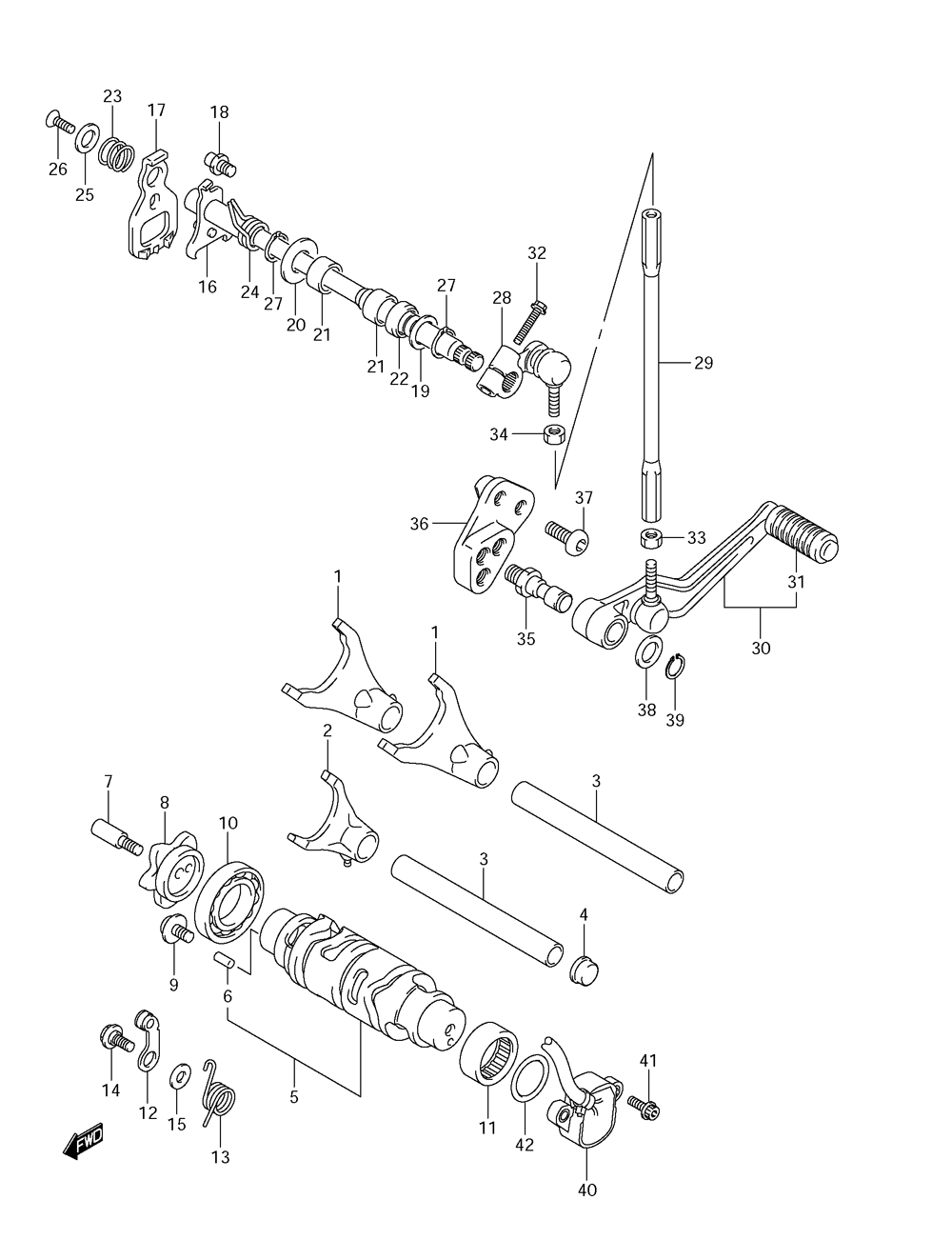

GEAR SHIFTING для Suzuki GSX-R1000 K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    25211-01H10 FORK, GEAR SHIFT NO.1
    FORK, GEAR SHIFT NO.1
  • 2
    25231-01H01 FORK, GEAR SHIFT NO.3
    FORK, GEAR SHIFT NO.3
  • 3
    25411-27A00 SHAFT, GEAR SHIFT FORK
    SHAFT, GEAR SHIFT FORK
  • 4
    25712-37H00 PLUG, GEAR SHIFT FORK SHAFT
    PLUG, GEAR SHIFT FORK SHAFT
  • 5
    25310-47H00 CAM, GEAR SHIFT
    CAM, GEAR SHIFT
  • 6
    04221-04089 ...PIN, SHIFT CAM PLATE
    ...PIN, SHIFT CAM PLATE
  • 7
    25312-42F01 BOLT, GEAR SHIFT CAM PLATE
    BOLT, GEAR SHIFT CAM PLATE
  • 8
    25381-13E30 PLATE, GEAR SHIFT CAM
    PLATE, GEAR SHIFT CAM
  • 9
    09136-06147 SCREW, GEAR SHIFT CAM RETAINER
    SCREW, GEAR SHIFT CAM RETAINER
  • 10
    09262-25006 BEARING, GEAR SHIFT CAM
    BEARING, GEAR SHIFT CAM
  • 11
    09263-25018 BEARING, GEAR SHIFT CAM, LEFT
    BEARING, GEAR SHIFT CAM, LEFT
  • 12
    25350-06G00 STOPPER, SHIFT CAM
    STOPPER, SHIFT CAM
  • 13
    25355-01H00 SPRING, GEAR SHIFT CAM
    SPRING, GEAR SHIFT CAM
  • 14
    09111-06041 BOLT, SHIFT CAM STOPPER ARM
    BOLT, SHIFT CAM STOPPER ARM
  • 15
    08211-06141 WASHER, CAM STOPPER THRUST
    WASHER, CAM STOPPER THRUST
  • 16
    25510-47H00 SHAFT, GEAR SHIFT
    SHAFT, GEAR SHIFT
  • 17
    25512-06G10 PLATE, GEAR SHIFT CAM DRIVE
    PLATE, GEAR SHIFT CAM DRIVE
  • 18
    25671-01011 STOPPER, GEAR SHIFT ARM
    STOPPER, GEAR SHIFT ARM
  • 19
    09160-14016 WASHER, GEAR SHIFT SHAFT, LEFT
    WASHER, GEAR SHIFT SHAFT, LEFT
  • 20
    09181-14195 WASHER, GEAR SHIFT SHAFT
    WASHER, GEAR SHIFT SHAFT
  • 21
    09263-14027 BEARING, GEAR SHIFT SHAFT
    BEARING, GEAR SHIFT SHAFT
  • 22
    09283-14006 SEAL, GEAR SHIFT SHAFT OIL
    SEAL, GEAR SHIFT SHAFT OIL
  • 23
    25518-01H00 SPRING, GEAR SHIFT PLATE
    SPRING, GEAR SHIFT PLATE
  • 24
    09444-20001 SPRING, SHIFT SHAFT RETURN
    SPRING, SHIFT SHAFT RETURN
  • 25
    25519-01H00 WASHER, GEAR SHIFT SHAFT END
    WASHER, GEAR SHIFT SHAFT END
  • 26
    09126-06014 BOLT, GEAR SHIFT SHAFT END
    BOLT, GEAR SHIFT SHAFT END
  • 27
    08331-3114A CIRCLIP, GEAR SHIFT SHAFT
    CIRCLIP, GEAR SHIFT SHAFT
  • 28
    25520-01H00 ARM, GEAR SHIFT LINK
    ARM, GEAR SHIFT LINK
  • 29
    25525-01H00 ROD, GEAR SHIFT LINK
    ROD, GEAR SHIFT LINK
  • 30
    25600-47H00 LEVER ASSEMBLY, GEAR SHIFT
    LEVER ASSEMBLY, GEAR SHIFT
  • 31
    25652-20C00 ...RUBBER, GEAR SHIFT PEDAL
    ...RUBBER, GEAR SHIFT PEDAL
  • 32
    01547-0625A BOLT, GEAR SHIFT LINK ARM
    BOLT, GEAR SHIFT LINK ARM
  • 33
    09140-06025 NUT, GEAR SHIFT LINK ROD, LEFT
    NUT, GEAR SHIFT LINK ROD, LEFT
  • 34
    09140-06020 NUT, GEAR SHIFT LINK ROD
    NUT, GEAR SHIFT LINK ROD
  • 35
    25617-03F10 SHAFT, GEAR SHIFT LEVER
    SHAFT, GEAR SHIFT LEVER
  • 36
    25681-47H00 BRACKET, GEAR SHIFT LEVER
    BRACKET, GEAR SHIFT LEVER
  • 37
    09106-08167 BOLT, GEAR SHIFT LEVER BRCKT
    BOLT, GEAR SHIFT LEVER BRCKT
  • 38
    09160-12011 WASHER, GEAR SHIFT LEVER
    WASHER, GEAR SHIFT LEVER
  • 39
    08331-3112A CIRCLIP, GEAR SHIFT LEVER
    CIRCLIP, GEAR SHIFT LEVER
  • 40
    37730-01H01 SENSOR ASSEMBLY, GEAR POSITION
    SENSOR ASSEMBLY, GEAR POSITION
  • 41
    09106-05023 BOLT, GEAR SHIFT SWITCH
    BOLT, GEAR SHIFT SWITCH
  • 42
    09280-26005 O-RING, GEAR SHIFT LEVER
    O-RING, GEAR SHIFT LEVER
