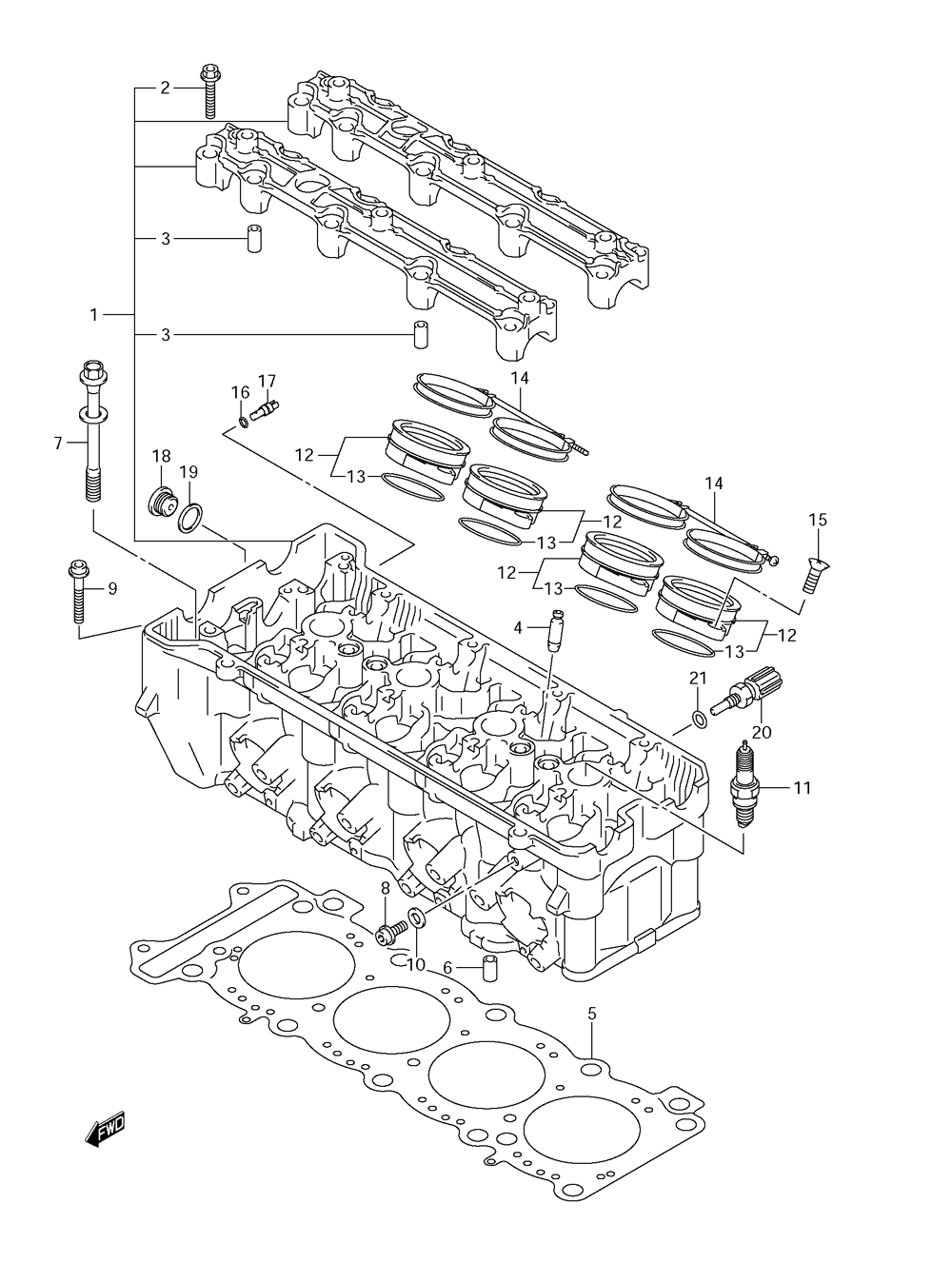

CYLINDER HEAD для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
111100-47H00 HEAD ASSEMBLY, CYLINDERHEAD ASSEMBLY, CYLINDER
-
209103-06266 ...BOLT...BOLT
-
309206-08007 ...PIN...PIN
-
411115-29G70 GUIDE, VALVE (OS 0.3) (OPTIONAL)GUIDE, VALVE (OS 0.3) (OPTIONAL)
-
511141-47H00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
604211-11169 PINPIN
-
711117-30G00 BOLTBOLT
-
809103-06222 BOLT, OIL GALLERYBOLT, OIL GALLERY
-
907120-0650A BOLT, CYLINDER HEADBOLT, CYLINDER HEAD
-
1009168-06023 GASKETGASKET
-
1109482-00558 SPARK PLUG (NGK,CR9EIA-9)SPARK PLUG (NGK,CR9EIA-9)
-
1109482-00557 SPARK PLUG (DENSO,IU27D)SPARK PLUG (DENSO,IU27D)
-
1109482-00556 SPARK PLUG (NGK,CR8EIA-9) (OPTIONAL)SPARK PLUG (NGK,CR8EIA-9) (OPTIONAL)
-
1109482-00560 SPARK PLUG (NGK,CR10EIA-9) (OPTIONAL)SPARK PLUG (NGK,CR10EIA-9) (OPTIONAL)
-
1109482-00555 SPARK PLUG (DENSO,IU24D) (OPTIONAL)SPARK PLUG (DENSO,IU24D) (OPTIONAL)
-
1109482-00559 SPARK PLUG (DENSO,IU31D) (OPTIONAL)SPARK PLUG (DENSO,IU31D) (OPTIONAL)
-
1213101-47H00 PIPE, INTAKEPIPE, INTAKE
-
1309280-48010 ...O RING...O RING
-
1413170-47H00 CLAMPCLAMP
-
1502122-0616B SCREWSCREW
-
1609280-04004 O RINGO RING
-
1709493-32006 JET, OILJET, OIL
-
1809248-16012 PLUGPLUG
-
1909168-16009 WASHERWASHER
-
2013650-49X00 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
2109168-12017 GASKETGASKET
