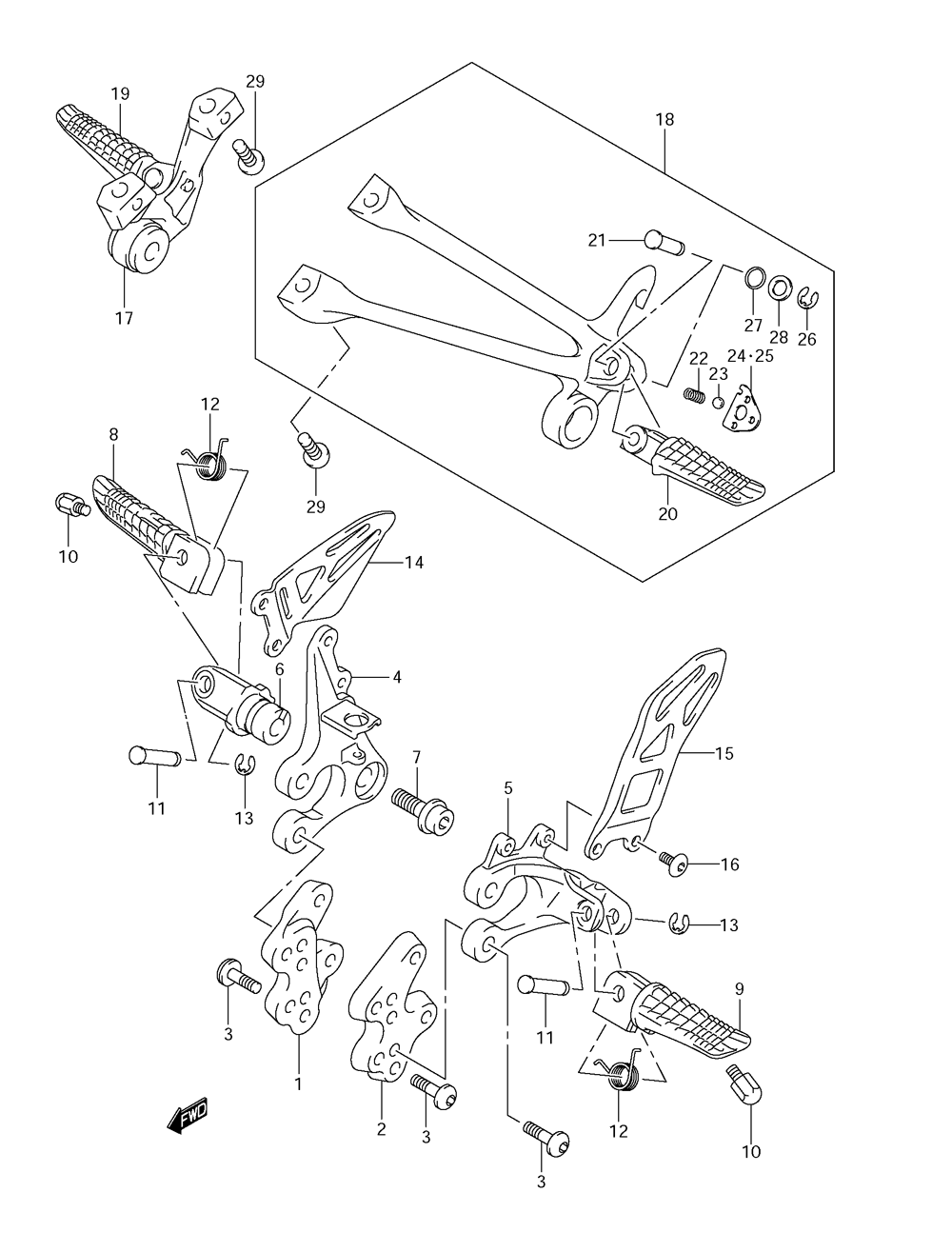

FOOTREST для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
143541-47H00 BRACKET, FRONT NO.1 RIGHT HANDBRACKET, FRONT NO.1 RIGHT HAND
-
243551-47H00 BRACKET, FRONT NO.1 LEFT HANDBRACKET, FRONT NO.1 LEFT HAND
-
309106-08186 BOLTBOLT
-
443511-47H00 BRACKET, FRONT NO.2 RIGHT HANDBRACKET, FRONT NO.2 RIGHT HAND
-
543521-47H00 BRACKET, FRONT NO.2 LEFT HANDBRACKET, FRONT NO.2 LEFT HAND
-
643531-41G10 HOLDER, FOOTREST RIGHT HANDHOLDER, FOOTREST RIGHT HAND
-
709106-10064 BOLT, RIGHT HANDBOLT, RIGHT HAND
-
843516-37H00 BAR, FOOTREST RIGHT HANDBAR, FOOTREST RIGHT HAND
-
943526-37H00 BAR, FOOTREST LEFT HANDBAR, FOOTREST LEFT HAND
-
1043576-48B02 BOLT, BANK SENSORBOLT, BANK SENSOR
-
1109208-08010 PINPIN
-
1209448-14037 SPRINGSPRING
-
1308332-1106A E RINGE RING
-
1443571-47H00 GUARD, FOOTREST RIGHT HANDGUARD, FOOTREST RIGHT HAND
-
1543576-47H00 GUARD, FOOTREST LEFT HANDGUARD, FOOTREST LEFT HAND
-
1643577-35F00 SCREW, LEFT HANDSCREW, LEFT HAND
-
1743600-47H00 FOOTREST ASSEMBLY, PILLION RIGHT HANDFOOTREST ASSEMBLY, PILLION RIGHT HAND
-
1843700-47H00 FOOTREST ASSEMBLY, PILLION LEFT HANDFOOTREST ASSEMBLY, PILLION LEFT HAND
-
1943611-37H00 ...BAR, RIGHT HAND...BAR, RIGHT HAND
-
2043621-37H00 ...BAR, LEFT HAND...BAR, LEFT HAND
-
2109208-08020 ...PIN...PIN
-
2209440-05005 ...SPRING...SPRING
-
2306111-07004 ...BALL...BALL
-
2443816-47H00 ...PLATE, RIGHT HAND...PLATE, RIGHT HAND
-
2543826-47H00 ...PLATE, LEFT HAND...PLATE, LEFT HAND
-
2608332-1106A ...E RING...E RING
-
2709280-08013 ...O RING...O RING
-
2809160-08091 ...WASHER...WASHER
-
2909106-08186 BOLTBOLT
