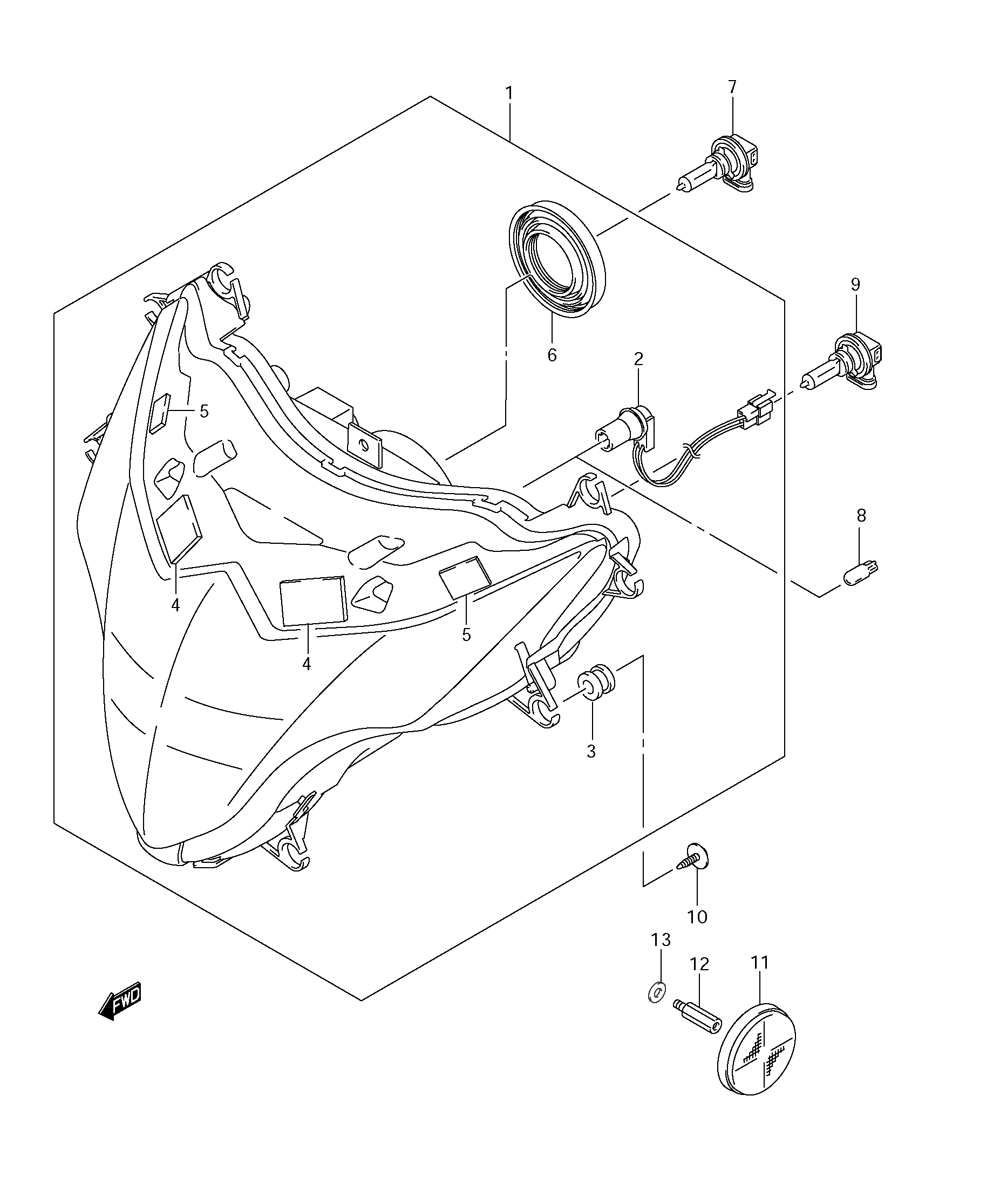

HEADLAMP для Suzuki GSX-R1000 K9 - 2009 года выпуска

№

Артикул

Название
1

35100-47H30-999 HEADLAMP ASSEMBLY

HEADLAMP ASSEMBLY
2

36118-29G50 ...CORD ASSEMBLY

...CORD ASSEMBLY
3

09320-09039 ...CUSHION

...CUSHION
4

44572-02F01 ...FASTENER, HEADLAMP LENS

...FASTENER, HEADLAMP LENS
5

44572-37H00 ...FASTENER, HEADLAMP LENS

...FASTENER, HEADLAMP LENS
6

35179-76F10 ...COVER, SOCKET

...COVER, SOCKET
7

09471-12210 BULB, 12V55W

BULB, 12V55W
8

09471-12216 BULB, 12V5W

BULB, 12V5W
9

09471-12222 BULB, 12V65W

BULB, 12V65W
10

09136-05062 SCREW, HEADLAMP

SCREW, HEADLAMP
11

35950-14A10 REFLEX REFLECTOR ASSEMBLY, FR SIDE

REFLEX REFLECTOR ASSEMBLY, FR SIDE
12

09119-06109 BOLT, FRONT SIDE REFLECTOR

BOLT, FRONT SIDE REFLECTOR
13

09160-08043 WASHER, FRONT SIDE RR

WASHER, FRONT SIDE RR
