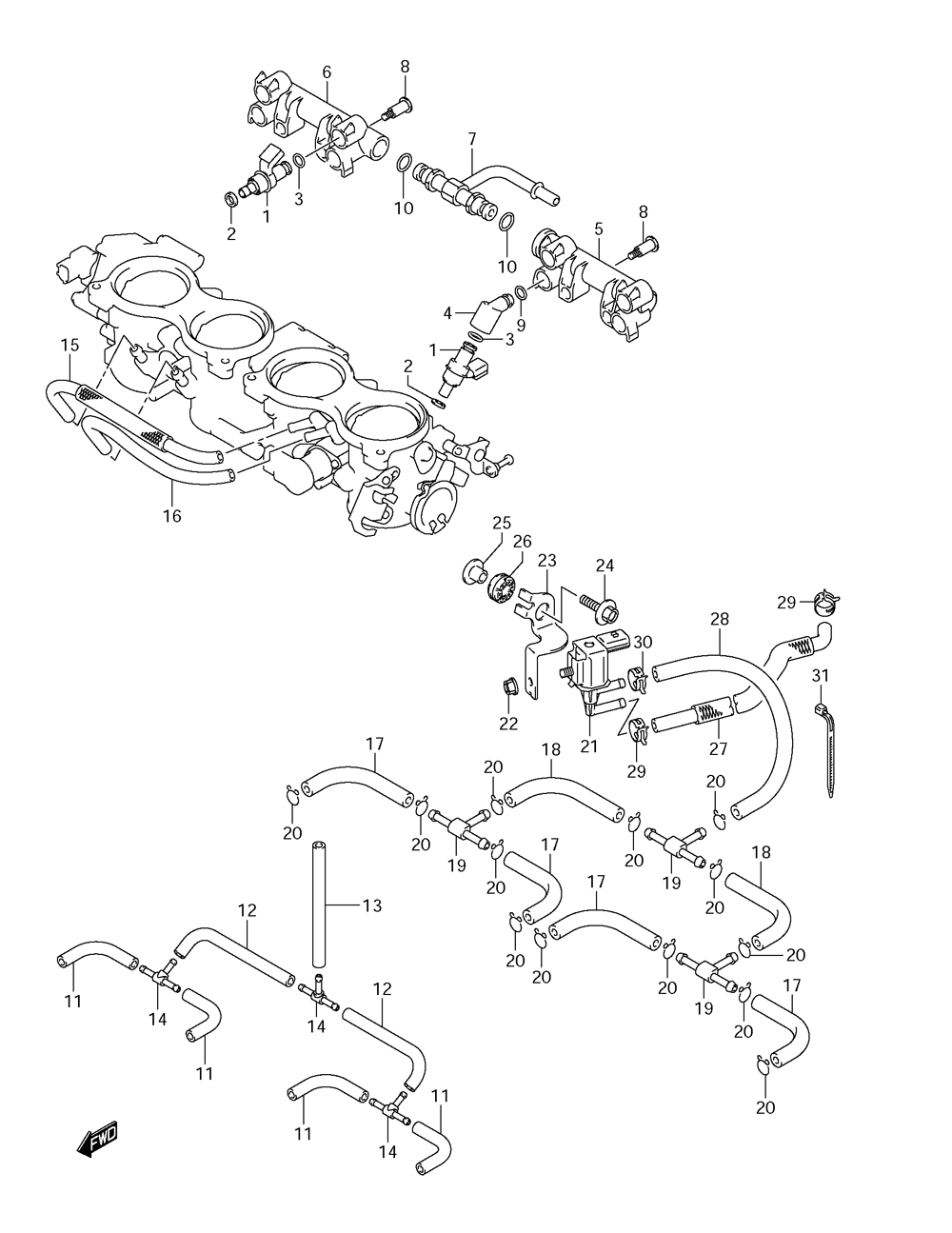

CARBURETOR - THROTTLE BODY FITTINGS для Suzuki GSX-R1000 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
115710-21H00 INJECTOR ASSEMBLYINJECTOR ASSEMBLY
-
215722-21H00 O RINGO RING
-
315721-21H00 O RINGO RING
-
413473-21H00 PIPE, FUELPIPE, FUEL
-
513474-47H00 PIPE, FUELPIPE, FUEL
-
613474-47H10 PIPE, FUELPIPE, FUEL
-
713473-15H00 PIPE, FUELPIPE, FUEL
-
813601-35F00 SCREWSCREW
-
915721-24F00 O RINGO RING
-
1015721-10G00 O RINGO RING
-
1113683-47H00 HOSE, RUBBER (LENGTH: 48)HOSE, RUBBER (LENGTH: 48)
-
1213683-47H10 HOSE, RUBBER (LENGTH: 92.5)HOSE, RUBBER (LENGTH: 92.5)
-
1313697-24F20 HOSE, RUBBER (LENGTH: 100)HOSE, RUBBER (LENGTH: 100)
-
1413471-24F30 T JOINTT JOINT
-
1513680-21H10 TUBE, RUBBERTUBE, RUBBER
-
1613698-21H00 TUBE, RUBBERTUBE, RUBBER
-
1713683-21H10 HOSE (FOR CALF. ONLY)HOSE (FOR CALF. ONLY)
-
1813683-21H20 HOSE (FOR CALF. ONLY)HOSE (FOR CALF. ONLY)
-
1913685-36E50 JOINT (FOR CALF. ONLY)JOINT (FOR CALF. ONLY)
-
2013693-24F00 CLIP (FOR CALF. ONLY)CLIP (FOR CALF. ONLY)
-
2118117-52G10 VALVE, CANISTER PURGE (FOR CALF. ONLY)VALVE, CANISTER PURGE (FOR CALF. ONLY)
-
2208316-1006A NUT (FOR CALF. ONLY)NUT (FOR CALF. ONLY)
-
2313165-47H00 BRACKET (FOR CALF. ONLY)BRACKET (FOR CALF. ONLY)
-
2409116-06171 BOLT (FOR CALF. ONLY)BOLT (FOR CALF. ONLY)
-
2509180-06319 SPACER (FOR CALF. ONLY)SPACER (FOR CALF. ONLY)
-
2609320-10055 CUSHION (FOR CALF. ONLY)CUSHION (FOR CALF. ONLY)
-
2713680-47H00 HOSE (FOR CALF. ONLY)HOSE (FOR CALF. ONLY)
-
2813683-15H00 HOSE (FOR CALF. ONLY)HOSE (FOR CALF. ONLY)
-
2909401-11413 CLIP (FOR CALF. ONLY)CLIP (FOR CALF. ONLY)
-
3009401-10411 CLIP (FOR CALF. ONLY)CLIP (FOR CALF. ONLY)
-
3109407-14403 CLAMP (FOR CALF. ONLY)CLAMP (FOR CALF. ONLY)
