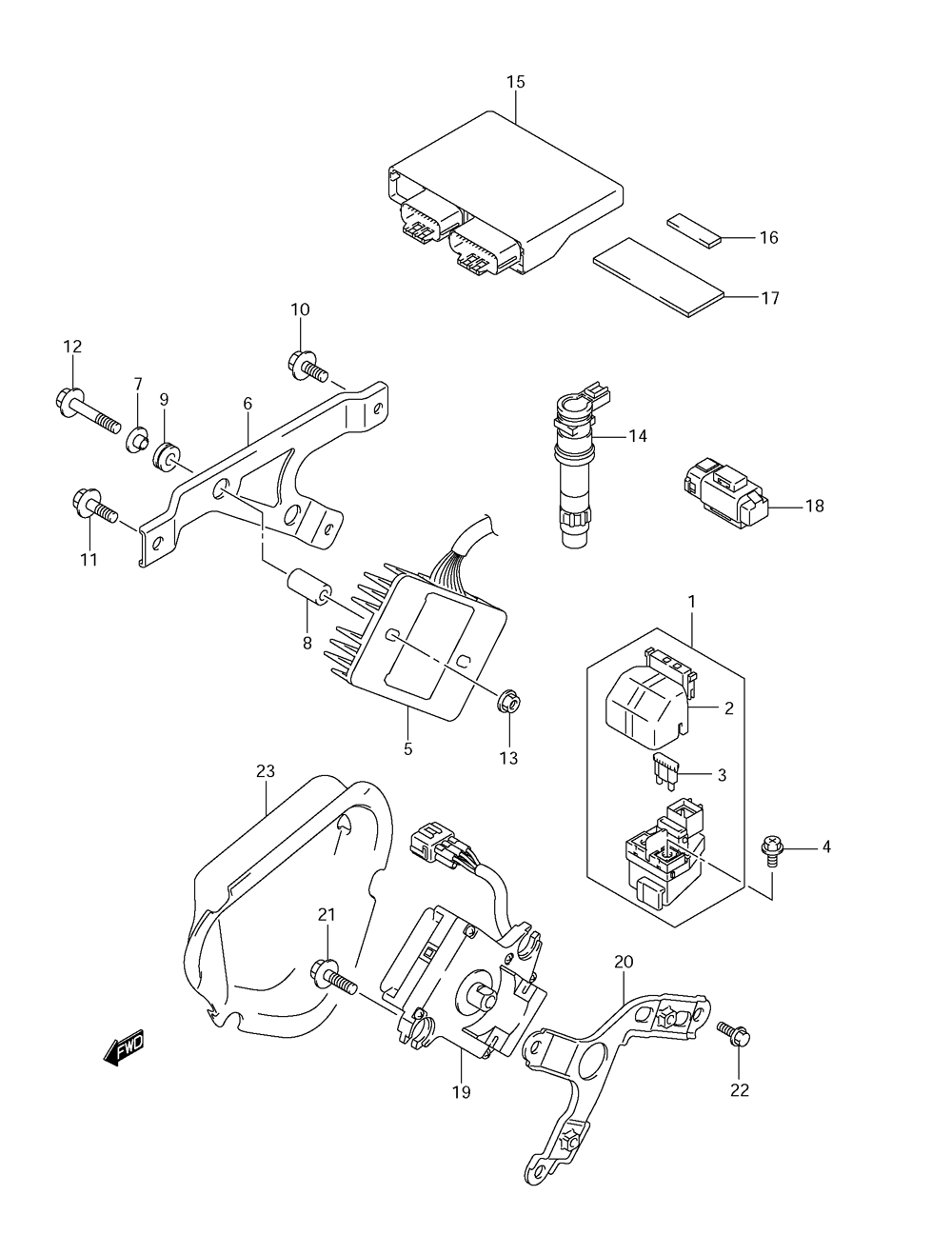

ELECTRICAL для Suzuki GSX-R1000 K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    31800-41G10 RELAY ASSEMBLY, STARTING MOTOR
    RELAY ASSEMBLY, STARTING MOTOR
  • 2
    31861-38G00 ...COVER
    ...COVER
  • 3
    09481-30501 ...FUSE, 30A
    ...FUSE, 30A
  • 4
    09128-06013 BOLT, STARTING MOTOR 6X8
    BOLT, STARTING MOTOR 6X8
  • 5
    32800-47H00 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 6
    32831-47H10 BRACKET, RECT FTG
    BRACKET, RECT FTG
  • 7
    09180-06325 SPACER, RECT FTG BRACKET 6.2X8.4X6.9
    SPACER, RECT FTG BRACKET 6.2X8.4X6.9
  • 8
    09180-06345 SPACER, RECTIFIER 6.2X14.5X26
    SPACER, RECTIFIER 6.2X14.5X26
  • 9
    09320-08066 CUSHION, RECT FTG BRACKET
    CUSHION, RECT FTG BRACKET
  • 10
    01550-0616A BOLT, RECT FTG BRACKET
    BOLT, RECT FTG BRACKET
  • 11
    01550-0620A BOLT, RECTIFIER
    BOLT, RECTIFIER
  • 12
    01550-0645A BOLT, RECTIFIER
    BOLT, RECTIFIER
  • 13
    08316-1006A NUT, RECTIFIER
    NUT, RECTIFIER
  • 14
    33410-47H00 COIL ASSEMBLY, IGNITION
    COIL ASSEMBLY, IGNITION
  • 15
    32920-47H10 CONTROL UNIT, FI (EXCEPT CALF.)
    CONTROL UNIT, FI (EXCEPT CALF.)
  • 15
    32920-47H20 CONTROL UNIT, FI (FOR CALF. ONLY)
    CONTROL UNIT, FI (FOR CALF. ONLY)
  • 16
    33652-23H20 CUSHION, FI CONTROL UNIT
    CUSHION, FI CONTROL UNIT
  • 17
    33652-07D00 CUSHION, FI CONTROL UNIT
    CUSHION, FI CONTROL UNIT
  • 18
    33960-27G00 SENSOR ASSEMBLY, FUEL CUT
    SENSOR ASSEMBLY, FUEL CUT
  • 19
    33970-47H00 ACTUATOR ASSEMBLY, EXHAUST
    ACTUATOR ASSEMBLY, EXHAUST
  • 20
    33971-47H00 HOLDER, ACTUATOR
    HOLDER, ACTUATOR
  • 21
    09116-06202 BOLT, ACTUATOR 6X25
    BOLT, ACTUATOR 6X25
  • 22
    01547-0612A BOLT, ACTR HLDR
    BOLT, ACTR HLDR
  • 23
    33977-47H00 COVER, ACTUATOR
    COVER, ACTUATOR
