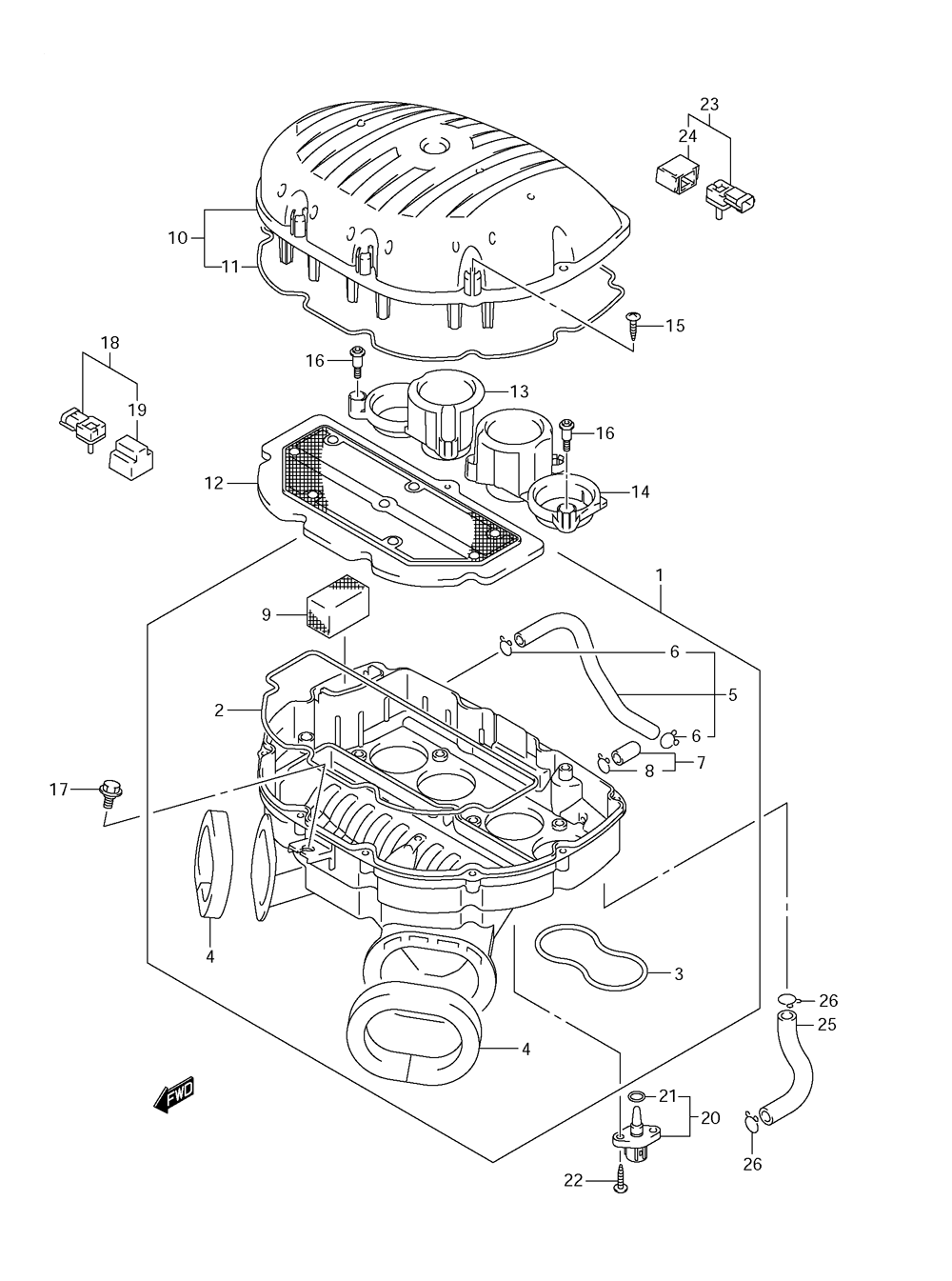

AIR CLEANER для Suzuki GSX-R1000 K9 - 2009 года выпуска

№

Артикул

Название
1

13720-47H00 CASE, AIR CLEANER

CASE, AIR CLEANER
2

13756-47H00 ...GASKET, CASE

...GASKET, CASE
3

13757-47H00 ...GASKET, CASE

...GASKET, CASE
4

13736-01H00 ...CUSHION, DUCT

...CUSHION, DUCT
5

13850-47H00 ...TUBE, BREATHER

...TUBE, BREATHER
6

09401-14101 ......CLIP

......CLIP
7

13856-19B03 ...PLUG ASSEMBLY, DRAIN

...PLUG ASSEMBLY, DRAIN
8

09401-14101 ......CLIP

......CLIP
9

13788-47H00 ...FILTER, BREATHER

...FILTER, BREATHER
10

13740-47H00 CAP, AIR CLEANER

CAP, AIR CLEANER
11

13746-47H00 ...GASKET, CAP

...GASKET, CAP
12

13780-47H00 FILTER ASSEMBLY

FILTER ASSEMBLY
13

13881-47H00 FUNNEL, OUTLET RIGHT HAND

FUNNEL, OUTLET RIGHT HAND
14

13882-47H00 FUNNEL, OUTLET LEFT HAND

FUNNEL, OUTLET LEFT HAND
15

03541-0525B SCREW

SCREW
16

13831-47H00 BOLT

BOLT
17

09111-06089 BOLT

BOLT
18

15630-29G20 SENSOR, BOOST

SENSOR, BOOST
19

15625-29G10 ...COVER

...COVER
20

13650-14G11 SENSOR, AIR TEMPERATURE

SENSOR, AIR TEMPERATURE
21

13655-14G10 ...O RING

...O RING
22

03511-0516A BOLT

BOLT
23

15630-29G10 SENSOR, AIR PRESSURE

SENSOR, AIR PRESSURE
24

15625-29G00 ...COVER

...COVER
25

13697-47H00 HOSE, ISC VALVE

HOSE, ISC VALVE
26

09401-15101 CLIP

CLIP
