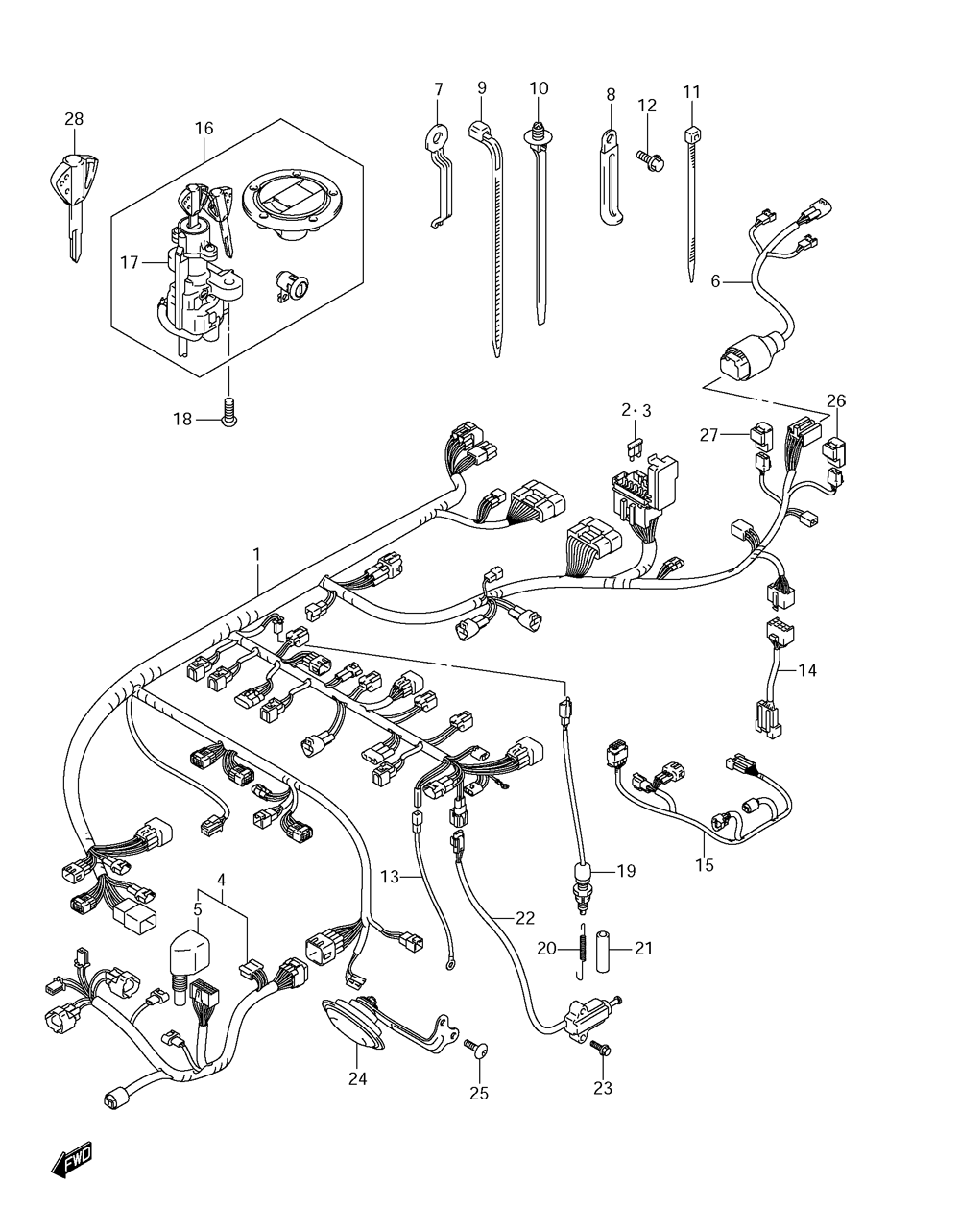

ELECTRICAL - WIRING HARNESS для Suzuki GSX-R1000 K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    36610-47H30 HARNESS, WIRING NO.1 (EXCEPT CALF.)
    HARNESS, WIRING NO.1 (EXCEPT CALF.)
  • 1
    36610-47H40 HARNESS, WIRING NO.1 (FOR CALF. ONLY)
    HARNESS, WIRING NO.1 (FOR CALF. ONLY)
  • 2
    09481-10501 ...FUSE (10A)
    ...FUSE (10A)
  • 3
    09481-15501 ...FUSE (15A)
    ...FUSE (15A)
  • 4
    36620-47H00 HARNESS, WIRING NO.2
    HARNESS, WIRING NO.2
  • 5
    36618-47H00 ...COVER, CONNECTOR
    ...COVER, CONNECTOR
  • 6
    36855-47H00 WIRE, REAR COMBINATION
    WIRE, REAR COMBINATION
  • 7
    09403-06322 GUIDE, WIRING HARNESS
    GUIDE, WIRING HARNESS
  • 8
    09404-06429 CLAMP (LENGTH: 45)
    CLAMP (LENGTH: 45)
  • 9
    09407-14403 CLAMP (LENGTH: 125)
    CLAMP (LENGTH: 125)
  • 9
    09407-18402 CLAMP (LENGTH: 165)
    CLAMP (LENGTH: 165)
  • 9
    09407-19401 CLAMP (LENGTH: 190)
    CLAMP (LENGTH: 190)
  • 10
    09407-17403 CLAMP (LENGTH: 154)
    CLAMP (LENGTH: 154)
  • 11
    09407-14407 CLAMP (LENGTH: 145)
    CLAMP (LENGTH: 145)
  • 12
    01547-0612A BOLT, WIRING HARNESS CLAMP
    BOLT, WIRING HARNESS CLAMP
  • 13
    36851-47H00 WIRE, OIL PRESSURE SWITCH
    WIRE, OIL PRESSURE SWITCH
  • 14
    36857-47H00 WIRE, RELAY LEAD
    WIRE, RELAY LEAD
  • 15
    36859-47H00 WIRE, ISC LEAD
    WIRE, ISC LEAD
  • 16
    37101-40821 LOCK SET (EXCEPT CALF.)
    LOCK SET (EXCEPT CALF.)
  • 16
    37101-40841 LOCK SET (FOR CALF. ONLY)
    LOCK SET (FOR CALF. ONLY)
  • 17
    37100-41G11 LOCK ASSEMBLY, STEERING
    LOCK ASSEMBLY, STEERING
  • 18
    09139-08016 BOLT, STEERING LOCK
    BOLT, STEERING LOCK
  • 19
    37740-31D00 SWITCH ASSEMBLY, STOP LAMP
    SWITCH ASSEMBLY, STOP LAMP
  • 20
    09443-06087 SPRING, BRAKE LAMP SWITCH
    SPRING, BRAKE LAMP SWITCH
  • 21
    09352-50823-600 HOSE (5X8.2X600) (LENGTH: 60) CUT AS REQUIRED
    HOSE (5X8.2X600) (LENGTH: 60) CUT AS REQUIRED
  • 22
    37840-20E00 SWITCH ASSEMBLY, SIDE STAND
    SWITCH ASSEMBLY, SIDE STAND
  • 23
    01547-0620B BOLT, SIDE STAND SWITCH
    BOLT, SIDE STAND SWITCH
  • 24
    38500-47H00 HORN ASSEMBLY
    HORN ASSEMBLY
  • 25
    09139-06109 BOLT (6X16)
    BOLT (6X16)
  • 26
    38740-24X50 RELAY ASSEMBLY, FUEL PUMP
    RELAY ASSEMBLY, FUEL PUMP
  • 27
    38740-24X50 RELAY ASSEMBLY, FAN MOTOR
    RELAY ASSEMBLY, FAN MOTOR
  • 28
    37146-41G00 KEY, BLANK (OPTIONAL)
    KEY, BLANK (OPTIONAL)
