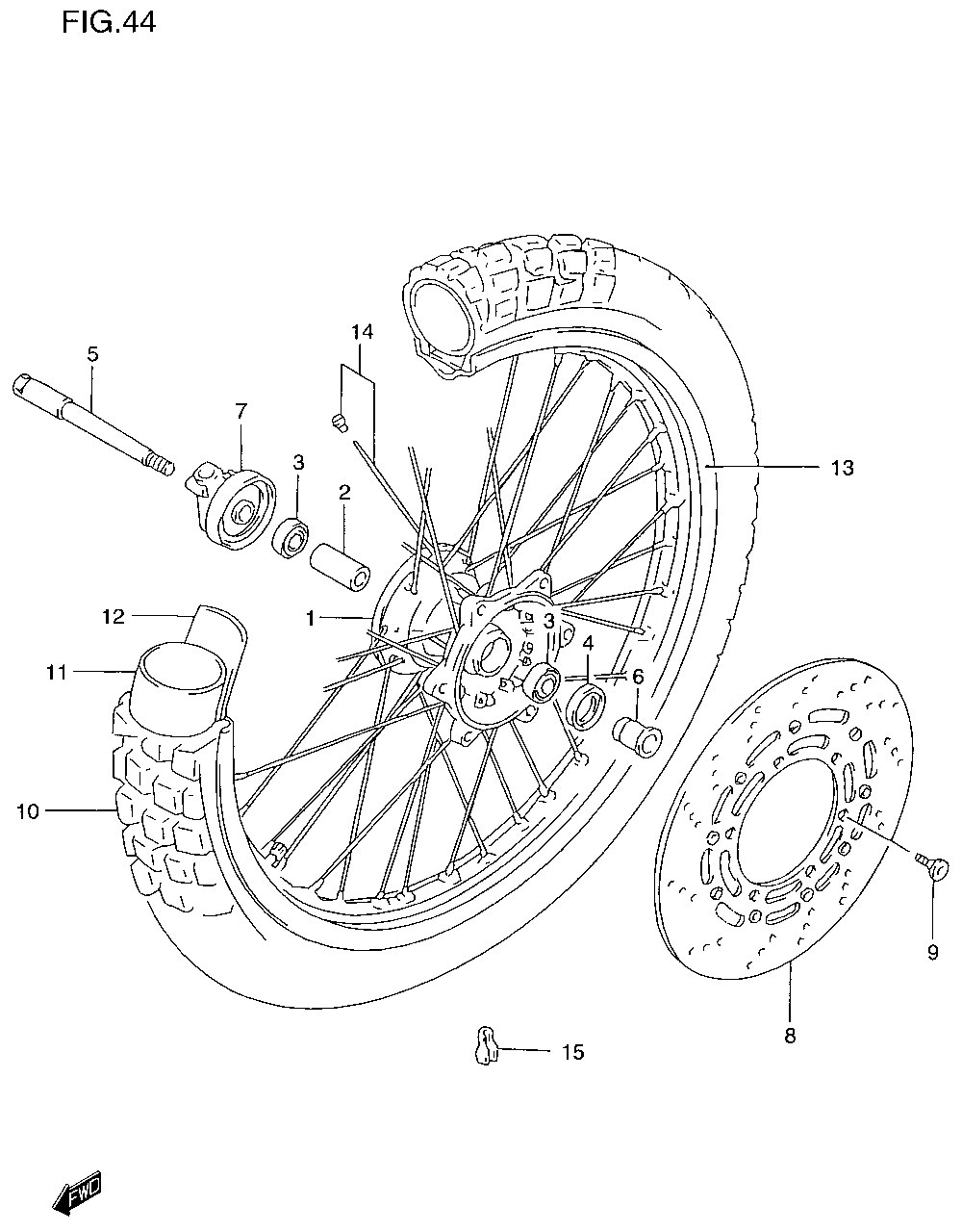

WHEEL - FRONT ASSY. для Suzuki DR650SEY - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    54111-31D01 HUB, WHEEL (FRONT)
    HUB, WHEEL (FRONT)
  • 2
    54731-32E00 SPACER, HUB (FRONT)
    SPACER, HUB (FRONT)
  • 3
    08123-60037 BEARING
    BEARING
  • 4
    09284-23001 SEAL, HUB (LEFT) (23X35X6)
    SEAL, HUB (LEFT) (23X35X6)
  • 5
    54711-05D01 AXLE (FRONT)
    AXLE (FRONT)
  • 6
    54751-05D00 SPACER, AXLE (LEFT)
    SPACER, AXLE (LEFT)
  • 7
    54600-05D00 BOX ASSY., SPEEDOMETER GEAR
    BOX ASSY., SPEEDOMETER GEAR
  • 8
    59220-32E00 DISC, BRAKE (FRONT)
    DISC, BRAKE (FRONT)
  • 9
    59421-03A10 BOLT (8X20)
    BOLT (8X20)
  • 10
    55110-32E00 TIRE (FRONT) (90/90-21 54S) (BRIDGESTONE)
    TIRE (FRONT) (90/90-21 54S) (BRIDGESTONE)
  • 11
    55200-32E00 TUBE ASSY., WHEEL (INNER)
    TUBE ASSY., WHEEL (INNER)
  • 12
    55261-32E00 PROTECTOR, TUBE (INNER)
    PROTECTOR, TUBE (INNER)
  • 13
    55311-44B00 RIM, WHEEL (FRONT) (1.85X21)
    RIM, WHEEL (FRONT) (1.85X21)
  • 14
    55320-31D00 SPOKE SET, WHEEL (FRONT)
    SPOKE SET, WHEEL (FRONT)
  • 15-1
    55412-38A00 BALANCER, WHEEL (20G) (OPT)
    BALANCER, WHEEL (20G) (OPT)
  • 15-2
    55413-38A00 BALANCER, WHEEL (30G) (OPT)
    BALANCER, WHEEL (30G) (OPT)
