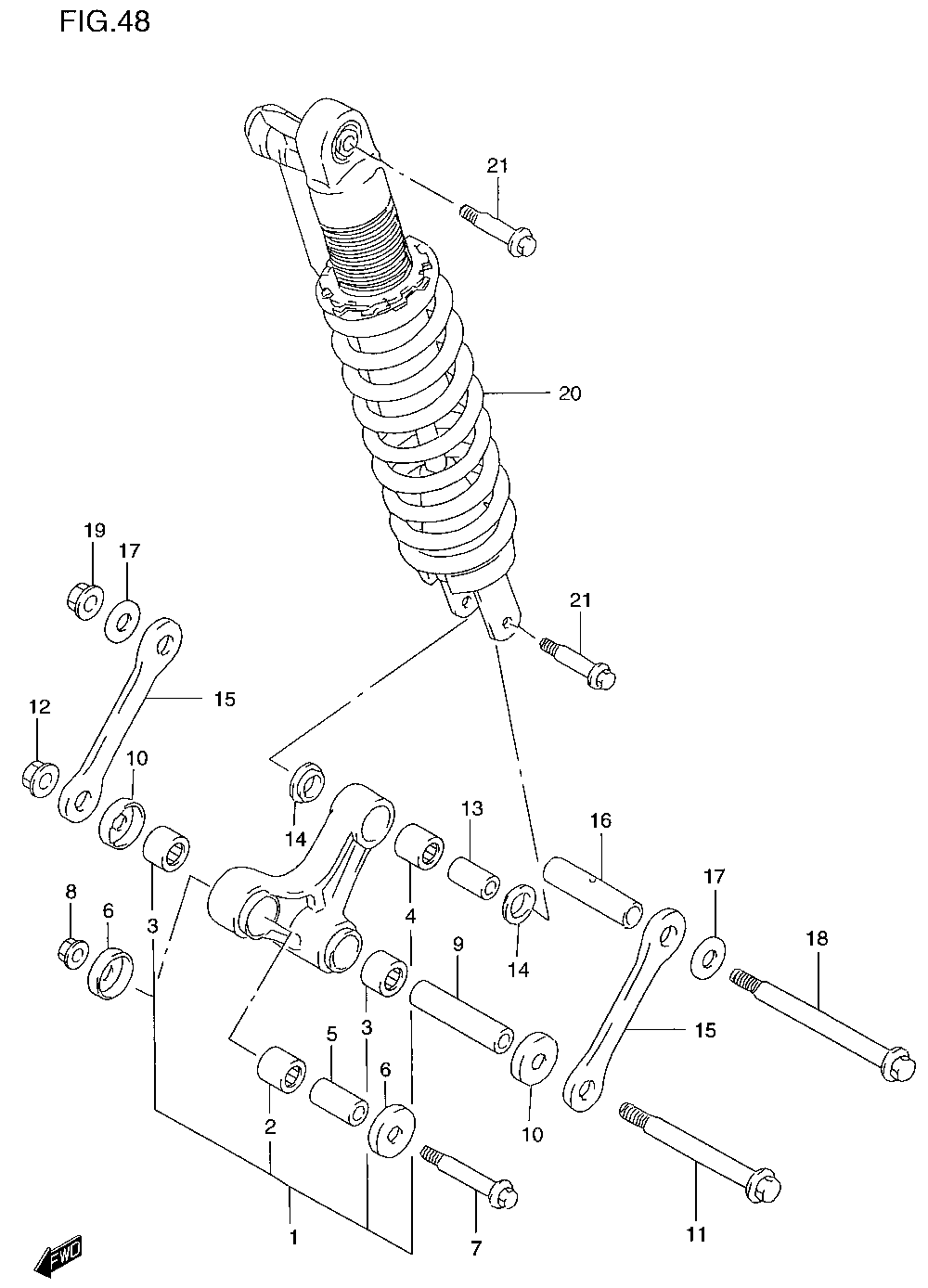

SUSPENSION - CUSHION LEVER для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
162600-32840 LEVER SET, CUSHION (REAR)LEVER SET, CUSHION (REAR)
-
209263-20073 ...BEARING (FRONT) (20X27X30)...BEARING (FRONT) (20X27X30)
-
309263-21012 ...BEARING (21X27X20)...BEARING (21X27X20)
-
409263-17027 ...BEARING (REAR) (17X24X20)...BEARING (REAR) (17X24X20)
-
562317-27C10 SPACER (FRONT) (12X20X34)SPACER (FRONT) (12X20X34)
-
662162-28E00 SEAL, DUST (FRONT)SEAL, DUST (FRONT)
-
762658-01C60 BOLT (FRONT) (12X65)BOLT (FRONT) (12X65)
-
808319-31128 NUTNUT
-
962626-13E00 SPACER (CENTER) (15X21X74)SPACER (CENTER) (15X21X74)
-
1062682-13E00 SEAL DUST (CENTER)SEAL DUST (CENTER)
-
1162621-27C20 BOLT (CENTER) (14X109)BOLT (CENTER) (14X109)
-
1208319-31148 NUTNUT
-
1362684-40A10 SPACER (REAR) (10X17X30)SPACER (REAR) (10X17X30)
-
1462624-13E00 SEAL, DUST (REAR)SEAL, DUST (REAR)
-
1562641-32E00 ROD, CUSHION LEVER (REAR)ROD, CUSHION LEVER (REAR)
-
1662626-14D00 SPACER, ROD (14X20X74)SPACER, ROD (14X20X74)
-
1708211-14321 WASHERWASHER
-
1862621-17C00 BOLT, ROD (14X112)BOLT, ROD (14X112)
-
1908319-31148 NUTNUT
-
2062100-32E00-163 ABSORBER ASSY., SHOCK (REAR/YELLOW)ABSORBER ASSY., SHOCK (REAR/YELLOW)
-
2162648-14500 BOLT (10X48)BOLT (10X48)
