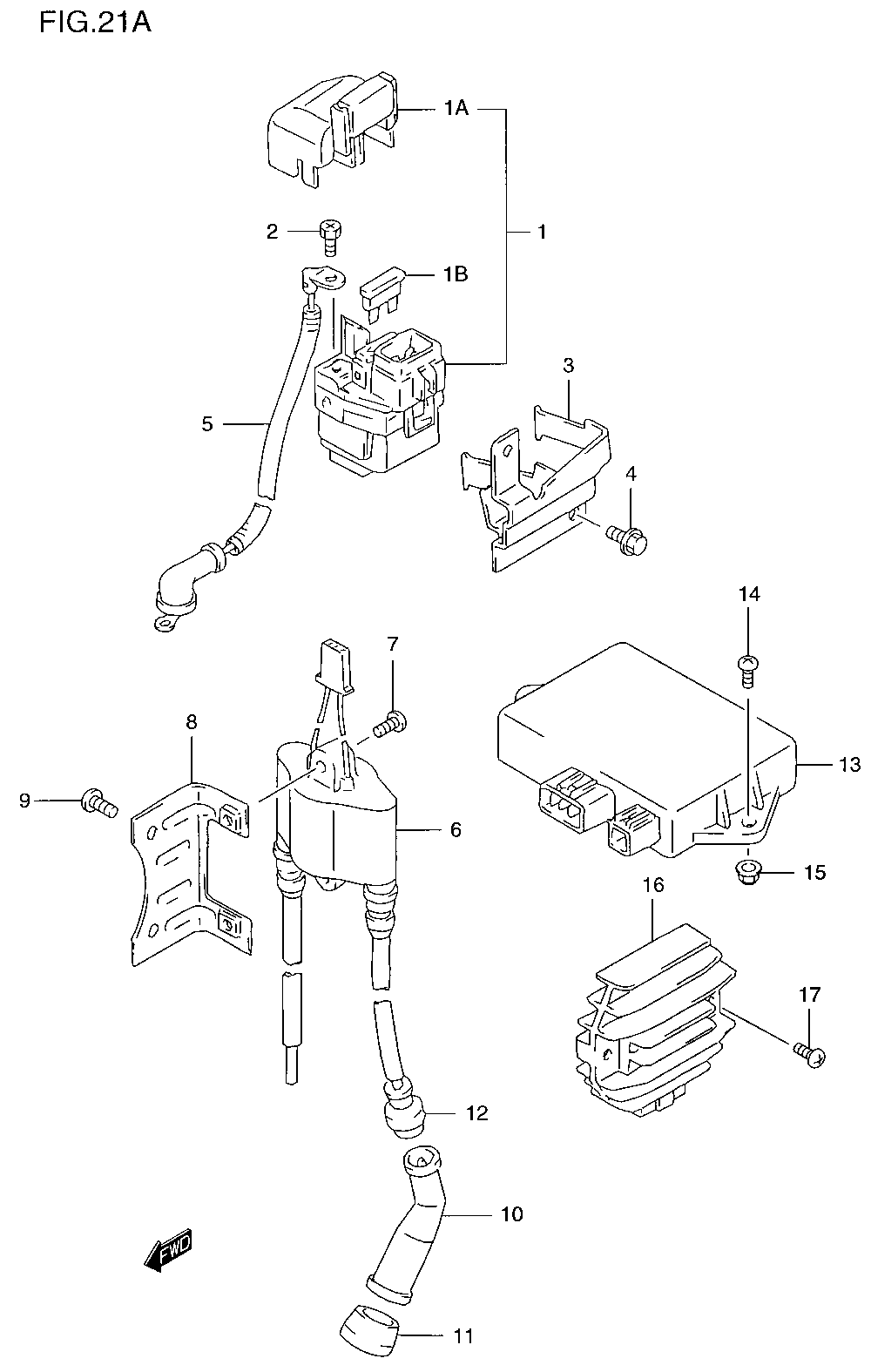

ELECTRICAL для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
131800-26E00 RELAY ASSY., STARTING MOTORRELAY ASSY., STARTING MOTOR
-
1A31861-26E00 ...COVER ASSY....COVER ASSY.
-
1B09481-30101 ...FUSE (30A)...FUSE (30A)
-
209128-06013 BOLT (6X8)BOLT (6X8)
-
331890-32E00 BRACKET, STARTING MOTOR RELAYBRACKET, STARTING MOTOR RELAY
-
409103-06078 BOLT, STARTING MOTORBOLT, STARTING MOTOR
-
533810-32E00 LEAD WIRE, STARTING MOTORLEAD WIRE, STARTING MOTOR
-
633410-32E00 COIL ASSY., IGNITIONCOIL ASSY., IGNITION
-
702142-06253 SCREW, IGNITION COILSCREW, IGNITION COIL
-
833416-32E00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
902142-06103 SCREW, BRACKETSCREW, BRACKET
-
1033510-43010 CAP, SPARK PLUG (OUTER)CAP, SPARK PLUG (OUTER)
-
1133541-47D00 SEAL, PLUGSEAL, PLUG
-
1233542-38B00 SEAL, HIGHTENSION CORDSEAL, HIGHTENSION CORD
-
13-232900-32E10 CDI UNITCDI UNIT
-
1402142-06203 SCREWSCREW
-
1508319-31063 NUT, CDI UNITNUT, CDI UNIT
-
1632800-32E00 RECTIFIER ASSY.RECTIFIER ASSY.
-
1702142-06203 SCREWSCREW
