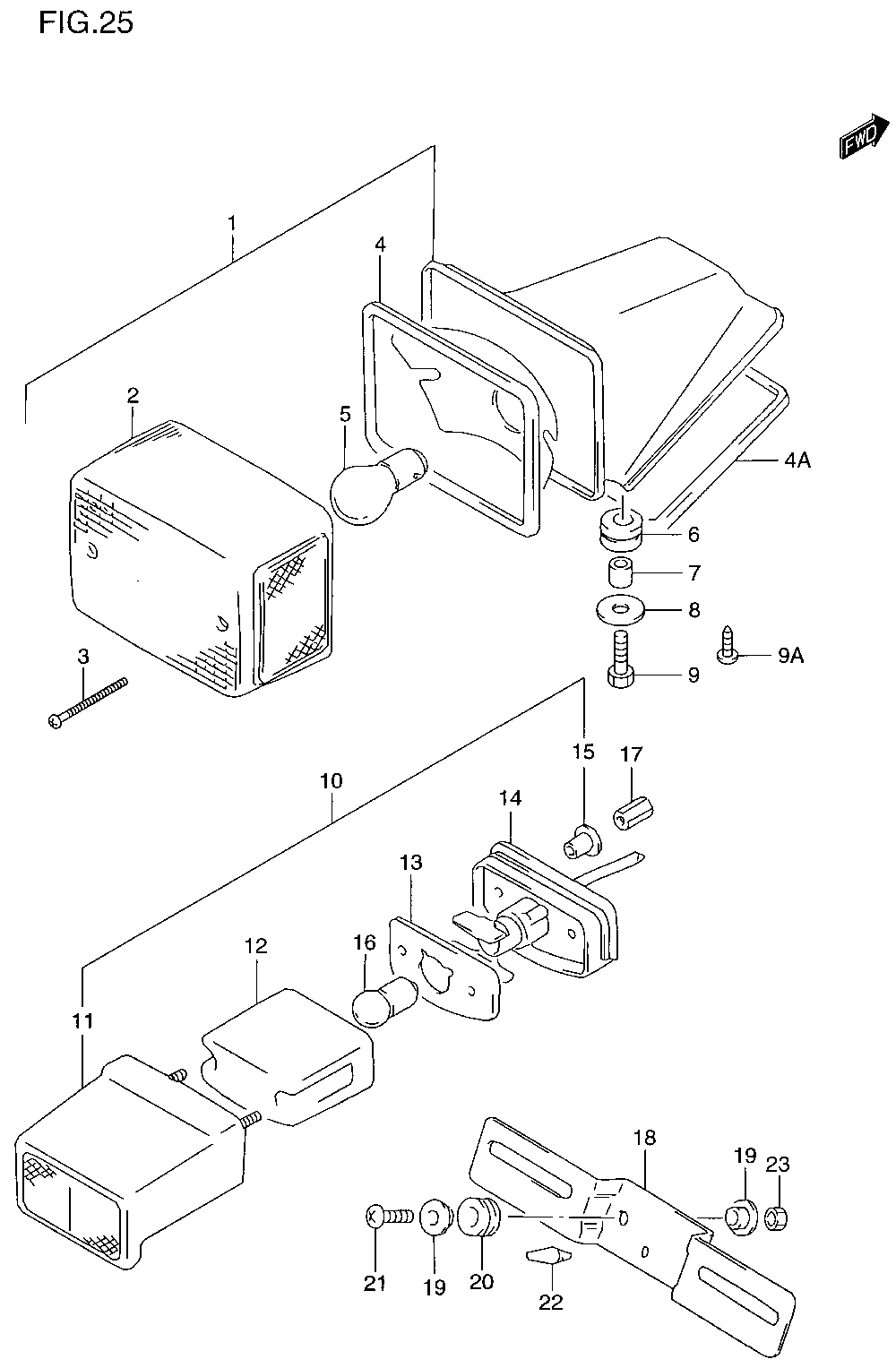

TAILLIGHT ASSY. для Suzuki DR650SEY - 2000 года выпуска

№

Артикул

Название
1

35710-32E30 LAMP ASSY., TAIL

LAMP ASSY., TAIL
2

35712-14D30 ...LENS

...LENS
3

09125-04501 ...SCREW (4X45)

...SCREW (4X45)
4

35713-14D30 ...GASKET (FOR LENS)

...GASKET (FOR LENS)
4A

35717-32E30 ...GASKET (FOR BASE)

...GASKET (FOR BASE)
5

09471-12083 ...BULB (12V,21/5W)

...BULB (12V,21/5W)
6

09320-09016 CUSHION

CUSHION
7-2

09180-06248 SPACER (6.1X8X9.5)

SPACER (6.1X8X9.5)
8

09160-06088 WASHER

WASHER
9A

02142-06253 SCREW

SCREW
10

35910-32E30 LAMP ASSY., LICENSE

LAMP ASSY., LICENSE
11

35917-17C00 ...COVER, LENS

...COVER, LENS
12

35912-38A30 ...LENS

...LENS
13

35913-38A30 ...GASKET

...GASKET
14

35761-24B31 ...CUSHION

...CUSHION
15

35766-24B30 ...SPACER

...SPACER
16

09471-12140 ...BULB (12V,5W)

...BULB (12V,5W)
17

09140-04006 NUT, LICENSE LAMP

NUT, LICENSE LAMP
18

35927-26E30 BRACKET, LICENSE PLATE

BRACKET, LICENSE PLATE
19

09169-06073 WASHER

WASHER
20

09320-09016 CUSHION

CUSHION
21

02142-06253 SCREW, BRACKET

SCREW, BRACKET
22

09321-06023 CUSHION

CUSHION
23

08310-00063 NUT

NUT
