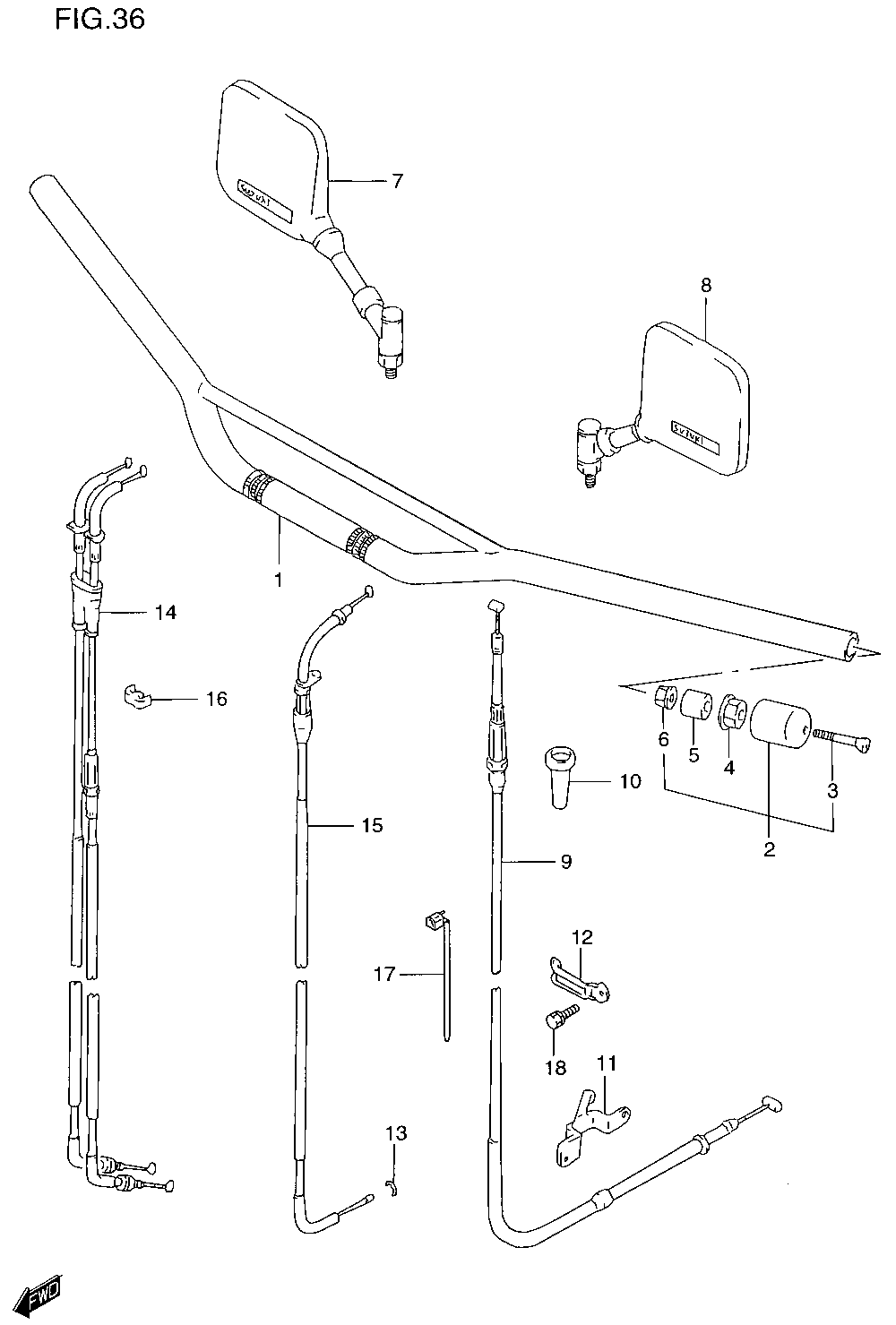

HANDLEBAR W/ CABLES для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
156110-32E00-291 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
256200-32821 BALANCER SETBALANCER SET
-
302122-06803 ...SCREW...SCREW
-
408316-10083 ...NUT...NUT
-
556272-44500 ...EXPANDER...EXPANDER
-
609159-06024 ...NUT...NUT
-
756500-12D02 MIRROR ASSY, VIEW (REAR/RIGHT)MIRROR ASSY, VIEW (REAR/RIGHT)
-
856600-12D02 MIRROR ASSY, REAR VIEW (REAR/LEFT)MIRROR ASSY, REAR VIEW (REAR/LEFT)
-
9-258200-32E01 CABLE ASSY., CLUTCHCABLE ASSY., CLUTCH
-
1058273-31000 BOOT, CLUTCH CABLEBOOT, CLUTCH CABLE
-
1158634-32E00 STOPPER, CABLESTOPPER, CABLE
-
1209403-09307 CLAMPCLAMP
-
1308332-11033 E-RINGE-RING
-
1458300-32E00 CABLE ASSY., THROTTLECABLE ASSY., THROTTLE
-
1558410-32E00 CABLE ASSY., STARTERCABLE ASSY., STARTER
-
1609408-00066 CLIPCLIP
-
1709407-25401 CLAMPCLAMP
-
1801550-06123 BOLT, CLAMPBOLT, CLAMP
-
1956524-28600 CAPCAP
