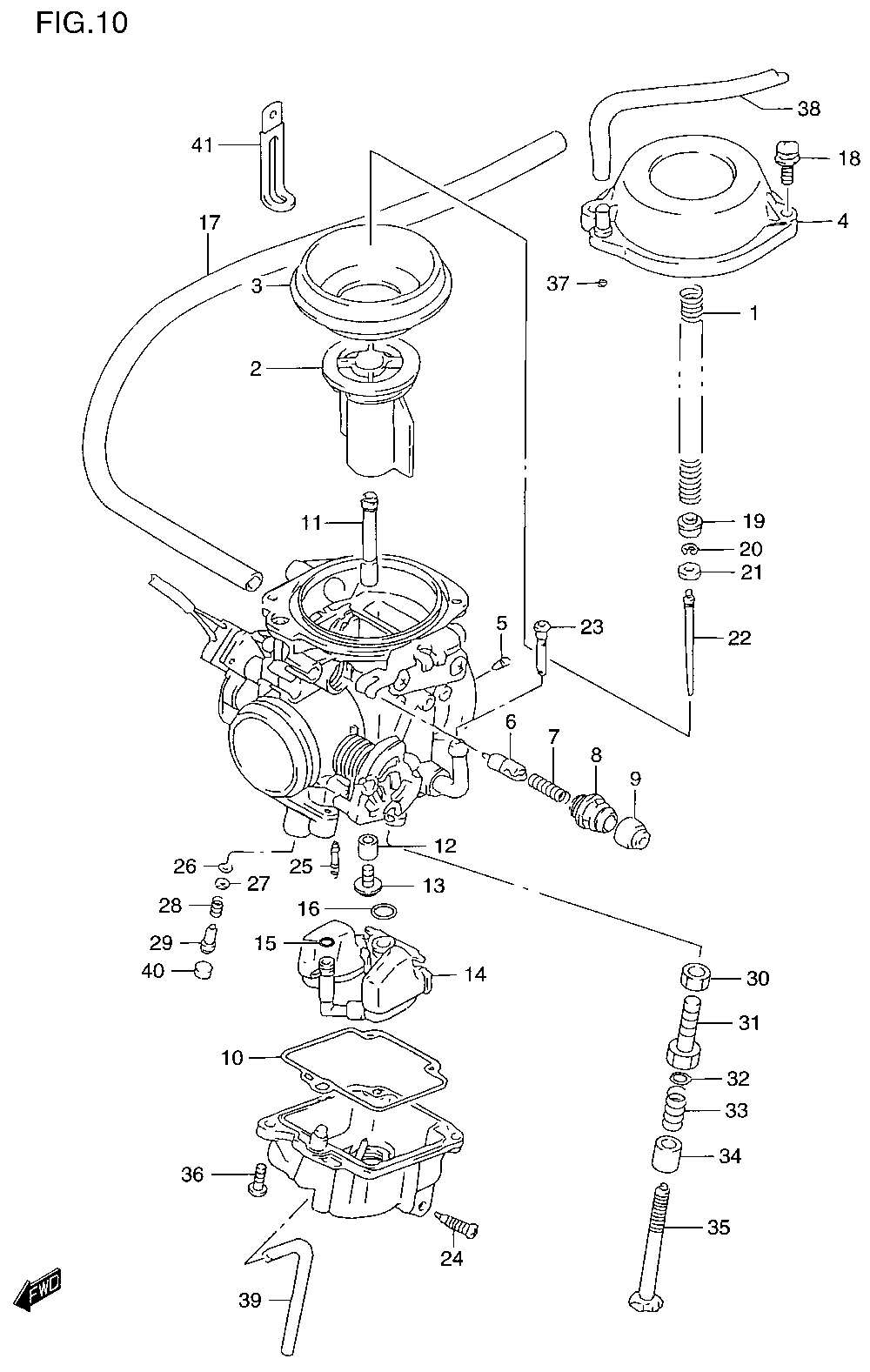

CARBURETOR для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
1A13200-32E11 CARBURETOR ASSY. (EXCEPT CALIF)CARBURETOR ASSY. (EXCEPT CALIF)
-
1A13200-32E61 CARBURETOR ASSY. (CALIF. ONLY)CARBURETOR ASSY. (CALIF. ONLY)
-
113417-17D00 ...SPRING...SPRING
-
213501-32E00 ...VALVE, PISTON...VALVE, PISTON
-
313507-07D01 ...DIAPHRAGM...DIAPHRAGM
-
413502-41C00 ...COVER, DIAPHRAGM...COVER, DIAPHRAGM
-
509493-20007 ...JET, PILOT AIR (1.0)...JET, PILOT AIR (1.0)
-
613411-12D00 ...PLUNGER ASSY...PLUNGER ASSY
-
713417-22010 ...SPRING...SPRING
-
813418-43410 ...HOLDER, GUIDE...HOLDER, GUIDE
-
913681-04010 ...CAP...CAP
-
1013258-44B00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
11-109494-00884 ...JET, NEEDLE (Y-5M) (USA)...JET, NEEDLE (Y-5M) (USA)
-
1213331-07D00 ...RING...RING
-
1309491-28010 ...JET, MAIN #140...JET, MAIN #140
-
1413250-12E00 ...FLOAT/NEEDLE VALVE ASSY....FLOAT/NEEDLE VALVE ASSY.
-
1513374-46710 ...O-RING...O-RING
-
1613374-44080 ...O-RING...O-RING
-
1713683-32E00 ...HOSE (6.5X10.5X275)...HOSE (6.5X10.5X275)
-
1802112-75163 ...SCREW...SCREW
-
1913331-12D00 ...RING...RING
-
2013394-31210 ...E RING...E RING
-
2113387-07D00 ...RING...RING
-
22-113383-32E10 ...NEEDLE, JET (6F23-1) (USA)...NEEDLE, JET (6F23-1) (USA)
-
2313236-12C00 ...FILTER...FILTER
-
2413247-13A00 ...SCREW, DRAIN...SCREW, DRAIN
-
2509492-42010 ...JET, PILOT #42.5...JET, PILOT #42.5
-
2613295-29900 ...O-RING...O-RING
-
2713291-29900 ...WASHER...WASHER
-
2813268-47070 ...SPRING...SPRING
-
2913279-47070 ...SCREW, PILOT (1,1/2)...SCREW, PILOT (1,1/2)
-
3013607-37010 ...NUT...NUT
-
3113267-31D00 ...ADJUSTER...ADJUSTER
-
3213615-43010 ...WASHER...WASHER
-
3313271-33C00 ...SPRING...SPRING
-
3413432-95210 ...RING...RING
-
3513267-31D10 ...ADJUSTER...ADJUSTER
-
3613601-05148 ...SCREW...SCREW
-
3713278-02340 ...O-RING...O-RING
-
38-209355-45855-600 ...HOSE (4.5X8.5X600) (L:600R250) (EXCEPT CALIF)...HOSE (4.5X8.5X600) (L:600R250) (EXCEPT CALIF)
-
39-213684-32E00 ...HOSE (3X5X425) (CALIF. ONLY) (UP TO ENGINE NO. 107127)...HOSE (3X5X425) (CALIF. ONLY) (UP TO ENGINE NO. 107127)
-
39-313684-32E10 ...HOSE (3X5X450) (CALIF. ONLY) (ENGINE NO 107128 AND UP)...HOSE (3X5X450) (CALIF. ONLY) (ENGINE NO 107128 AND UP)
-
4013281-05A00 PLUGPLUG
-
41-209404-06432 CLAMP, AIR TUBECLAMP, AIR TUBE
