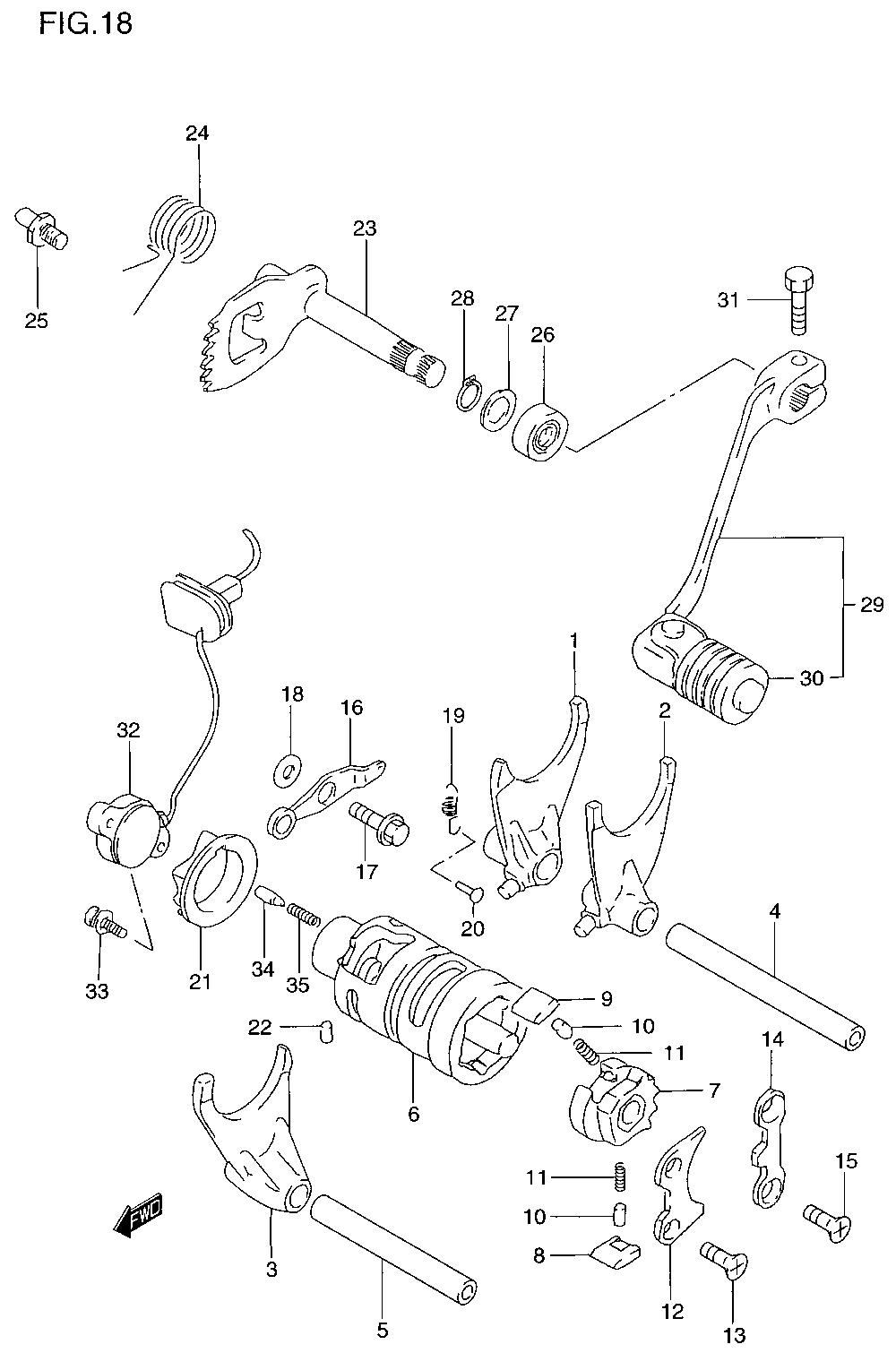

GEAR SHIFTING для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
1-225211-37401 FORK, GEAR SHIFTING NO.1FORK, GEAR SHIFTING NO.1
-
2-225221-37401 FORK, GEAR SHIFTING NO.2FORK, GEAR SHIFTING NO.2
-
3-225231-14A01 FORK, GEAR SHIFTING NO.3FORK, GEAR SHIFTING NO.3
-
425411-20A11 SHAFT, FORK NO.1 (L:95)SHAFT, FORK NO.1 (L:95)
-
525421-14A02 SHAFT, FORK NO.2 (L:75)SHAFT, FORK NO.2 (L:75)
-
625310-37400 CAM, GEAR SHIFTINGCAM, GEAR SHIFTING
-
7-325322-31310 GEAR, CAM DRIVENGEAR, CAM DRIVEN
-
825323-34201 PAWL, NO.1PAWL, NO.1
-
925324-34201 PAWL, NO.2PAWL, NO.2
-
1009261-05003 PINPIN
-
1109440-04003 SPRINGSPRING
-
1225331-14A00 LIFTER, PAWLLIFTER, PAWL
-
1302122-06123 SCREWSCREW
-
1425341-40001 GUIDE, CAMGUIDE, CAM
-
1502122-06123 SCREWSCREW
-
1625350-37400 STOPPERSTOPPER
-
1709111-06054 BOLTBOLT
-
1808211-06141 WASHERWASHER
-
1909443-08020 SPRINGSPRING
-
2009223-04001 HOOKHOOK
-
2125381-37401 PLATE, STOPPERPLATE, STOPPER
-
2204221-04069 PINPIN
-
2325510-32E00 SHAFT, GEAR SHIFTINGSHAFT, GEAR SHIFTING
-
24-209444-26023 SPRINGSPRING
-
2525671-01000 STOPPER, ARMSTOPPER, ARM
-
2609285-12002 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
2708212-12201 WASHERWASHER
-
2808331-31126 CIRCLIPCIRCLIP
-
2925600-32E00 LEVER ASSY., GEAR SHIFTINGLEVER ASSY., GEAR SHIFTING
-
3025652-03D00 ...RUBBER...RUBBER
-
3101500-06203 BOLTBOLT
-
3237720-32E10 BASE ASSY., GEAR SHIFT TERMBASE ASSY., GEAR SHIFT TERM
-
3302112-05163 SCREWSCREW
-
3409209-05011 CONTACTCONTACT
-
3509440-04010 SPRINGSPRING
