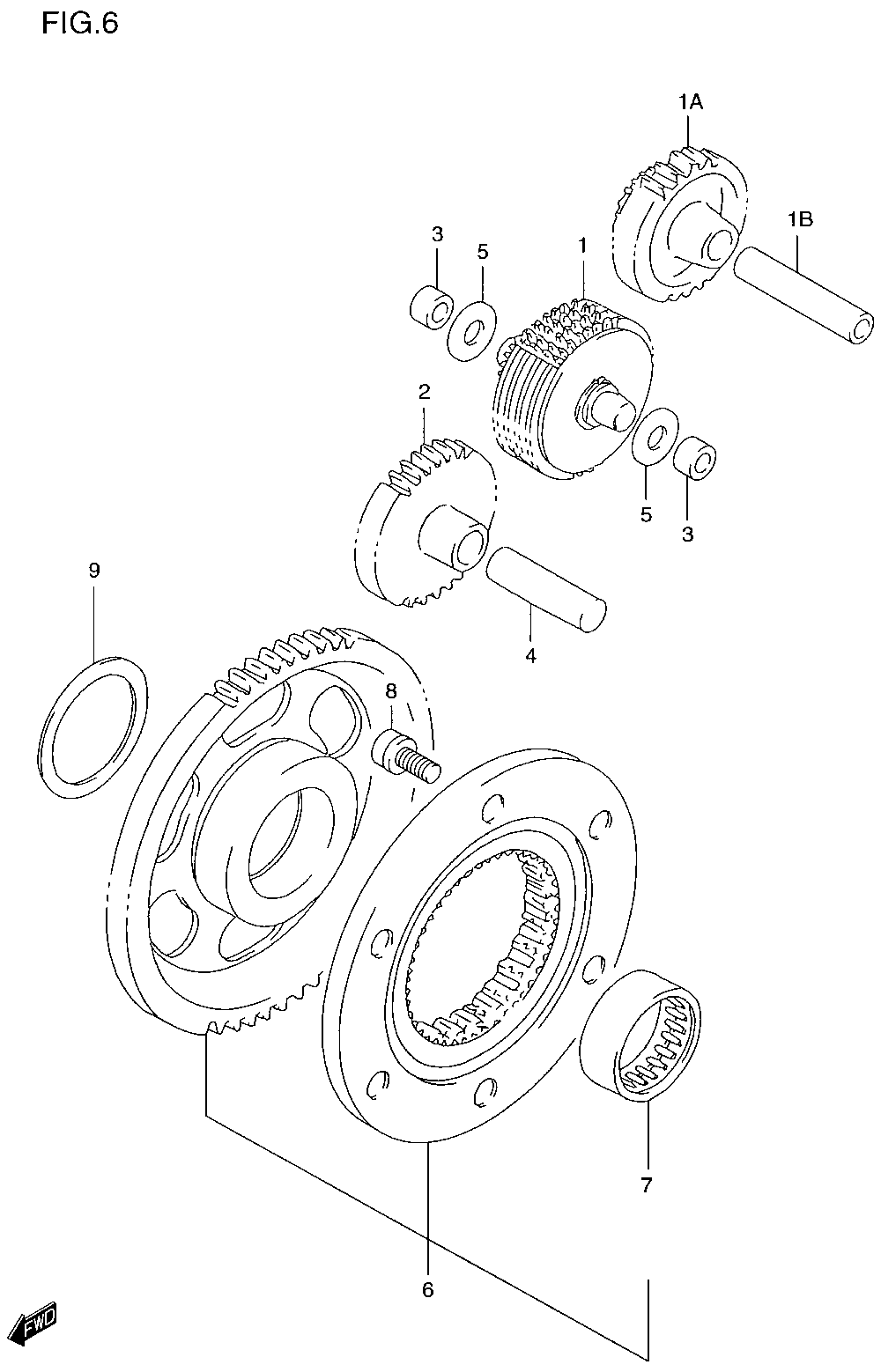

STARTER CLUTCH для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
1-212600-12D00 LIMITER ASSY., STARTER IDLE GEARLIMITER ASSY., STARTER IDLE GEAR
-
212612-12D01 GEAR, STARTER IDLE NO.2 (TEETH 27)GEAR, STARTER IDLE NO.2 (TEETH 27)
-
3-212618-31D01 BUSH, LIMITER SHAFTBUSH, LIMITER SHAFT
-
409202-12002 PIN, IDLE GEAR NO.2PIN, IDLE GEAR NO.2
-
5-208211-10221 WASHERWASHER
-
6-212600-09860 CLUTCH SET, STARTERCLUTCH SET, STARTER
-
709263-31009 ...BEARING (31X39X17.8)...BEARING (31X39X17.8)
-
807130-08203 BOLTBOLT
