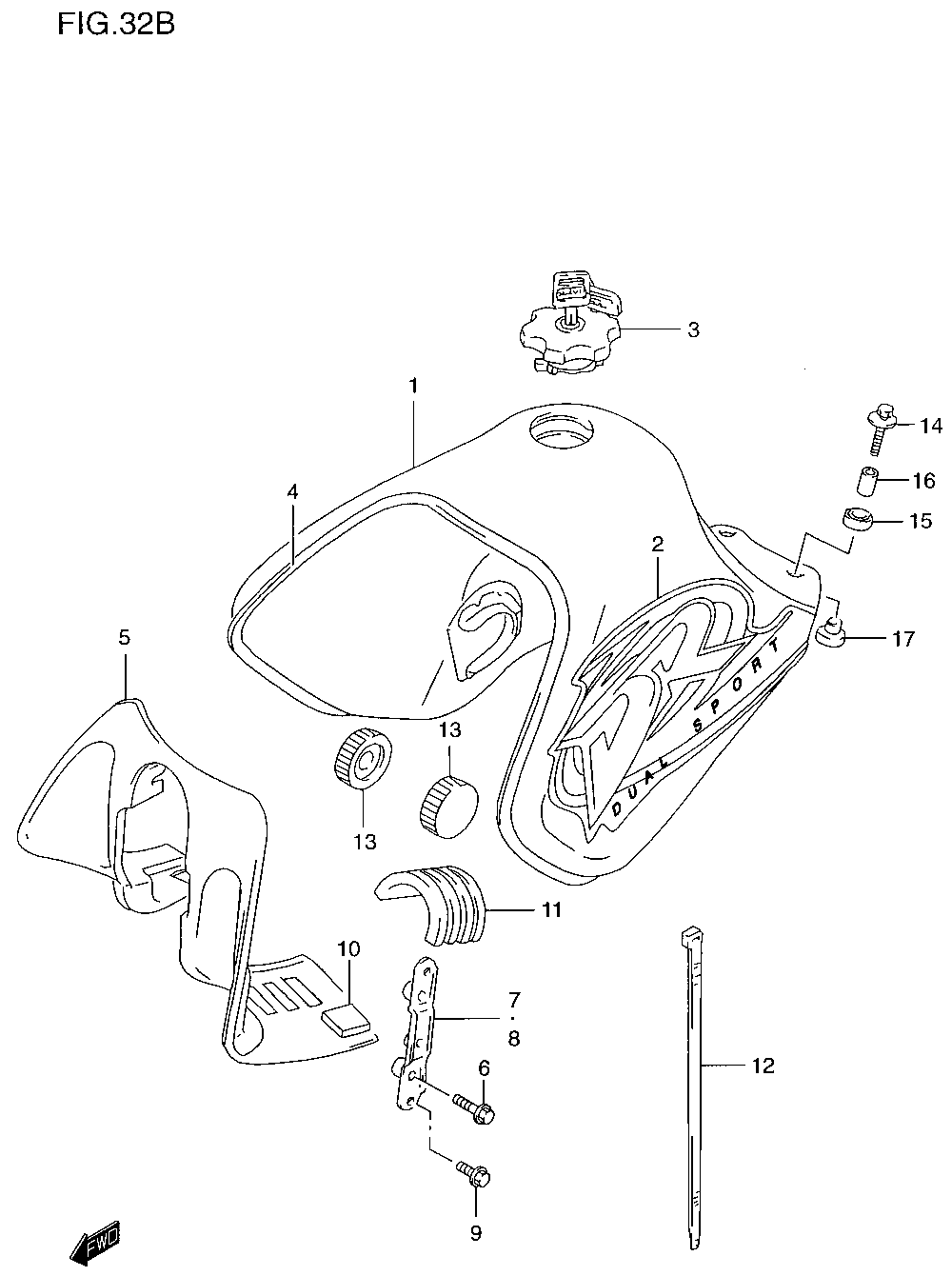

FUEL TANK для Suzuki DR650SEY - 2000 года выпуска

  • №
    Артикул
    Название
  • 1-1
    44100-32E80-Y2D TANK ASSY., FUEL (SILVER) (EXCEPT CALIF) (FOR J5F)
    TANK ASSY., FUEL (SILVER) (EXCEPT CALIF) (FOR J5F)
  • 1-2
    44100-32E80-YC2 TANK ASSY., FUEL (BLUE) (EXCEPT CALIF) (FOR N9J)
    TANK ASSY., FUEL (BLUE) (EXCEPT CALIF) (FOR N9J)
  • 1-3
    44100-32E90-Y2D TANK ASSY., FUEL (SILVER) (CALIF ONLY) (FOR J5F)
    TANK ASSY., FUEL (SILVER) (CALIF ONLY) (FOR J5F)
  • 1-4
    44100-32E90-YC2 TANK ASSY., FUEL (BLUE) (CALIF ONLY) (FOR N9J)
    TANK ASSY., FUEL (BLUE) (CALIF ONLY) (FOR N9J)
  • 2-1
    68110-32E40-AZ2 ...TAPE SET, FUEL TANK (FOR Y2D)
    ...TAPE SET, FUEL TANK (FOR Y2D)
  • 2-2
    68110-32E40-AZ3 ...TAPE SET, FUEL TANK (FOR YC2)
    ...TAPE SET, FUEL TANK (FOR YC2)
  • 3-1
    44200-13830 CAP SET, FUEL TANK (EXCEPT CALIF)
    CAP SET, FUEL TANK (EXCEPT CALIF)
  • 3-2
    44200-05820 CAP SET, FUEL TANK (CALIF. ONLY)
    CAP SET, FUEL TANK (CALIF. ONLY)
  • 4
    68241-32E00 MOLDING
    MOLDING
  • 5
    44271-32E00 COVER (FRONT)
    COVER (FRONT)
  • 6
    09116-06098 BOLT, COVER (FRONT)
    BOLT, COVER (FRONT)
  • 7
    44280-32E00 BRACKET, COVER (FRONT/RIGHT)
    BRACKET, COVER (FRONT/RIGHT)
  • 8
    44290-32E00 BRACKET, COVER (FRONT/LEFT)
    BRACKET, COVER (FRONT/LEFT)
  • 9
    01550-06253 BOLT, BRACKET
    BOLT, BRACKET
  • 10
    51827-12E00 CUSHION
    CUSHION
  • 11
    44541-13E00 CUSHION (UPPER/REAR)
    CUSHION (UPPER/REAR)
  • 12
    09407-25402 CLAMP
    CLAMP
  • 13
    44511-12D00 CUSHION (FRONT)
    CUSHION (FRONT)
  • 14
    09116-06172 BOLT (REAR)
    BOLT (REAR)
  • 15
    09320-14022 CUSHION (UPPER)
    CUSHION (UPPER)
  • 16
    09180-06271 SPACER
    SPACER
  • 17
    09320-10020 CUSHION (LOWER)
    CUSHION (LOWER)
