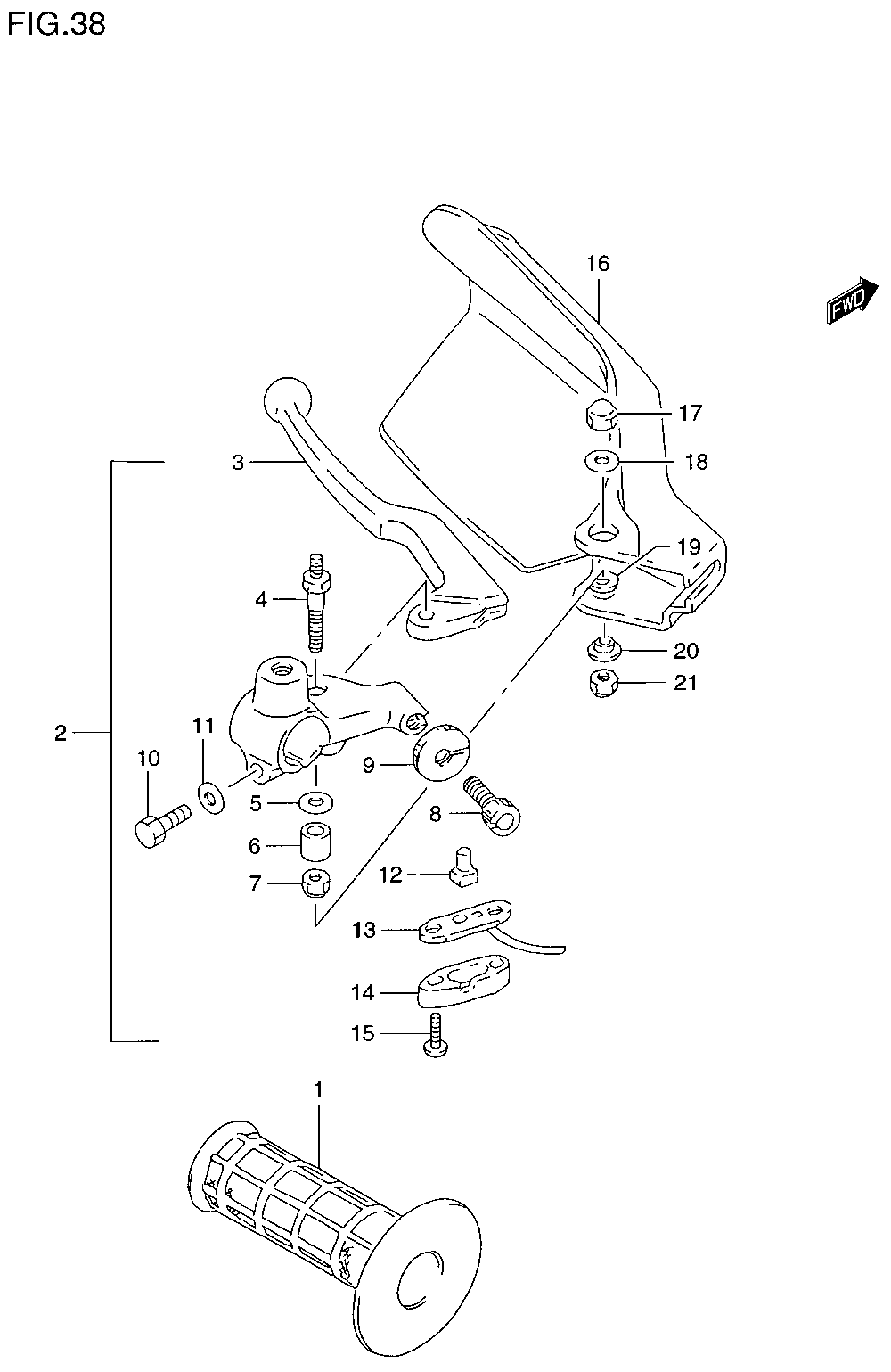

HANDLEBAR W/ SWITCHES - LEVERS (LEFT) для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
157211-12D00 GRIP (LEFT)GRIP (LEFT)
-
257500-12E20 LEVER ASSY., CLUTCHLEVER ASSY., CLUTCH
-
357620-20A02 ...LEVER, CLUTCH...LEVER, CLUTCH
-
457531-44B01 ...BOLT...BOLT
-
508322-01063 ...WASHER...WASHER
-
657532-44B00 ...SPACER...SPACER
-
708319-21063 ...NUT...NUT
-
857441-44400 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
957442-44400 ...NUT...NUT
-
1001204-06204 ...BOLT...BOLT
-
1108322-01063 ...WASHER...WASHER
-
1257465-18601 ...CONTACT...CONTACT
-
1357541-49100 ...WIRE HARNESS...WIRE HARNESS
-
1457481-33010 ...COVER...COVER
-
1557464-37110 ...SCREW...SCREW
-
16-257541-31D00-019 COVER, KNUCKLE (LEFT/BLACK) (FOR N9J)COVER, KNUCKLE (LEFT/BLACK) (FOR N9J)
-
16-357541-31D00-30H COVER, KNUCKLE (LEFT/WHITE) (FOR J5F)COVER, KNUCKLE (LEFT/WHITE) (FOR J5F)
-
1708313-10063 NUTNUT
-
1809160-06088 WASHERWASHER
-
1909160-06019 WASHERWASHER
-
2009169-06055 WASHERWASHER
-
2108319-21068 NUTNUT
