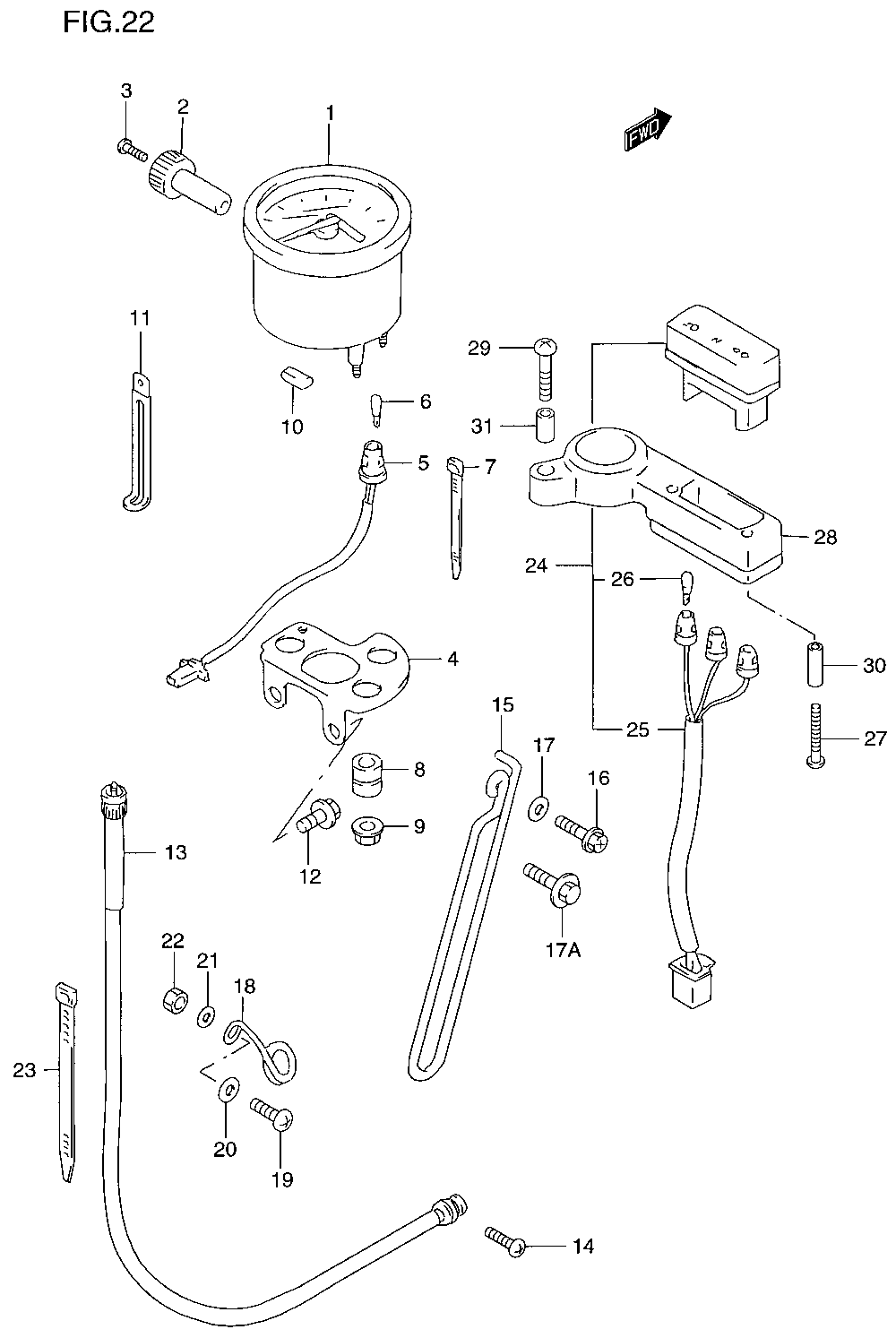

INSTRUMENT PANEL для Suzuki DR650SEY - 2000 года выпуска

№

Артикул

Название
1-3

34120-32E02 SPEEDOMETER (MILE/KILO) (USA)

SPEEDOMETER (MILE/KILO) (USA)
1-6

34120-32E12 SPEEDOMETER (KILO) (CANADA)

SPEEDOMETER (KILO) (CANADA)
2

34124-44B30 KNOB, TRIP

KNOB, TRIP
3

34184-12D00 SCREW, TRIP KNOB

SCREW, TRIP KNOB
4

34950-32E10 BRACKET, METER

BRACKET, METER
5-2

34170-15D21 SOCKET

SOCKET
6-2

09471-12108 BULB (14V,1.7W)

BULB (14V,1.7W)
7

34954-42A90 CLAMP

CLAMP
8

34189-30921 CUSHION

CUSHION
9

09159-06076 NUT

NUT
10

34161-03D00 CUSHION

CUSHION
11

09404-10417 CLAMP (L:97)

CLAMP (L:97)
12

01550-06123 BOLT, SPEEDOMETER

BOLT, SPEEDOMETER
13

34910-32E00 CABLE, SPEEDOMETER

CABLE, SPEEDOMETER
14

02112-05163 SCREW

SCREW
15

34938-14D30 GUIDE, CABLE NO.2

GUIDE, CABLE NO.2
17A

09116-06167 BOLT (6X20)

BOLT (6X20)
18-2

34938-14D21 GUIDE, CABLE NO.1

GUIDE, CABLE NO.1
19

02142-06163 SCREW

SCREW
20-2

09160-06109 WASHER (6.5X16X1.2)

WASHER (6.5X16X1.2)
21

09169-06054 WASHER

WASHER
22

08310-00063 NUT

NUT
23

09407-11401 CLAMP

CLAMP
24-1

36380-32E20 BOX ASSY., PILOT LAMP

BOX ASSY., PILOT LAMP
24-2

36380-32E10 BOX ASSY., PILOT LAMP (CANADA)

BOX ASSY., PILOT LAMP (CANADA)
25

36394-32E00 ...SOCKET, PILOT BOX

...SOCKET, PILOT BOX
26

09471-12118 ...BULB (13.5V,2W)

...BULB (13.5V,2W)
27

03511-14353 SCREW, PILOT BOX

SCREW, PILOT BOX
28

36382-32E00 HOLDER, PILOT BOX

HOLDER, PILOT BOX
29

09139-06029 SCREW, PILOT BOX HOLDER

SCREW, PILOT BOX HOLDER
30-2

09180-04024 SPACER (4.5X6.5X25)

SPACER (4.5X6.5X25)
31-2

09180-06251 SPACER (6.1X8X15.5)

SPACER (6.1X8X15.5)
