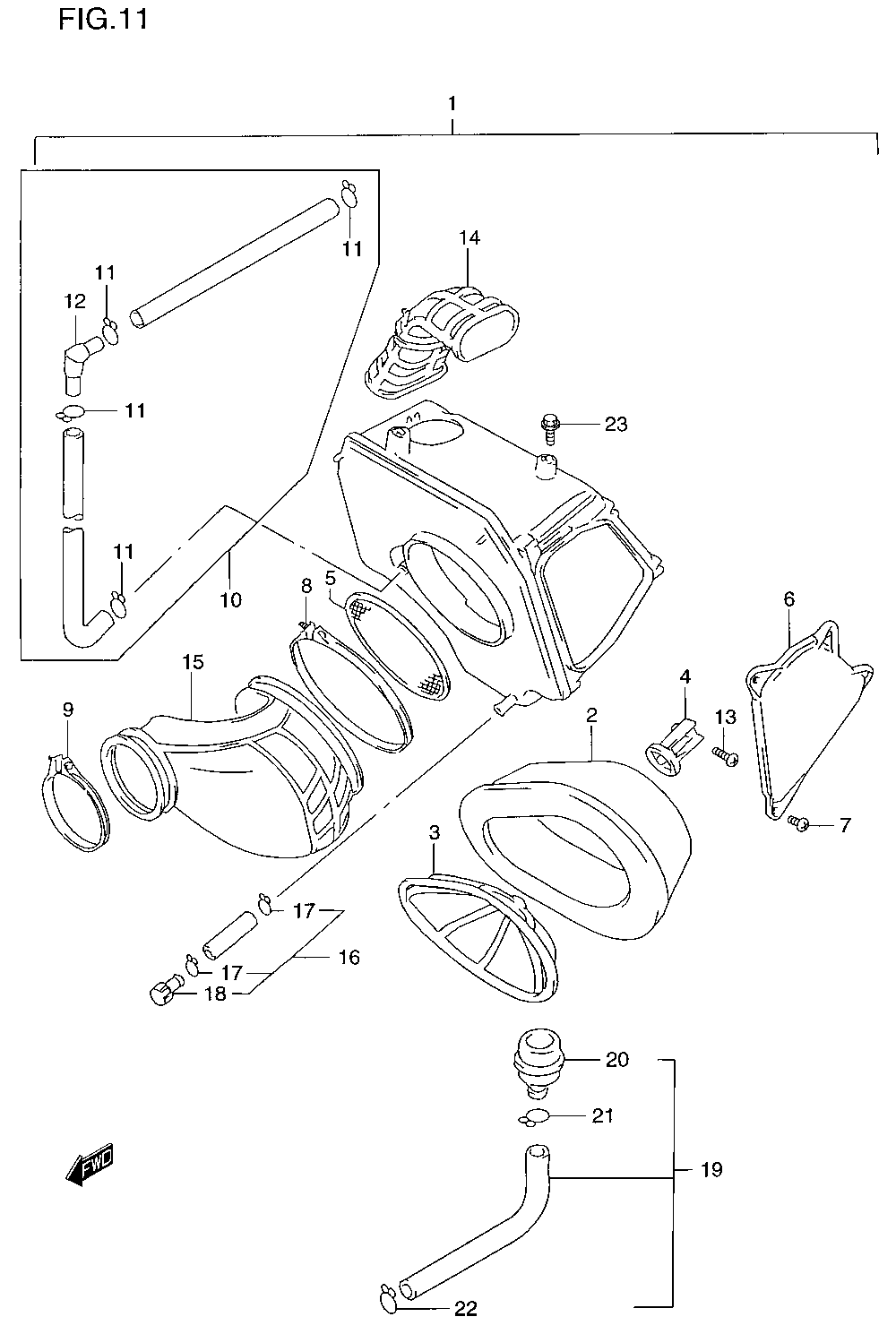

AIR CLEANER ASSY. для Suzuki DR650SEY - 2000 года выпуска

№

Артикул

Название
1

13700-32E00 CLEANER ASSY., AIR

CLEANER ASSY., AIR
2

13780-32E00 ...FILTER

...FILTER
3

13791-32E00 ...HOLDER

...HOLDER
4

13792-32E00 ...STOPPER

...STOPPER
5

13810-14D02 ...TRAP, FRAME

...TRAP, FRAME
6

13740-32E00 ...CAP

...CAP
7

02142-05123 ...BOLT

...BOLT
8

13826-14D01 ...CLAMP

...CLAMP
9

09402-64203 ...CLAMP

...CLAMP
10

13850-32E00 ...TUBE ASSY., BREATHER

...TUBE ASSY., BREATHER
11

09401-14301 ......CLIP

......CLIP
12

13858-14D10 ......JOINT

......JOINT
13

02142-06203 ...SCREW

...SCREW
14

13891-32E00 ...TUBE, INLET

...TUBE, INLET
15

13881-32E00 ...TUBE, OUTLET

...TUBE, OUTLET
16

13870-32E00 ...TUBE ASSY., DRAIN

...TUBE ASSY., DRAIN
17

09401-14301 ......CLIP

......CLIP
18

13877-00190 ......PLUG

......PLUG
19

13800-32E00 CLEANER ASSY., 2ND

CLEANER ASSY., 2ND
20

18780-32E00 ...FILTER

...FILTER
21

09401-16401 ...CLIP

...CLIP
22

09401-14301 ...CLIP

...CLIP
23

01550-06123 BOLT

BOLT
