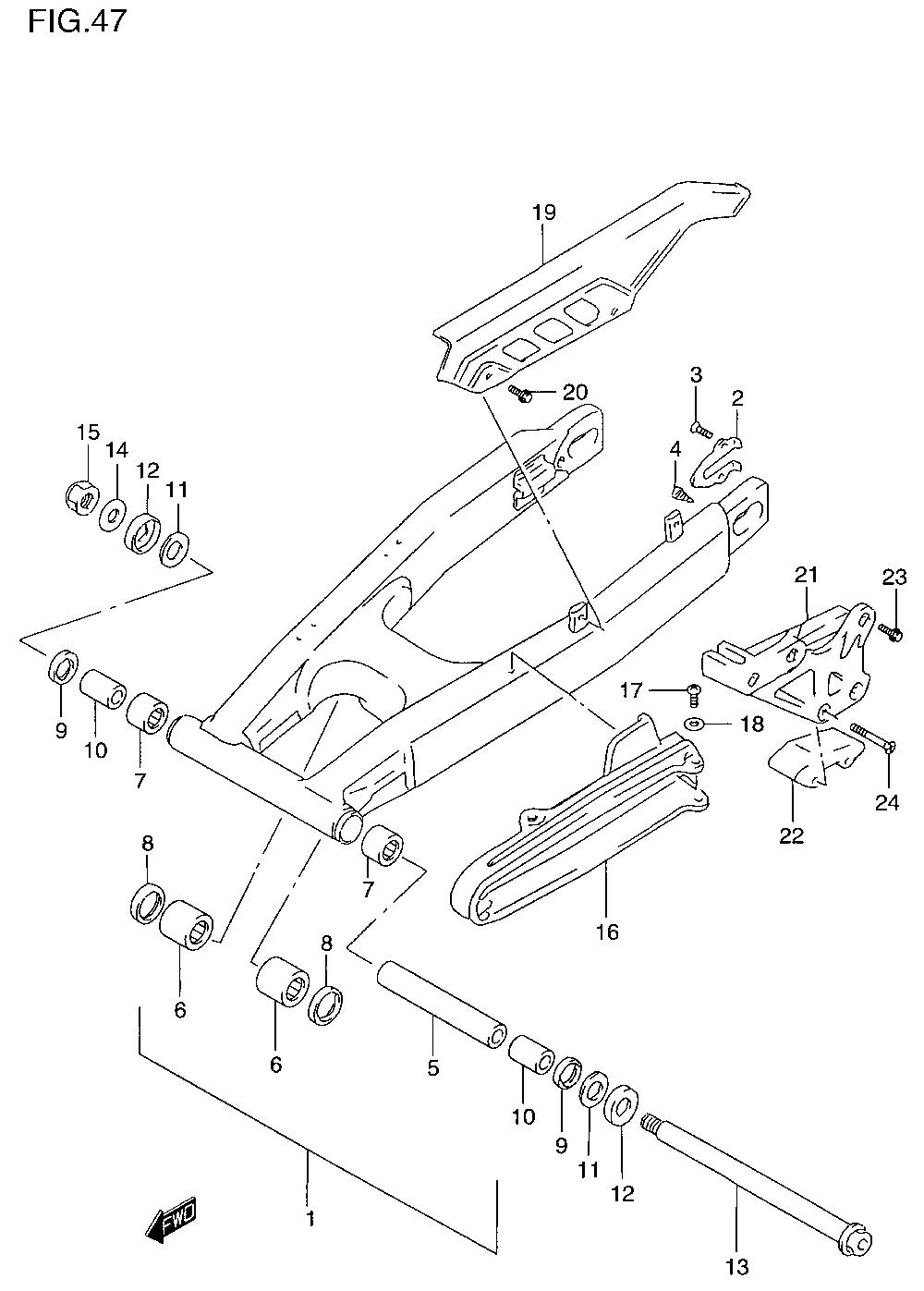

SUSPENSION - REAR ARM для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
161000-32E00 SWINGING ARM ASSY (REAR)SWINGING ARM ASSY (REAR)
-
261128-29E00 ...PLATE...PLATE
-
309126-05009 ...SCREW (5X8)...SCREW (5X8)
-
461431-13E00 ...BOLT, STOPPER (10X17)...BOLT, STOPPER (10X17)
-
561282-32E00 ...SPACER, PIVOT...SPACER, PIVOT
-
609263-20071 ...BEARING, ROD (20X27X23.5)...BEARING, ROD (20X27X23.5)
-
709263-22017 ...BEARING, PIVOT (22X29X30)...BEARING, PIVOT (22X29X30)
-
809283-20031 SEAL, ROD OIL (20X27X5)SEAL, ROD OIL (20X27X5)
-
909285-22001 SEAL, PIVOT OIL (22X29X4)SEAL, PIVOT OIL (22X29X4)
-
1061251-14D00 SPACER, PIVOT BEARINGSPACER, PIVOT BEARING
-
1108211-17341 WASHERWASHER
-
1261262-28C10 COVER, PIVOT DUSTCOVER, PIVOT DUST
-
1364711-08D00 SHAFT, PIVOTSHAFT, PIVOT
-
1408322-01163 WASHERWASHER
-
1509159-16007 NUTNUT
-
1661273-13E01 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1702142-06123 SCREWSCREW
-
1809169-06057 WASHERWASHER
-
1961311-01A03 CASE, CHAINCASE, CHAIN
-
2009116-06096 BOLT (6X10)BOLT (6X10)
-
2161340-15E00 GUIDE, CHAINGUIDE, CHAIN
-
2261348-15E00 DEFENSE, CHAIN GUIDEDEFENSE, CHAIN GUIDE
-
2301550-06163 BOLT (UPPER)BOLT (UPPER)
-
2402122-06503 SCREW (LOWER)SCREW (LOWER)
