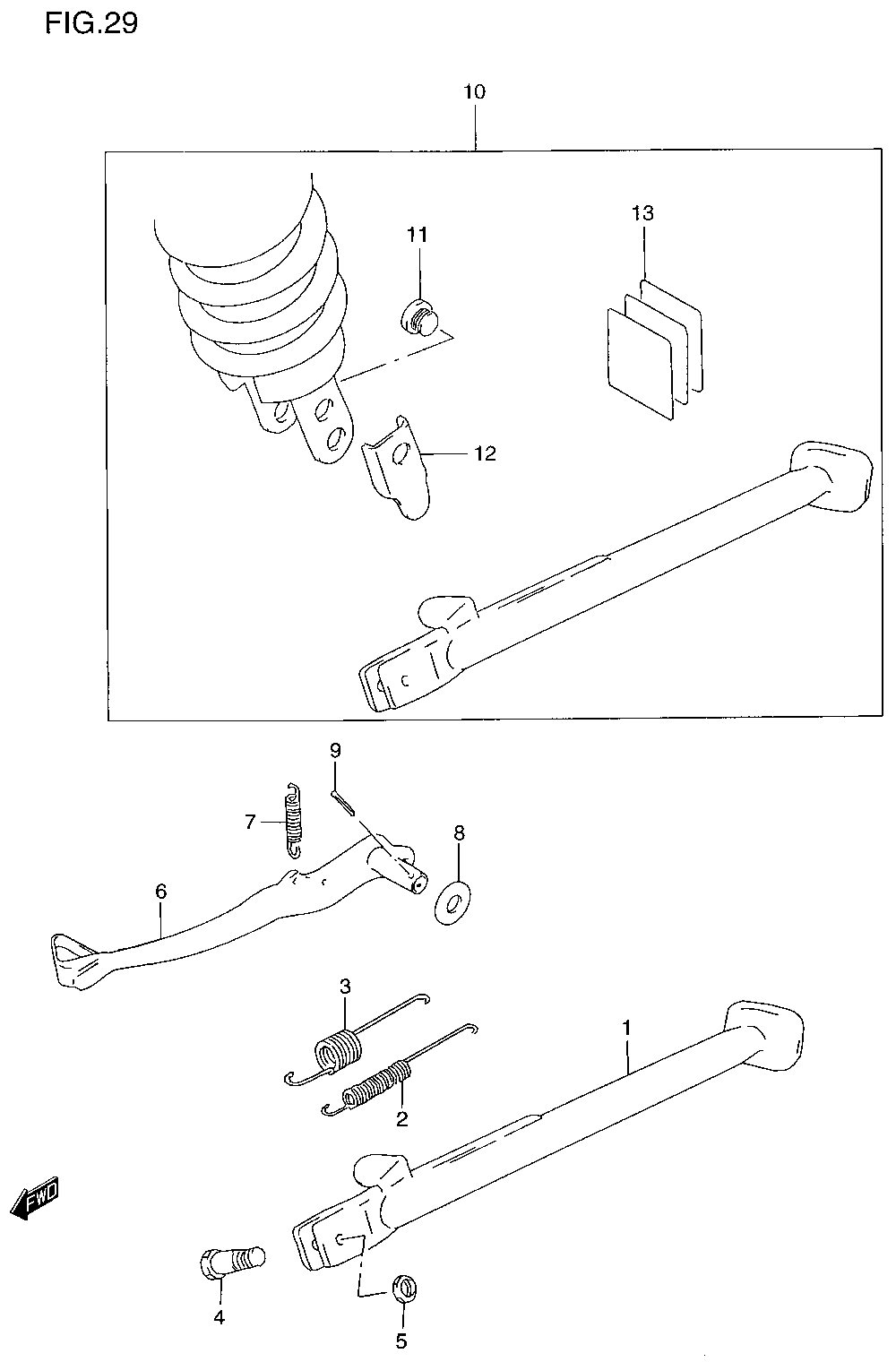

BRAKE PEDAL W/ STAND для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
142310-32E20 STAND, PROPSTAND, PROP
-
209443-12045 SPRING (INNER)SPRING (INNER)
-
309443-19010 SPRING (OUTER)SPRING (OUTER)
-
409111-10047 BOLTBOLT
-
509159-10097 NUTNUT
-
643110-32E00 PEDAL, BRAKEPEDAL, BRAKE
-
709443-11030 SPRING, RETURNSPRING, RETURN
-
8-209160-15049 WASHERWASHER
-
904111-30308 COTTER PINCOTTER PIN
-
1042300-32820 STAND SET, PROP (LOW) (OPT)STAND SET, PROP (LOW) (OPT)
-
1109248-10006 ...PLUG (OPT)...PLUG (OPT)
-
1262184-32E00 ...PLATE (OPT)...PLATE (OPT)
-
1368380-32E10 ...LABEL SET, WARNING (OPT)...LABEL SET, WARNING (OPT)
