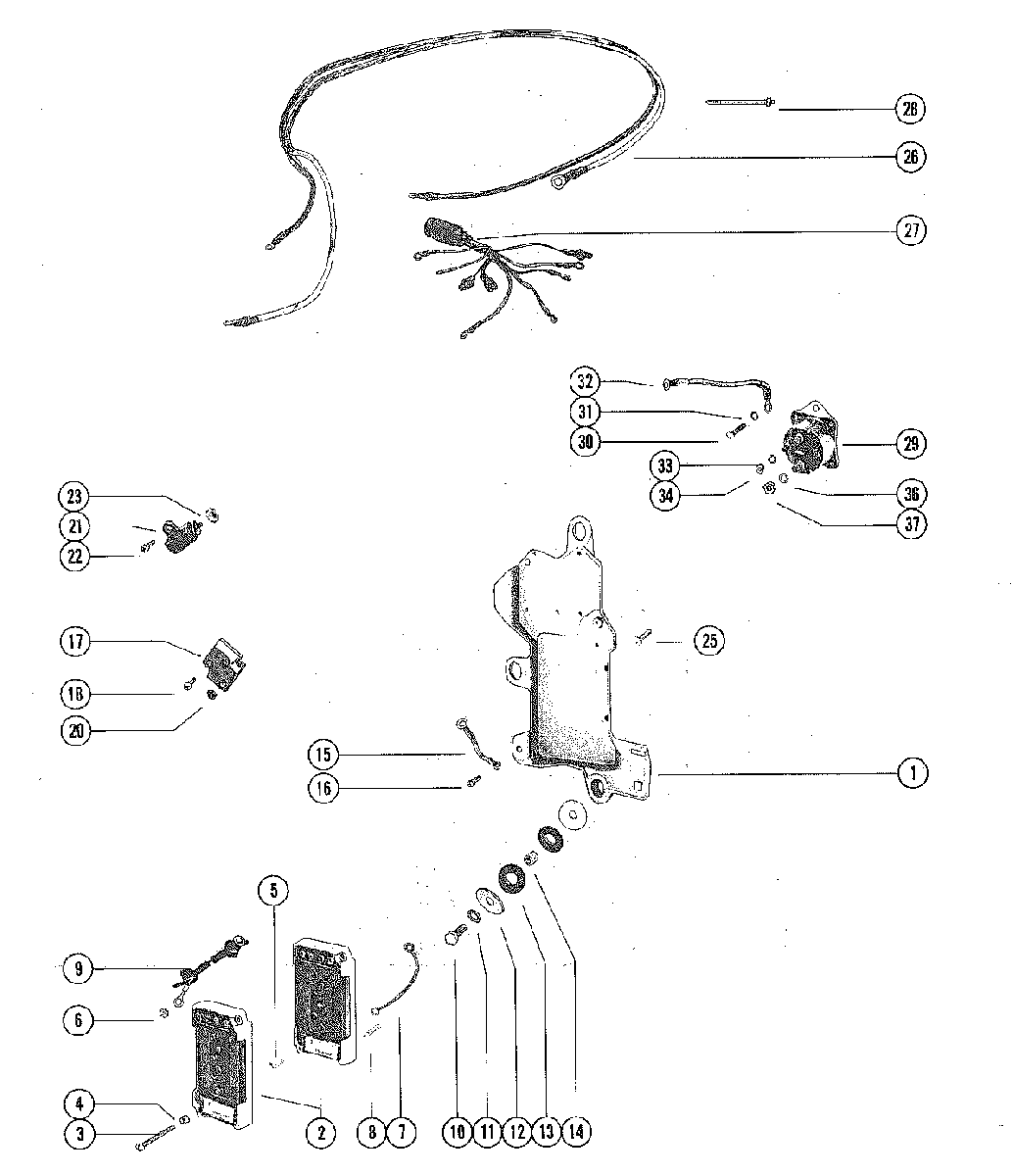

WIRING HARNESS, STARTER SOLENOID AND RECTIFIER для Mercury - V-225 5628028 AND UP

  • №
    Артикул
    Название
  • 1
    434292 PLATE, IGNITION
    PLATE, IGNITION
  • 2
    332-7778A12 SWITCH BOX
    SWITCH BOX
  • 3
    10-90815 SCREW, SWITCH BOX (2-1/4")
    SCREW, SWITCH BOX (2-1/4")
  • 4
    23-94304 SPACER, SWITCH BOX SCREW
    SPACER, SWITCH BOX SCREW
  • 5
    23-94453 BUSHING, SWITCH BOX SCREW
    BUSHING, SWITCH BOX SCREW
  • 6
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 7
    84-60871A10 WIRE ASSEMBLY, GROUND
    WIRE ASSEMBLY, GROUND
  • 8
    10-62568 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 9
    84-62310A2 CABLE
    SWITCH BOX TO SWITCH BOX (WHITE/BLACK)
    CABLE
    SWITCH BOX TO SWITCH BOX (WHITE/BLACK)
  • 10
    10-60411 SCREW, IGNITION PLATE (1-1/4")
    SCREW, IGNITION PLATE (1-1/4")
  • 11
    13-26993 LOCKWASHER, IGNITION PLATE SCREW
    LOCKWASHER, IGNITION PLATE SCREW
  • 12
    12-36042 WASHER, IGNITION PLATE SCREW
    WASHER, IGNITION PLATE SCREW
  • 13
    12-67264 WASHER, IGNITION PLATE SCREW (RUBBER)
    WASHER, IGNITION PLATE SCREW (RUBBER)
  • 14
    23-67268 BUSHING, IGNITION PLATE SCREW
    BUSHING, IGNITION PLATE SCREW
  • 15
    84-65999A3 CABLE ASSEMBLY, BLACK
    CABLE ASSEMBLY, BLACK
  • 16
    10-38055 SCREW, CABLE TO IGNITION PLATE (5/8")
    SCREW, CABLE TO IGNITION PLATE (5/8")
  • 17
    8M0058226 RECTIFIER
    RECTIFIER
  • 18
    10-38055 SCREW, RECTIFIER TO IGNITION PLATE (5/8")
    SCREW, RECTIFIER TO IGNITION PLATE (5/8")
  • 20
    11-45076 NUT, RECTIFIER TERMINALS
    NUT, RECTIFIER TERMINALS
  • 21
    87-33386A3 MERCURY SWITCH
    MERCURY SWITCH
  • 22
    10-38055 SCREW, MERCURY SWITCH (5/8")
    SCREW, MERCURY SWITCH (5/8")
  • 23
    11-45076 NUT, MERCURY SWITCH TERMINAL
    NUT, MERCURY SWITCH TERMINAL
  • 25
    10-22028 SCREW, LEAD ATTACHING (1/2")
    SCREW, LEAD ATTACHING (1/2")
  • 26
    84-88439A14 BATTERY CABLE (POSITIVE)
    BATTERY CABLE (POSITIVE)
  • 26
    84-88439A2 BATTERY CABLE (NEGATIVE)
    BATTERY CABLE (NEGATIVE)
  • 27
    84-96220A4 HARNESS, ENGINE
    HARNESS, ENGINE
  • 28
    61990 STA-STRAP, HARNESS AND CABLES
    STA-STRAP, HARNESS AND CABLES
  • 29
    89-853654A1 SOLENOID, STARTER
    SOLENOID, STARTER
  • 30
    10-20540 SCREW, SOLENOID TO IGNITION PLATE (5/8")
    SCREW, SOLENOID TO IGNITION PLATE (5/8")
  • 31
    13-26992 LOCKWASHER, SOLENOID SCREW
    LOCKWASHER, SOLENOID SCREW
  • 32
    84-65999A2 CABLE ASSEMBLY, UPPER MOUNT (BLACK)
    CABLE ASSEMBLY, UPPER MOUNT (BLACK)
  • 33
    13-26996 LOCKWASHER, SOLENOID TERMINALS (#10)
    LOCKWASHER, SOLENOID TERMINALS (#10)
  • 34
    11-68219 NUT, SOLENOID TERMINALS (5/16")
    NUT, SOLENOID TERMINALS (5/16")
  • 36
    13-26993 LOCKWASHER, SOLENOID TERMINALS (5/16")
    LOCKWASHER, SOLENOID TERMINALS (5/16")
  • 37
    11-68292 NUT, SOLENOID TERMINALS (5/16 - 18)
    NUT, SOLENOID TERMINALS (5/16 - 18)
