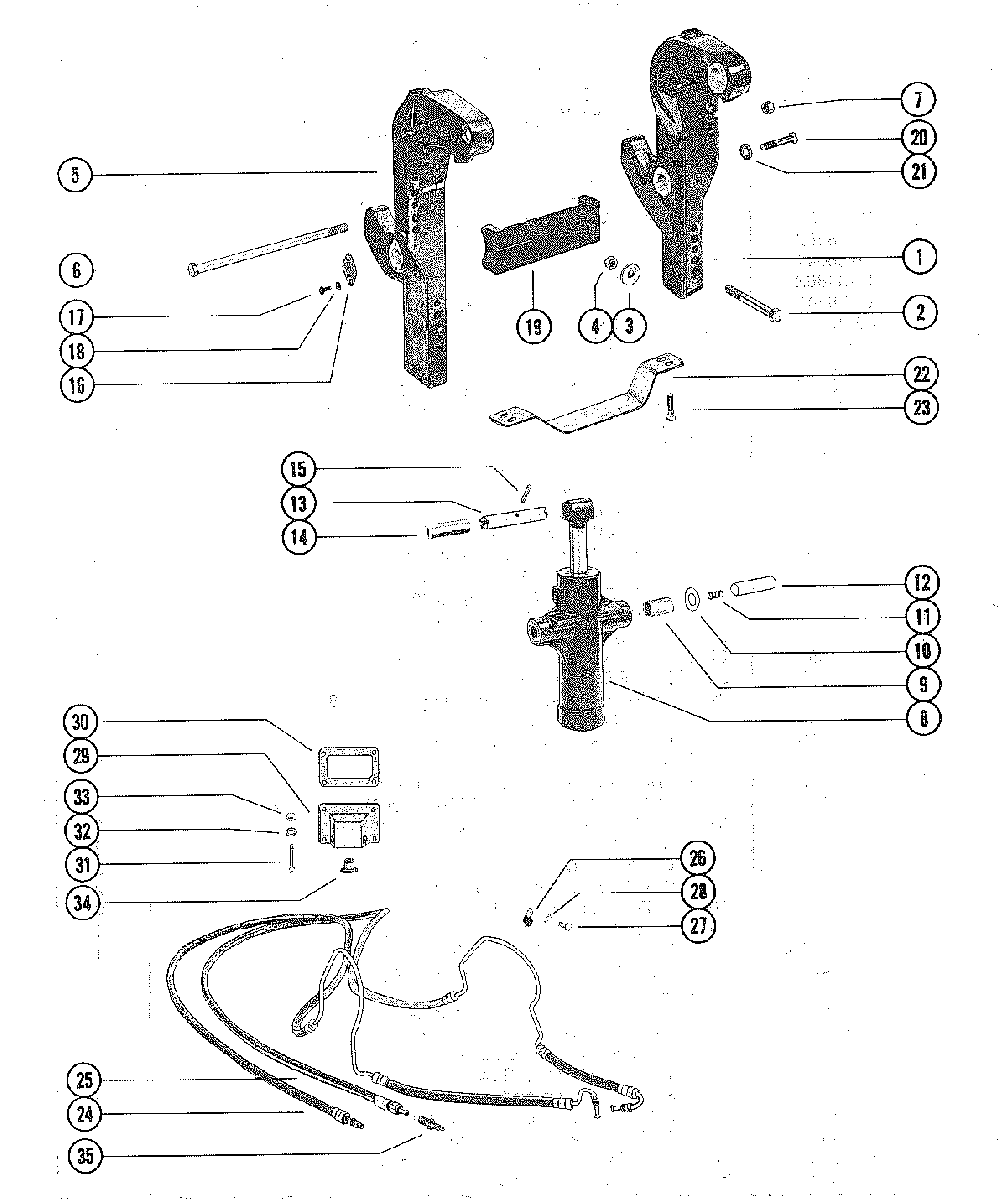

TRANSOM BRACKETS для Mercury - V-225 5628028 AND UP

  • №
    Артикул
    Название
  • 1
    1494-7476T1 BRACKET, TRANSOM (PORT)
    BRACKET, TRANSOM (PORT)
  • 2
    10-677552 SCREW, BRACKET TO TRANSOM (6")
    SCREW, BRACKET TO TRANSOM (6")
  • 2
    10-67757 SCREW, BRACKET TO TRANSOM (4")
    SCREW, BRACKET TO TRANSOM (4")
  • 3
    12-28421 WASHER, BRACKET SCREW
    WASHER, BRACKET SCREW
  • 4
    11-35000 NUT, BRACKET SCREW
    NUT, BRACKET SCREW
  • 5
    1495-7478T1 BRACKET, TRANSOM (STARBOARD)
    BRACKET, TRANSOM (STARBOARD)
  • 6
    10-87180 BOLT, TILT
    BOLT, TILT
  • 7
    11-82671317 NUT, TILT BOLT
    NUT, TILT BOLT
  • 8
    79610A6 TRIM CYLINDER ASSEMBLY
    TRIM CYLINDER ASSEMBLY
  • 9
    23-86489 BUSHING, TRIM CYLINDER
    BUSHING, TRIM CYLINDER
  • 10
    12-85022 WASHER, TRANSOM BRACKET
    WASHER, TRANSOM BRACKET
  • 11
    24-30316 SPRING, TRIM CYLINDER
    SPRING, TRIM CYLINDER
  • 12
    17-85020T PIVOT PIN, TRIM CYLINDER
    PIVOT PIN, TRIM CYLINDER
  • 13
    85024 SHAFT, TRIM CYLINDER
    SHAFT, TRIM CYLINDER
  • 14
    23-86637 BEARING, TRIM SHAFT
    BEARING, TRIM SHAFT
  • 15
    17-91862 PIN, TRIM CYLINDER
    PIN, TRIM CYLINDER
  • 16
    85026T PLATE, PIVOT PIN
    PLATE, PIVOT PIN
  • 17
    10-28636 SCREW, PLATE TO TRANSOM BRACKET
    SCREW, PLATE TO TRANSOM BRACKET
  • 18
    12-29245 WASHER, PLATE SCREW
    WASHER, PLATE SCREW
  • 19
    85035T SPACER, TRANSOM BRACKET
    SPACER, TRANSOM BRACKET
  • 20
    10-70732 SCREW, SPACER TO TRANSOM BRACKET
    SCREW, SPACER TO TRANSOM BRACKET
  • 21
    12-29245 WASHER, SPACER SCREW
    WASHER, SPACER SCREW
  • 22
    89949A1 PLATE ASSEMBLY, TRANSOM BRACKET
    PLATE ASSEMBLY, TRANSOM BRACKET
  • 23
    10-90192 SCREW, PLATE TO TRANSOM BRACKET
    SCREW, PLATE TO TRANSOM BRACKET
  • 24
    32-89024A1 HOSE, HYDRAULIC - PORT
    HOSE, HYDRAULIC - PORT
  • 25
    32-89023A2 HOSE, HYDRAULIC - STARBOARD
    HOSE, HYDRAULIC - STARBOARD
  • 26
    54-88512 CLAMP, HYDRAULIC HOSE
    CLAMP, HYDRAULIC HOSE
  • 27
    10-88829 SCREW, CLAMP TO TRANSOM BRACKET
    SCREW, CLAMP TO TRANSOM BRACKET
  • 28
    13-26996 LOCKWASHER, CLAMP SCREW
    LOCKWASHER, CLAMP SCREW
  • 29
    87871T COVER, INLET-HYDRAULIC HOSE
    COVER, INLET-HYDRAULIC HOSE
  • 30
    27-87775 GASKET, INLET COVER
    GASKET, INLET COVER
  • 31
    10-32866 SCREW, INLET COVER
    SCREW, INLET COVER
  • 32
    12-20878 WASHER, INLET COVER SCREW
    WASHER, INLET COVER SCREW
  • 33
    11-826709106 NUT, INLET COVER SCREW
    NUT, INLET COVER SCREW
  • 34
    25-45507 GROMMET, INLET COVER
    GROMMET, INLET COVER
  • 35
    22-87207 CONNECTOR, HYDRAULIC HOSE
    CONNECTOR, HYDRAULIC HOSE
