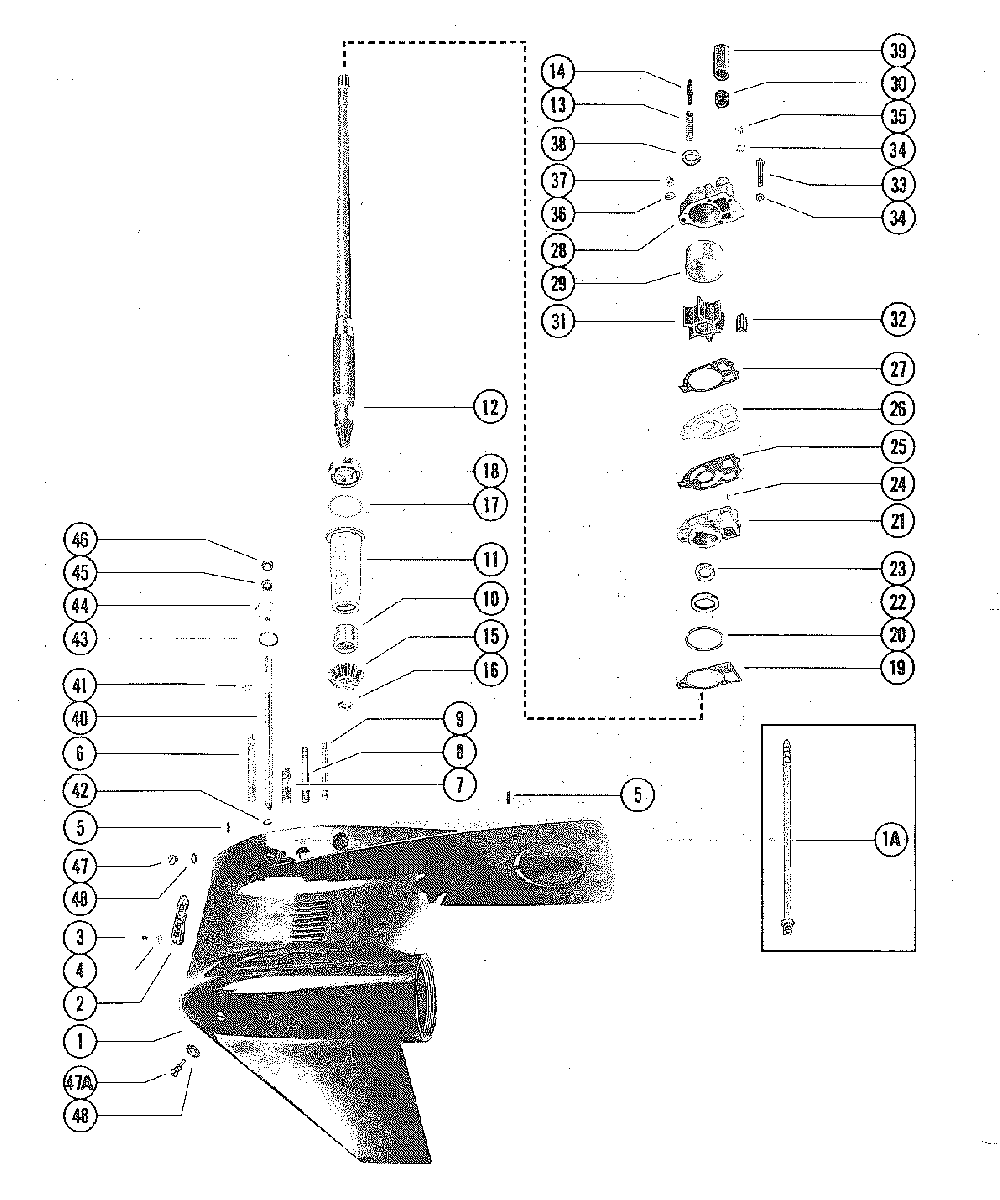

GEAR HOUSING (DRIVE SHAFT) для Mercury - V-225 5628028 AND UP

№

Артикул

Название
1647-9148T84 GEAR HOUSING ASS'Y COMPLETE (LONG SHAFT)

GEAR HOUSING ASS'Y COMPLETE (LONG SHAFT)

349 780 ₽
1647-9148T85 GEAR HOUSING ASS'Y, COMP. (EXTRA LONG SHAFT)

GEAR HOUSING ASS'Y, COMP. (EXTRA LONG SHAFT)

349 750 ₽
1

1647-8688T9 GEAR HOUSING ASSEMBLY

GEAR HOUSING ASSEMBLY

166 800 ₽
1A

22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER

CONNECTOR ASSEMBLY, SPEEDOMETER

660 ₽
2

66885 INSERT, WATER-STARBOARD

INSERT, WATER-STARBOARD

1 050 ₽
2

66884 INSERT, WATER-PORT

INSERT, WATER-PORT

1 070 ₽
3

10-76156 SCREW, INSERT TO GEAR HOUSING

SCREW, INSERT TO GEAR HOUSING

200 ₽
4

11-859124 NUT, INSERT TO GEAR HOUSING SCREW

NUT, INSERT TO GEAR HOUSING SCREW

1 490 ₽
5

17-43044 DOWEL PINE, GEAR HOUSING LOCATING

DOWEL PINE, GEAR HOUSING LOCATING

200 ₽
6

16-786382 STUD, GEAR HOUSING (3-1/8")(LONG SHAFT)

STUD, GEAR HOUSING (3-1/8")(LONG SHAFT)

560 ₽
6

16-78639 STUD, GEAR HOUSING (9")(EXTRA LONG SHAFT)

STUD, GEAR HOUSING (9")(EXTRA LONG SHAFT)

0 ₽
7

16-8M0133358 STUD, GEAR HOUSING (2-1/16") ( LONG SHAFT)

STUD, GEAR HOUSING (2-1/16") ( LONG SHAFT)

0 ₽
7

16-74730 STUD, GEAR HOUSING (7-1/16")(EXTRA LONG SHAFT)

STUD, GEAR HOUSING (7-1/16")(EXTRA LONG SHAFT)

0 ₽
8

16-8M0034463 STUD, WATER PUMP (3-3/8")

STUD, WATER PUMP (3-3/8")

670 ₽
9

16-69501 STUD,WATER PUMP(3-1/8")

STUD,WATER PUMP(3-1/8")

410 ₽
10

31-35934A1 BEARING,ROLLER-DRIVE SHAFT

BEARING,ROLLER-DRIVE SHAFT

8 600 ₽
11

23-98621 SLEEVE, LUBRICATION

SLEEVE, LUBRICATION

4 820 ₽
12

45-98682A1 DRIVE SHAFT ASSEMBLY (LONG SHAFT)

DRIVE SHAFT ASSEMBLY (LONG SHAFT)

0 ₽
12

45-41509A2 DRIVE SHAFT ASSEMBLY (EXTRA LONG SHAFT)

DRIVE SHAFT ASSEMBLY (EXTRA LONG SHAFT)

0 ₽
13

24-34576 SPRING, DRIVE SHAFT PIN

SPRING, DRIVE SHAFT PIN

790 ₽
14

17-30545 PIN, DRIVE SHAFT

PIN, DRIVE SHAFT

450 ₽
15

43-43491T1 GEAR, PINION

GEAR, PINION

0 ₽
16

11-35921 NUT,PINION GEAR TO DRIVE SHAFT

NUT,PINION GEAR TO DRIVE SHAFT

1 020 ₽
17

15-57007A1 SHIM ASSEMBLY, ROLLER BEARING

SHIM ASSEMBLY, ROLLER BEARING

800 ₽
18

31-53079A1 ROLLER BEARING, DRIVE SHAFT

ROLLER BEARING, DRIVE SHAFT

3 850 ₽
19

27-856704 GASKET,WATER PUMP

GASKET,WATER PUMP

200 ₽
20

25-33145 "O"RING,WATER PUMP BASE

"O"RING,WATER PUMP BASE

490 ₽
21

46-96146A6 WATER PUMP BASE ASSEMBLY

WATER PUMP BASE ASSEMBLY

4 750 ₽
22

26-89238 OIL SEAL, WATER PUMP BASE

OIL SEAL, WATER PUMP BASE

3 570 ₽
23

26-16977 OIL SEAL, WATER PUMP BASE

OIL SEAL, WATER PUMP BASE

1 550 ₽
24

17-8M0084627 DOWEL PIN, WATER PUMP

DOWEL PIN, WATER PUMP

190 ₽
25

27-8M0090319 GASKET, LOWER-WATER PUMP

GASKET, LOWER-WATER PUMP

280 ₽
26

324351 PLATE, FACE

PLATE, FACE

650 ₽
27

27-858524 GASKET,UPPER-WATER PUMP

GASKET,UPPER-WATER PUMP

260 ₽
28

46-96148T1 WATER PUMP BODY ASSEMBLY

WATER PUMP BODY ASSEMBLY

6 130 ₽
29

48752T INSERT, WATER PUMP BODY

INSERT, WATER PUMP BODY

860 ₽
30

26-38970 SEAL, RUBBER-WATER INLET TUBE

SEAL, RUBBER-WATER INLET TUBE

340 ₽
31

47-89984T4 IMPELLER, WATER PUMP

IMPELLER, WATER PUMP

2 670 ₽
32

28-8M0032834 KEY,IMPELLER DRIVE

KEY,IMPELLER DRIVE

330 ₽
33

10-30720 SCREW,WATER PUMP (2-1/4"-HEX HEAD)

SCREW,WATER PUMP (2-1/4"-HEX HEAD)

0 ₽
33

10-96411 SCREW,WATER PUMP (2-1/4"-HEX WASHER HEAD)

SCREW,WATER PUMP (2-1/4"-HEX WASHER HEAD)

210 ₽
34

12-29245 WASHER, WATER PUMP SCREW AND STUD

WASHER, WATER PUMP SCREW AND STUD

120 ₽
35

11-35888 NUT, WATER PUMP STUD

NUT, WATER PUMP STUD

490 ₽
36

12-36001 WASHER, WATER PUMP BODY STUD

WASHER, WATER PUMP BODY STUD

100 ₽
37

11-826709111 NUT, WATER PUMP BODY STUD

NUT, WATER PUMP BODY STUD

290 ₽
38

25-30271 RING
RUBBER-CENTRIFUGAL SLINGER (DRIVE SHAFT)

RING
RUBBER-CENTRIFUGAL SLINGER (DRIVE SHAFT)

150 ₽
39

23-29804T SLEEVE, GUIDE-WATER INLET TUBE

SLEEVE, GUIDE-WATER INLET TUBE

630 ₽
40

789022 SHAFT, SHIFT-LOWER

SHAFT, SHIFT-LOWER

9 650 ₽
41

53-29641 "E"RING,RETAINING-SHIFT SHAFT

"E"RING,RETAINING-SHIFT SHAFT

140 ₽
42

53-78907 RETAINING RING

RETAINING RING

60 ₽
43

25-25439 "O"RING,SHIFT SHAFT BUSHING

"O"RING,SHIFT SHAFT BUSHING

190 ₽
44

23-77631A2 BUSHING ASSEMBLY,SHIFT SHAFT

BUSHING ASSEMBLY,SHIFT SHAFT

1 980 ₽
45

26-892361 OIL SEAL, SHIFT SHAFT BUSHING

OIL SEAL, SHIFT SHAFT BUSHING

1 450 ₽
46

12-77674 WASHER,RUBBER-SHIFT SHAFT BUSHING

WASHER,RUBBER-SHIFT SHAFT BUSHING

100 ₽
47

10-79953Q04 SCREW, GREASE FILLER

SCREW, GREASE FILLER

1 000 ₽
47A

22-8M0058389 SCREW,DRAIN (MAGNETIC)

SCREW,DRAIN (MAGNETIC)

1 720 ₽
48

12-191833 WASHER, GREASE FILLER AND DRAIN SCREW

WASHER, GREASE FILLER AND DRAIN SCREW

60 ₽
-

27-89221A80 GASKET SET

GASKET SET

23 890 ₽
-

46-96148A8 WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

6 860 ₽
-

26-55682A1 SEAL REPAIR KIT

SEAL REPAIR KIT

11 240 ₽
