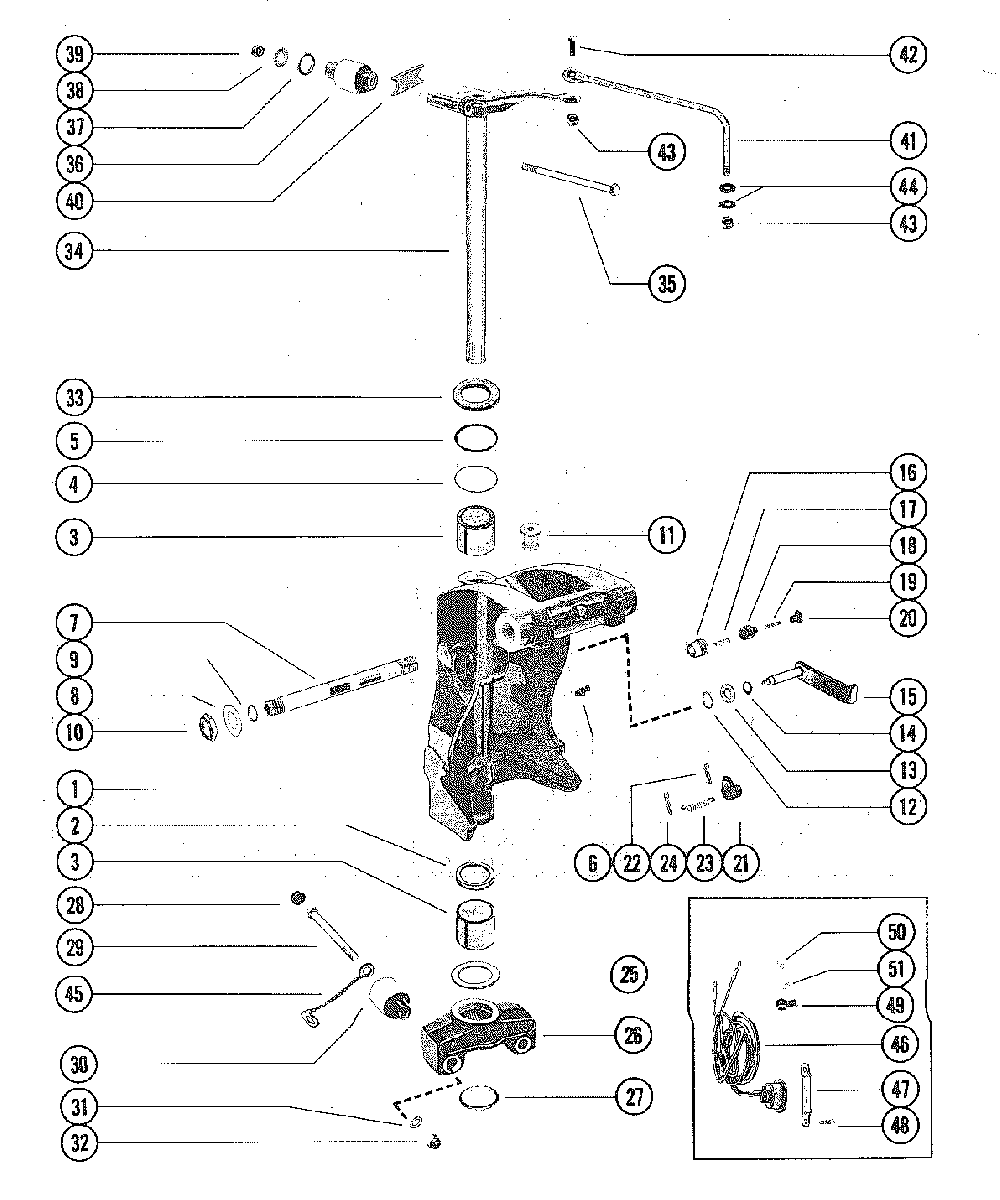

SWIVEL BRACKET AND STEERING ARM для Mercury - V-225 5628028 AND UP

  • №
    Артикул
    Название
  • 1
    1491-9225A3 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 2
    26-87735 OIL SEAL, SWIVEL BRAKET (LOWER)
    OIL SEAL, SWIVEL BRAKET (LOWER)
  • 3
    23-818764 BUSHING, SWIVEL BRACKET - LOWER AND UPPER
    BUSHING, SWIVEL BRACKET - LOWER AND UPPER
  • 4
    25-33466 "O" RING, SWIVEL BRACKET - UPPER
    "O" RING, SWIVEL BRACKET - UPPER
  • 5
    23-67668 SPACER, SWIVEL BRACKET - UPPER
    SPACER, SWIVEL BRACKET - UPPER
  • 6
    22-74036 FITTING, GREASE
    FITTING, GREASE
  • 7
    826125A1 TILT TUBE
    TILT TUBE
  • 8
    13-88750 WAVE WASHER, TILT TUBE
    WAVE WASHER, TILT TUBE
  • 9
    25-48462 "O" RING, TILT TUBE
    "O" RING, TILT TUBE
  • 10
    11-858869 NUT, TILT (7/8'-14)
    NUT, TILT (7/8'-14)
  • 10
    11-82671327 NUT, TILT TUBE (1"-14)
    NUT, TILT TUBE (1"-14)
  • 11
    25-88341 GROMMET, SWIVEL BRACKET
    GROMMET, SWIVEL BRACKET
  • 12
    26-85023 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 13
    12-87161 WASHER, TILT LOCK LEVER
    WASHER, TILT LOCK LEVER
  • 14
    25-48171 "O" RING, TILT LOCK LEVER
    "O" RING, TILT LOCK LEVER
  • 15
    85030A2 LEVER ASSEMBLY, TILT LOCK (PORT)
    LEVER ASSEMBLY, TILT LOCK (PORT)
  • 15
    85028A2 LEVER ASSEMBLY, TILT LOCK (STARBOARD)
    LEVER ASSEMBLY, TILT LOCK (STARBOARD)
  • 16
    23-86600 BUSHING, TILT LEVER RELEASE
    BUSHING, TILT LEVER RELEASE
  • 17
    24-85367 SPRING, TILT LEVER RELEASE
    SPRING, TILT LEVER RELEASE
  • 18
    41052 PLUNGER, TILT LEVER RELEASE
    PLUNGER, TILT LEVER RELEASE
  • 19
    16-88876 STUD, PLUNGER
    STUD, PLUNGER
  • 20
    86603 KNOB, PLUNGER
    KNOB, PLUNGER
  • 21
    864751 COUPLING, TILT LOCK LEVER
    COUPLING, TILT LOCK LEVER
  • 22
    18-87200 COTTER PIN, LEVER TO COUPLING
    COTTER PIN, LEVER TO COUPLING
  • 23
    24-88049 SPRING, TENSION - COUPLING
    SPRING, TENSION - COUPLING
  • 24
    18-93861 COTTER PIN, COUPLING SPRING
    COTTER PIN, COUPLING SPRING
  • 25
    13-78854 WAVE WASHER, BOTTOM YOKE
    WAVE WASHER, BOTTOM YOKE
  • 26
    878182T01 YOKE, BOTTOM
    YOKE, BOTTOM
  • 27
    53-67684 RETAINING RING, BOTTOM YOLK
    RETAINING RING, BOTTOM YOLK
  • 28
    25067 BUMPER, BOTTOM YOKE SCREW
    BUMPER, BOTTOM YOKE SCREW
  • 29
    10-898831 SCREW, BOTTOM YOKE ATTACHING (5-7/8")
    SCREW, BOTTOM YOKE ATTACHING (5-7/8")
  • 30
    77327 MOUNT, BOTTOM YOKE
    MOUNT, BOTTOM YOKE
  • 31
    12-49339 WASHER, BOTTOM YOKE SCREW
    WASHER, BOTTOM YOKE SCREW
  • 32
    11-25096 NUT, BOTTOM YOKE SCREW
    NUT, BOTTOM YOKE SCREW
  • 33
    12-67670 WASHER, THRUST - SWIVEL BRACKET
    WASHER, THRUST - SWIVEL BRACKET
  • 34
    17-840792A1 SWIVEL PIN AND STEERING ARM ASSEMBLY
    SWIVEL PIN AND STEERING ARM ASSEMBLY
  • 35
    10-8M0000491 SCREW, STEERING ARM TO UPPER MOUNT
    SCREW, STEERING ARM TO UPPER MOUNT
  • 36
    77326 MOUNT, RUBBER - UPPER
    MOUNT, RUBBER - UPPER
  • 37
    12-66921 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 38
    12-78688 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 39
    11-34933 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 40
    67754 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 41
    92876A12 STEERING LINK ASSEMBLY
    STEERING LINK ASSEMBLY
  • 42
    10-849838 SCREW
    STEERING LINK TO STEERING ARM (1-1/4")
    SCREW
    STEERING LINK TO STEERING ARM (1-1/4")
  • 43
    11-8M0042636 NUT, STEERING LINK SCREW
    NUT, STEERING LINK SCREW
  • 44
    12-34931 WASHER, STEERING LINK SCREW
    WASHER, STEERING LINK SCREW
  • 45
    88238A10 GROUND WIRE ASSEMBLY
    GROUND WIRE ASSEMBLY
  • 46
    86485A5 TRIM SENDER ASSEMBLY
    TRIM SENDER ASSEMBLY
  • 46
    86485A5 TRIM SENDER ASSEMBLY
    TRIM SENDER ASSEMBLY
  • 46
    86485A6 TILT SWITCH ASSEMBLY
    TILT SWITCH ASSEMBLY
  • 47
    88342 STRAP, SWITCH AND SENDER
    STRAP, SWITCH AND SENDER
  • 48
    10-87926 SCREW, STRAP TO SWIVEL BRACKET
    SCREW, STRAP TO SWIVEL BRACKET
  • 49
    54-54457 CLAMP, SWITCH AND SENDER LEADS
    CLAMP, SWITCH AND SENDER LEADS
  • 50
    10-98256 SCREW, CLAMP TO SWIVEL BRACKET
    SCREW, CLAMP TO SWIVEL BRACKET
  • 51
    12-29245 WASHER, CLAMP SCREW
    WASHER, CLAMP SCREW
  • -
    27-89221A80 GASKET SET
    GASKET SET
