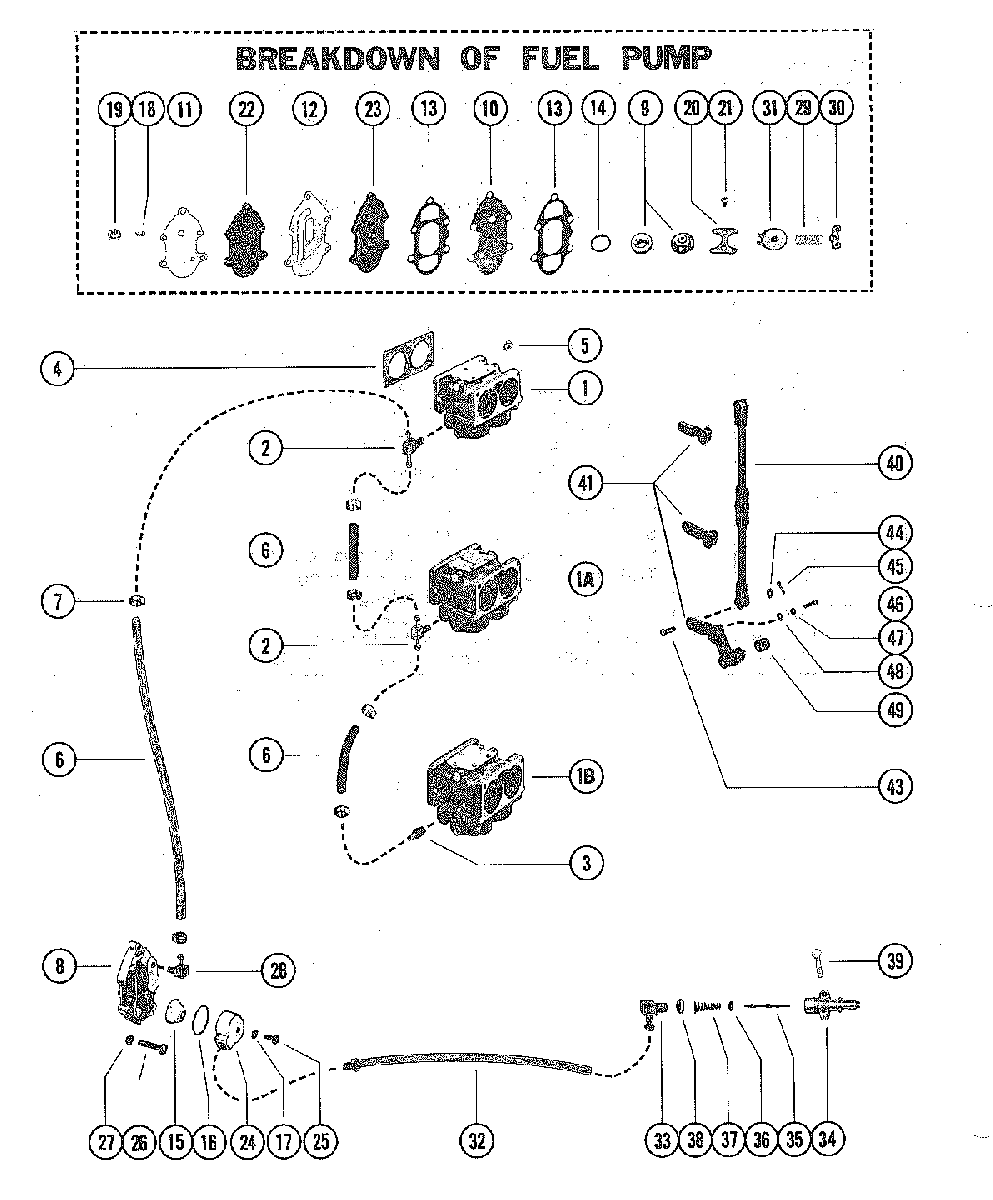

FUEL PUMP AND CARBURETOR для Mercury - V-225 5628028 AND UP

  • №
    Артикул
    Название
  • 1
    1386-7599A1 CARBURETOR (TOP) WH-15
    CARBURETOR (TOP) WH-15
  • 1A
    1386-7599A2 CARBURETOR (CENTER)WH-15
    CARBURETOR (CENTER)WH-15
  • 1B
    1386-7599A3 CARBURETOR (BOTTOM) WH-15
    CARBURETOR (BOTTOM) WH-15
  • 1
    1386-7599A11 CARBURETOR (TOP) WH-20
    CARBURETOR (TOP) WH-20
  • 2
    1386-7599A12 CARBURETOR (CENTER) WH-20
    CARBURETOR (CENTER) WH-20
  • 3
    1386-7599A13 CARBURETOR (BOTTOM) WH-20
    CARBURETOR (BOTTOM) WH-20
  • 2
    1395-7900 TEE, FUEL INLET (UPPER AND MIDDLE)
    TEE, FUEL INLET (UPPER AND MIDDLE)
  • 3
    1395-7901 FITTING, FUEL INLET (LOWER)
    FITTING, FUEL INLET (LOWER)
  • 4
    27-67751 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 5
    11-20184 NUT, CARBURETOR MOUNTING
    NUT, CARBURETOR MOUNTING
  • 6
    32-8M0108355 HOSE, CARBURETOR FUEL PUMP (17"-4")
    HOSE, CARBURETOR FUEL PUMP (17"-4")
  • 7
    54-68424 CLAMP, FUEL HOSE TO CARBURETOR
    CLAMP, FUEL HOSE TO CARBURETOR
  • 8
    88853A1 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 9
    21-30430A11 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 10
    90363A1 DIAPHRAM ASSEMBLY
    DIAPHRAM ASSEMBLY
  • 11
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 12
    90-8M0143356 GASKET, PULSE CHAMBER
    GASKET, PULSE CHAMBER
  • 13
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 14
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 15
    35-59072 SCREEN, FUEL INLET
    SCREEN, FUEL INLET
  • 16
    90-8M0143356 "O" RING, FUEL INLET COVER
    "O" RING, FUEL INLET COVER
  • 17
    90-8M0143356 GASKET, COVER SCREW
    GASKET, COVER SCREW
  • 18
    17-26618 DOWEL PIN, FUEL PUMP LOCATING
    DOWEL PIN, FUEL PUMP LOCATING
  • 19
    21-42657A3 CHECK VALVE ASSEMBLY, FUEL PUMP
    CHECK VALVE ASSEMBLY, FUEL PUMP
  • 20
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 21
    10-43723 SCREW, RETAINER ATTACHING
    SCREW, RETAINER ATTACHING
  • 22
    90728 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 23
    88848 CHAMBER, PULSE - FUEL PUMP
    CHAMBER, PULSE - FUEL PUMP
  • 24
    35-91078A1 COVER, FUEL FILTER
    COVER, FUEL FILTER
  • 25
    10-89766 SCREW, FUEL FILTER COVER (5/8")
    SCREW, FUEL FILTER COVER (5/8")
  • 26
    10-88447 SCREW, FUEL PUMP (1-1/2")
    SCREW, FUEL PUMP (1-1/2")
  • 27
    13-26996 LOCKWASHER, FUEL PUMP SCREW
    LOCKWASHER, FUEL PUMP SCREW
  • 28
    22-54090 FITTING, FUEL OUTLET
    FITTING, FUEL OUTLET
  • 29
    24-86207 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 30
    86026 RETAINER, SPRING
    RETAINER, SPRING
  • 31
    86252 CAP, SPRING END
    CAP, SPRING END
  • 32
    32-89020 FUEL LINE, INLET (6-3/4")
    FUEL LINE, INLET (6-3/4")
  • 33
    22-63981 FITTING, INLET FUEL LINE (90 DEG.)
    FITTING, INLET FUEL LINE (90 DEG.)
  • 34
    22833 ADAPTOR, CHECK UNIT
    ADAPTOR, CHECK UNIT
  • 35
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 36
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 37
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 38
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 39
    10-76596 SCREW, ADAPTOR TO LOWER BRACKET
    SCREW, ADAPTOR TO LOWER BRACKET
  • 40
    87604 THROTTLE LINK
    THROTTLE LINK
  • 41
    828277A1 THROTTLE LEVER ASSEMBLY
    THROTTLE LEVER ASSEMBLY
  • 43
    17-67297 CLEVIS PIN
    THROTTLE LEVERS TO THROTTLE LINK
    CLEVIS PIN
    THROTTLE LEVERS TO THROTTLE LINK
  • 44
    12-89302 WASHER, CLEVIS PIN
    WASHER, CLEVIS PIN
  • 45
    18-26953 COTTER PIN, CLEVIS PIN ATTACHING
    COTTER PIN, CLEVIS PIN ATTACHING
  • 46
    10-15124 SCREW
    THROTTLE LEVERS TO THROTTLE STOP (3/4")
    SCREW
    THROTTLE LEVERS TO THROTTLE STOP (3/4")
  • 47
    13-26996 LOCKWASHER, THROTTLE LEVERS SCREW
    LOCKWASHER, THROTTLE LEVERS SCREW
  • 48
    12-24676 WASHER, THROTTLE LEVERS SCREW
    WASHER, THROTTLE LEVERS SCREW
  • 49
    67748 ROLLER, LOWER THROTTLE LEVER
    ROLLER, LOWER THROTTLE LEVER
  • -
    27-89221A80 GASKET SET
    GASKET SET
