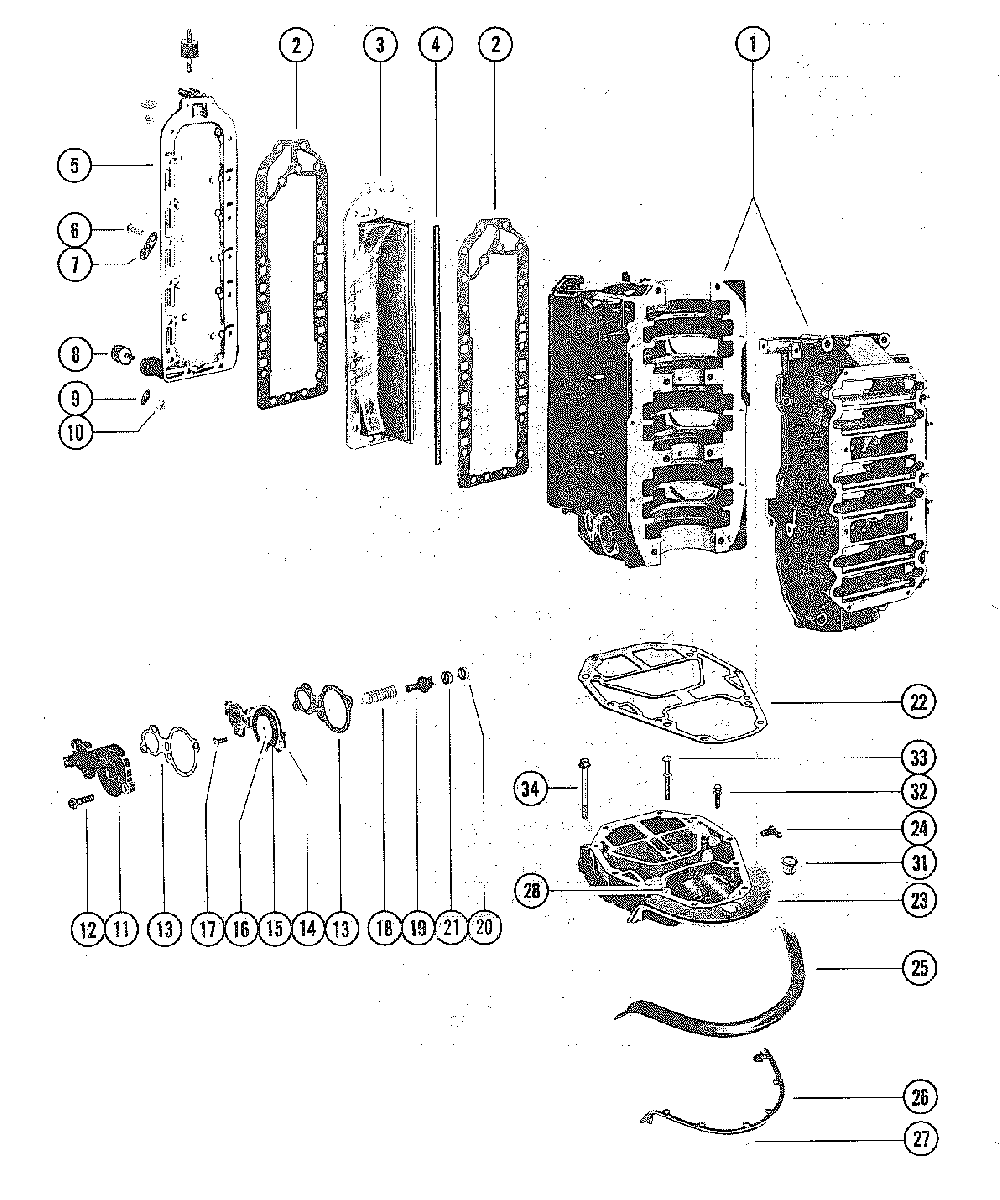

EXHAUST MANIFOLD AND EXHAUST PLATE для Mercury - V-225 5628028 AND UP

  • №
    Артикул
    Название
  • 1
    858-7801A3 CYLINDER BLOCK AND CRANKCASE ASS'Y
    CYLINDER BLOCK AND CRANKCASE ASS'Y
  • 2
    27-904841 GASKET, DIVIDER PLATE
    GASKET, DIVIDER PLATE
  • 3
    99169A1 PLATE, DIVIDER
    PLATE, DIVIDER
  • 4
    26-814754 SEAL, DIVIDER PLATE
    SEAL, DIVIDER PLATE
  • 5
    95067 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 6
    10-74824 SCREW, COVER AND PLATE TO CYLINDER BLOCK (1-1/4")
    SCREW, COVER AND PLATE TO CYLINDER BLOCK (1-1/4")
  • 7
    54-47483 "J" CLIP, COVER AND PLATE SCREW
    "J" CLIP, COVER AND PLATE SCREW
  • 8
    90435 MOUNT, RUBBER - EXHAUST MANIFOLD COVER
    MOUNT, RUBBER - EXHAUST MANIFOLD COVER
  • 9
    12-21249 WASHER, RUBBER MOUNT
    WASHER, RUBBER MOUNT
  • 10
    11-8267089 NUT, RUBBER MOUNT
    NUT, RUBBER MOUNT
  • 11
    8M0039767 COVER, RELIEF VALVE
    COVER, RELIEF VALVE
  • 12
    10-38837 SCREW, COVER TO CYLINDER BLOCK (1-1/8")
    SCREW, COVER TO CYLINDER BLOCK (1-1/8")
  • 13
    27-78690002 GASKETT, RELIEF VALVE PLATE
    GASKETT, RELIEF VALVE PLATE
  • 14
    65664 PLATE, RELIEF VALVE
    PLATE, RELIEF VALVE
  • 15
    648771 DIAPHRAM
    DIAPHRAM
  • 16
    12-76451 WASHER, DIAPHRAGM SCREW
    WASHER, DIAPHRAGM SCREW
  • 17
    10-69570 SCREW, DIAPHRAGM TO PLATE (3/4")
    SCREW, DIAPHRAGM TO PLATE (3/4")
  • 18
    24-64878 SPRING, COMPRESSION - POPPET VALVE
    SPRING, COMPRESSION - POPPET VALVE
  • 19
    86596 POPPET, VALVE
    POPPET, VALVE
  • 20
    65848 CARRIER, POPPET RELIEF
    CARRIER, POPPET RELIEF
  • 21
    25-64872 GROMMET, POPPET RELIEF
    GROMMET, POPPET RELIEF
  • 22
    27-8231422 GASKET, EXHAUST PLATE
    GASKET, EXHAUST PLATE
  • 23
    41944A5 PLATE ASSEMBLY, EXHAUST
    PLATE ASSEMBLY, EXHAUST
  • 24
    22-996642 ELBOW, EXHAUST PLATE
    ELBOW, EXHAUST PLATE
  • 25
    707482 SEAL, EXHAUST PLATE
    SEAL, EXHAUST PLATE
  • 26
    680101 BRACKET, SEAL REATAINING
    BRACKET, SEAL REATAINING
  • 27
    10-48408 SCREW, BRACKET TO EXHAUST PLATE (1/2")
    SCREW, BRACKET TO EXHAUST PLATE (1/2")
  • 28
    17-43044 DOWEL PIN, LOCATING - EXHAUST PLATE
    DOWEL PIN, LOCATING - EXHAUST PLATE
  • 31
    23-27132 BUSHING, EXHAUST PLATE
    BUSHING, EXHAUST PLATE
  • 32
    10-66727 SCREW, EXHAUST PLATE (1-1/4")
    SCREW, EXHAUST PLATE (1-1/4")
  • 33
    10-68783 SCREW, EXHAUST PLATE (2-1/2")
    SCREW, EXHAUST PLATE (2-1/2")
  • 34
    10-898833 SCREW, EXHAUST PLATE (3-1/2")
    SCREW, EXHAUST PLATE (3-1/2")
  • -
    27-89221A80 GASKET SET
    GASKET SET
