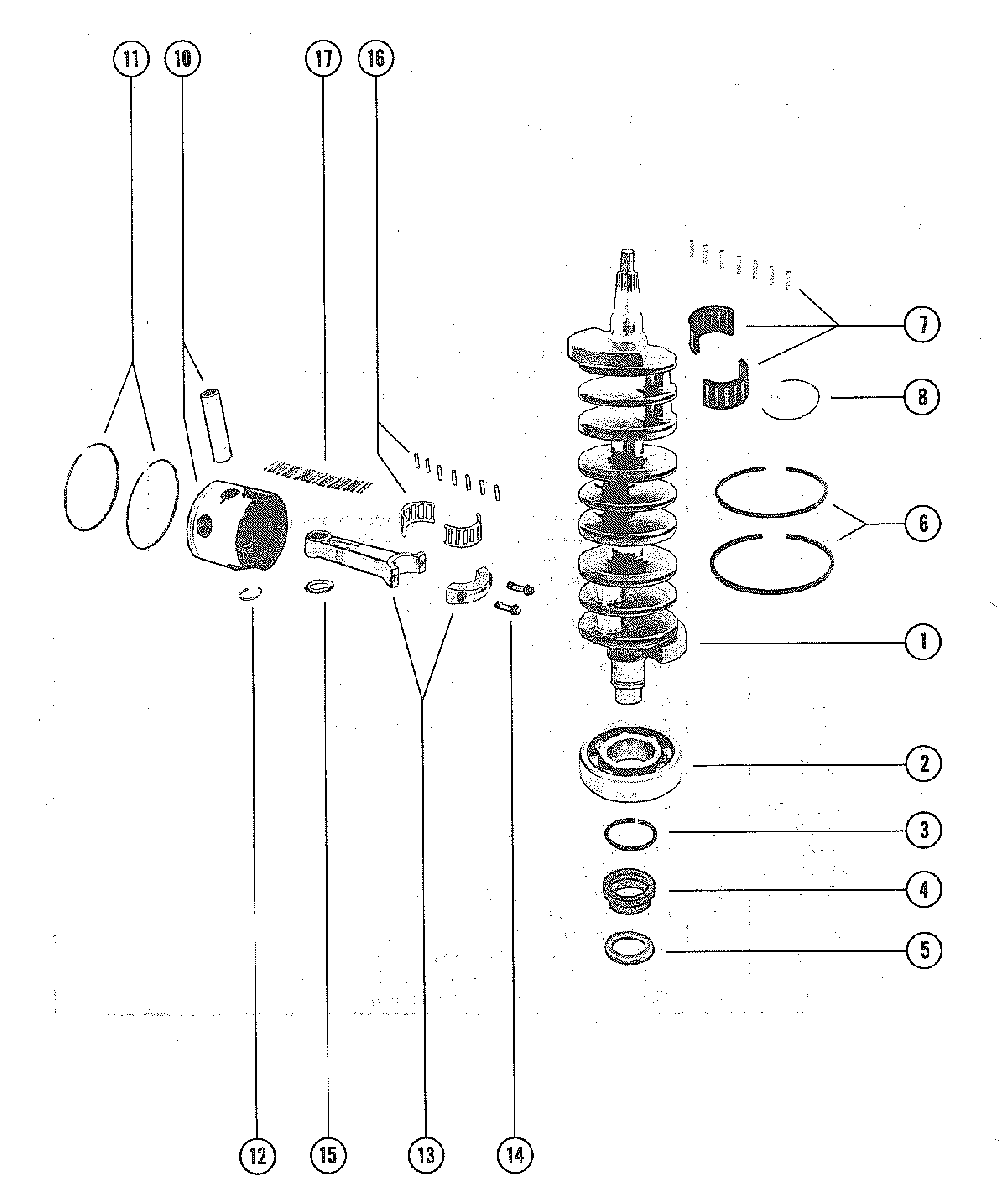

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - V-225 5628028 AND UP

  • №
    Артикул
    Название
  • 1
    455-8745T5 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-67923T BALL BEARING, CRANKSHAFT (LOWER)
    BALL BEARING, CRANKSHAFT (LOWER)
  • 3
    53-67446 RETAINING RING, BALL BEARING
    RETAINING RING, BALL BEARING
  • 4
    54196A6 CARRIER ASSEMBLY, SEAL
    CARRIER ASSEMBLY, SEAL
  • 5
    65800 SEAL, CARRIER
    SEAL, CARRIER
  • 6
    39-67377T RING, SEALING - CRANKSHAFT (.124 THICK)
    RING, SEALING - CRANKSHAFT (.124 THICK)
  • 7
    31-93495T ROLLER BEARING, CRANKSHAFT
    ROLLER BEARING, CRANKSHAFT
  • 8
    53-67444 RETAINING RING, ROLLER BEARING
    RETAINING RING, ROLLER BEARING
  • 10
    766-8666T41 PISTON ASSEMBLY (STARBOARD)
    PISTON ASSEMBLY (STARBOARD)
  • 10
    766-8667T41 PISTON ASSEMBLY (PORT)
    PISTON ASSEMBLY (PORT)
  • 11
    39-813011A12 PISTON RING ASSEMBLY
    PISTON RING ASSEMBLY
  • 12
    53-857196 LOCK RING, PISTON
    LOCK RING, PISTON
  • 13
    636-8119A6 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 14
    10-76349 SCREW, CONNECTING ROD
    SCREW, CONNECTING ROD
  • 15
    12-8M0032839 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • 16
    31-8M0045428 ROLLER BEARING ASSEMBLY, CRANKSHAFT END
    ROLLER BEARING ASSEMBLY, CRANKSHAFT END
  • 17
    29-67483 NEEDLE BEARING, PISTON END
    NEEDLE BEARING, PISTON END
  • -
    27-89221A80 GASKET SET
    GASKET SET
