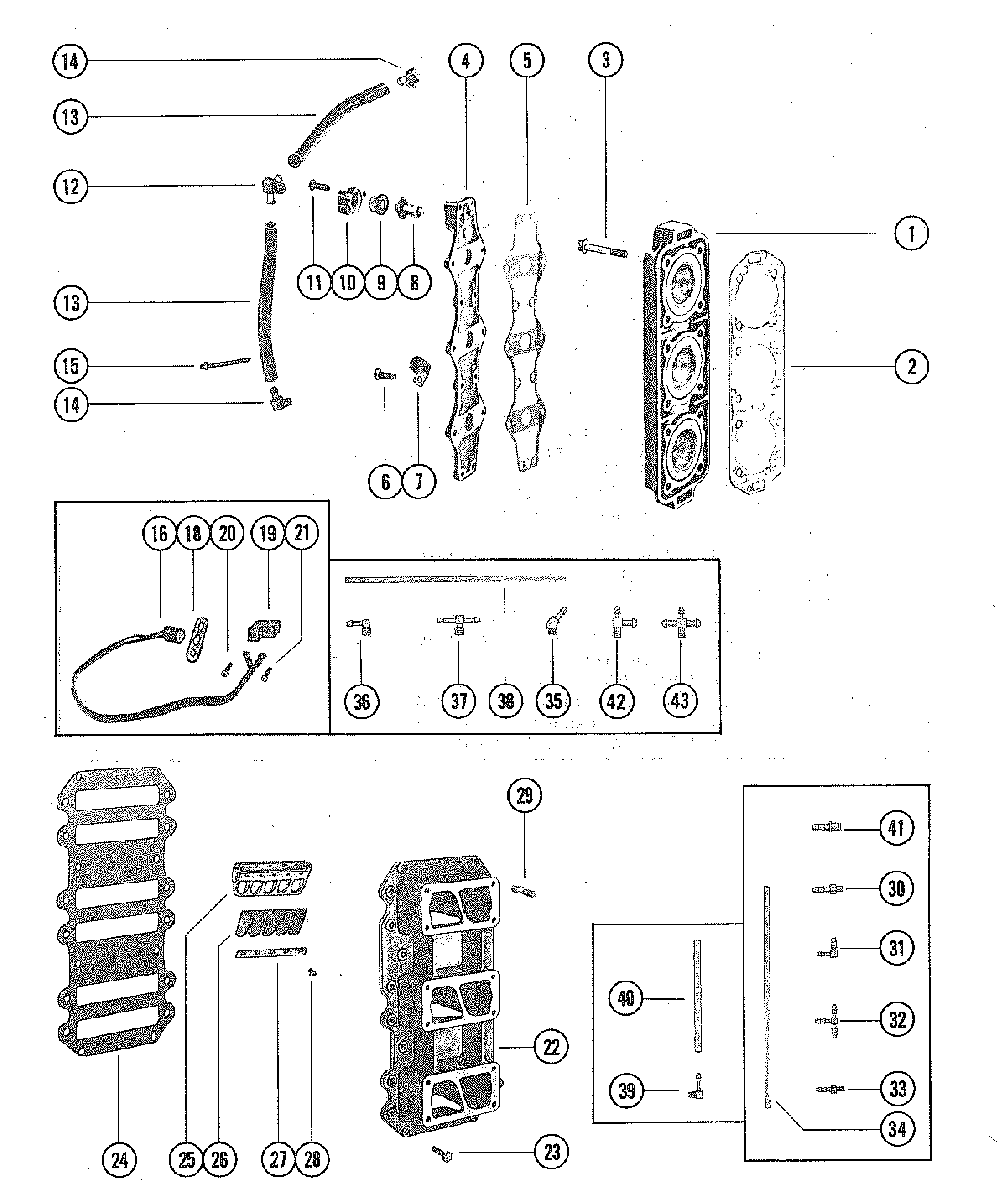

REED BLOCK AND CYLINDER HEAD для Mercury - V-225 5628028 AND UP

  • №
    Артикул
    Название
  • 1
    95095 CYLINDER HEAD
    CYLINDER HEAD
  • 2
    27-41244T02 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 3
    10-668631 SCREW, CYLINDER HEAD (2-1/2")
    SCREW, CYLINDER HEAD (2-1/2")
  • 4
    1026-7270A1 COVER ASSEMBLY, CYLINDER
    COVER ASSEMBLY, CYLINDER
  • 5
    27-65788 GASKET, CYLINDER COVER
    GASKET, CYLINDER COVER
  • 6
    10-74824 SCREW, CYLINDER COVER (1-1/4")
    SCREW, CYLINDER COVER (1-1/4")
  • 7
    54-47483 "J" CLIP, CYLINDER COVER SCREW
    "J" CLIP, CYLINDER COVER SCREW
  • 8
    75692 THERMOSTAT
    THERMOSTAT
  • 9
    27-62386001 GASKET, THERMOSTAT
    GASKET, THERMOSTAT
  • 10
    90390A1 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 11
    10-66023 SCREW, THERMOSTAT COVER (2"- FLANGE HEAD)
    SCREW, THERMOSTAT COVER (2"- FLANGE HEAD)
  • 11
    10-815549 SCREW, THERMOSTAT COVER (2")
    SCREW, THERMOSTAT COVER (2")
  • 11
    10-35386 SCREW, THERMOSTAT COVER (1")
    SCREW, THERMOSTAT COVER (1")
  • 12
    22-68728 FITTING, THERMOSTAT COVER TO WATER HOSES
    FITTING, THERMOSTAT COVER TO WATER HOSES
  • 13
    32-77653101 HOSE, WATER DISTRIBUTION (10" AND 14")
    HOSE, WATER DISTRIBUTION (10" AND 14")
  • 14
    22-687271 FITTING, ELBOW - WATER HOSES
    FITTING, ELBOW - WATER HOSES
  • 15
    61990 STA-STRAP, WATER HOSES
    STA-STRAP, WATER HOSES
  • 16
    78799 TEMPERATURE SENDER
    TEMPERATURE SENDER
  • 18
    78286 COVER, TEMPERATURE SENDER
    COVER, TEMPERATURE SENDER
  • 19
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 20
    10-69079 SCREW
    TERMINAL BLOCK TO CYLINDER BLOCK (3/8")
    SCREW
    TERMINAL BLOCK TO CYLINDER BLOCK (3/8")
  • 21
    10-69079 SCREW, LEADS TO TERMINAL BLOCK (3/8")
    SCREW, LEADS TO TERMINAL BLOCK (3/8")
  • 22
    87628F2 HOUSING, REED BLOCK (7/8")
    HOUSING, REED BLOCK (7/8")
  • 24
    27-127754 GASKET, REED BLOCK HOUSING
    GASKET, REED BLOCK HOUSING
  • 25
    87692 REED BLOCK
    REED BLOCK
  • 26
    34-19719A1 REED ASSEMBLY
    REED ASSEMBLY
  • 27
    903911 REED STOP
    REED STOP
  • 28
    10-57583T SCREW
    REED AND REED STOPS TO REED BLOCK (3/8")
    SCREW
    REED AND REED STOPS TO REED BLOCK (3/8")
  • 29
    16-270372 STUD, CARBURETOR MOUNTING
    STUD, CARBURETOR MOUNTING
  • 30
    21-426585 CHECK VALVE, BLEED HOSE (STRAIGHT)
    CHECK VALVE, BLEED HOSE (STRAIGHT)
  • 31
    22-15133 ELBOW, BLEED H OSE (PRESS IN)
    ELBOW, BLEED H OSE (PRESS IN)
  • 32
    22-59169003 TEE, BLEED HOSE
    TEE, BLEED HOSE
  • 33
    22-56759 FITTING, BLEED HOSE (PRESS IN)
    FITTING, BLEED HOSE (PRESS IN)
  • 34
    32-9938779 HOSE, BLEED
    HOSE, BLEED
  • 35
    22-782792 ELBOW, REED BLOCK (45 DEG.)
    ELBOW, REED BLOCK (45 DEG.)
  • 36
    22-996642 ELBOW, REED BLOCK (90 DEG.)
    ELBOW, REED BLOCK (90 DEG.)
  • 37
    22-8585531 TEE, REED BLOCK
    TEE, REED BLOCK
  • 38
    32-7889214 HOSE, REED BLOCK (2-3/4"-4")
    HOSE, REED BLOCK (2-3/4"-4")
  • 39
    22-54090 FITTING, PULSE HOSE
    FITTING, PULSE HOSE
  • 40
    32-9072925 HOSE, PULSE (6-3/4")
    HOSE, PULSE (6-3/4")
  • 41
    21-426233 CHECK VALVE, BLEED HOSE (PRESS-IN)
    CHECK VALVE, BLEED HOSE (PRESS-IN)
  • 42
    22-93890 ELBOW, REED BLOCK (WITH 1/16" BARB) - 90 DEG.
    ELBOW, REED BLOCK (WITH 1/16" BARB) - 90 DEG.
  • 43
    22-93891 TEE, REED BLOCK (WITH 1/16" BARB)
    TEE, REED BLOCK (WITH 1/16" BARB)
  • -
    27-89221A80 GASKET SET
    GASKET SET
