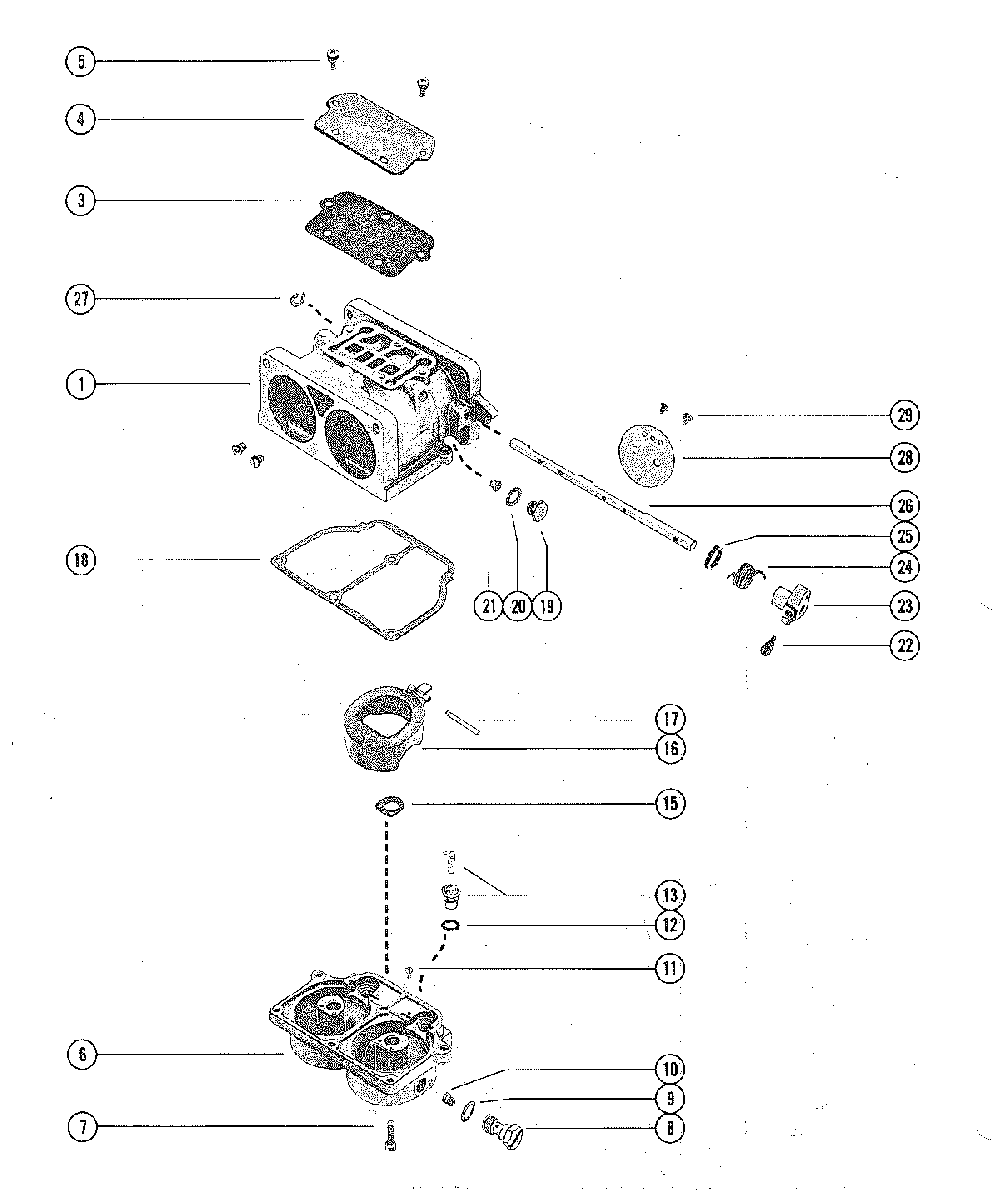

CARBURETOR ASSEMBLY для Mercury - V-225 5628028 AND UP

  • №
    Артикул
    Название
  • 1386-7599A1 CARBURETIR (TOP) WH-5
    CARBURETIR (TOP) WH-5
  • 1
    1386-7599A2 CARBURETOR (CENTER) WH-5
    CARBURETOR (CENTER) WH-5
  • 1
    1386-7599A3 CARBURETOR (BOTTOM) WH-5
    CARBURETOR (BOTTOM) WH-5
  • 1
    1386-7599A11 CARBURETOR (TOP) WH-20
    CARBURETOR (TOP) WH-20
  • 1
    1386-7599A12 CARBURETOR (CENTER) WH-20
    CARBURETOR (CENTER) WH-20
  • 1
    1386-7599A13 CARBURETOR (BOTTOM) WH-20
    CARBURETOR (BOTTOM) WH-20
  • 3
    90-8M0143356 GASKET, COVER PLATE
    GASKET, COVER PLATE
  • 4
    1395-6032 PLATE, COVER
    PLATE, COVER
  • 5
    90-8M0143356 SCREW, COVER PLATE
    SCREW, COVER PLATE
  • 6
    1395-7823 FUEL BOWL (TOP)
    FUEL BOWL (TOP)
  • 6
    1395-7822 FUEL BOWL (CENTER/BOTTOM)
    FUEL BOWL (CENTER/BOTTOM)
  • 7
    90-8M0143356 SCREW, FUEL BOWL
    SCREW, FUEL BOWL
  • 8
    1395-6025 PLUG, MAIN JET
    PLUG, MAIN JET
  • 9
    90-8M0143356 GASKET, MAIN JET
    GASKET, MAIN JET
  • 10
    1395-6207 JET, MAIN FUEL (.072)
    JET, MAIN FUEL (.072)
  • 11
    90-8M0143356 SCREW, FLOAT PIN
    SCREW, FLOAT PIN
  • 12
    90-8M0143356 GASKET, INLET NEEDLE AND SEAT
    GASKET, INLET NEEDLE AND SEAT
  • 13
    1395-7824 INLET NEEDLE AND SEAT ASSEMBLY
    INLET NEEDLE AND SEAT ASSEMBLY
  • 15
    90-8M0143356 GASKET, NOZZLE BOSS
    GASKET, NOZZLE BOSS
  • 16
    1395-9267 FLOAT
    FLOAT
  • 17
    90-8M0143356 PIN, FLOAT LEVER
    PIN, FLOAT LEVER
  • 18
    90-8M0143356 GASKET, FUEL BOWL
    GASKET, FUEL BOWL
  • 19
    1395-4541 PLUG, IDLE AIR BLEED JET
    PLUG, IDLE AIR BLEED JET
  • 20
    90-8M0143356 GASKET, BLEED JEY PLUG
    GASKET, BLEED JEY PLUG
  • 21
    1399-5315 JET, IDLE AIR (.042) - WH-15
    JET, IDLE AIR (.042) - WH-15
  • 19
    1399-5317 JET, IDLE AIR (.046 - WH-20)
    JET, IDLE AIR (.046 - WH-20)
  • 22
    1395-6027 SCREW, THROTTLE LEVER
    SCREW, THROTTLE LEVER
  • 23
    87607 LEVER, THROTTLE
    LEVER, THROTTLE
  • 24
    90-8M0143356 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 25
    1395-6031 SPACER, THROTTLE LEVER
    SPACER, THROTTLE LEVER
  • 26
    1395-6022 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 27
    90-8M0143356 RING, RETAINER - THROTTLE SHAFT
    RING, RETAINER - THROTTLE SHAFT
  • 28
    1395-6023 VALVE, THROTTLE
    VALVE, THROTTLE
  • 29
    90-8M0143356 SCREW, THROTTLE VALVE
    SCREW, THROTTLE VALVE
  • -
    1395-6452 GASKET AND PACKING SET
    GASKET AND PACKING SET
  • -
    1395-7826 REPAIR PARTS KIT
    REPAIR PARTS KIT
