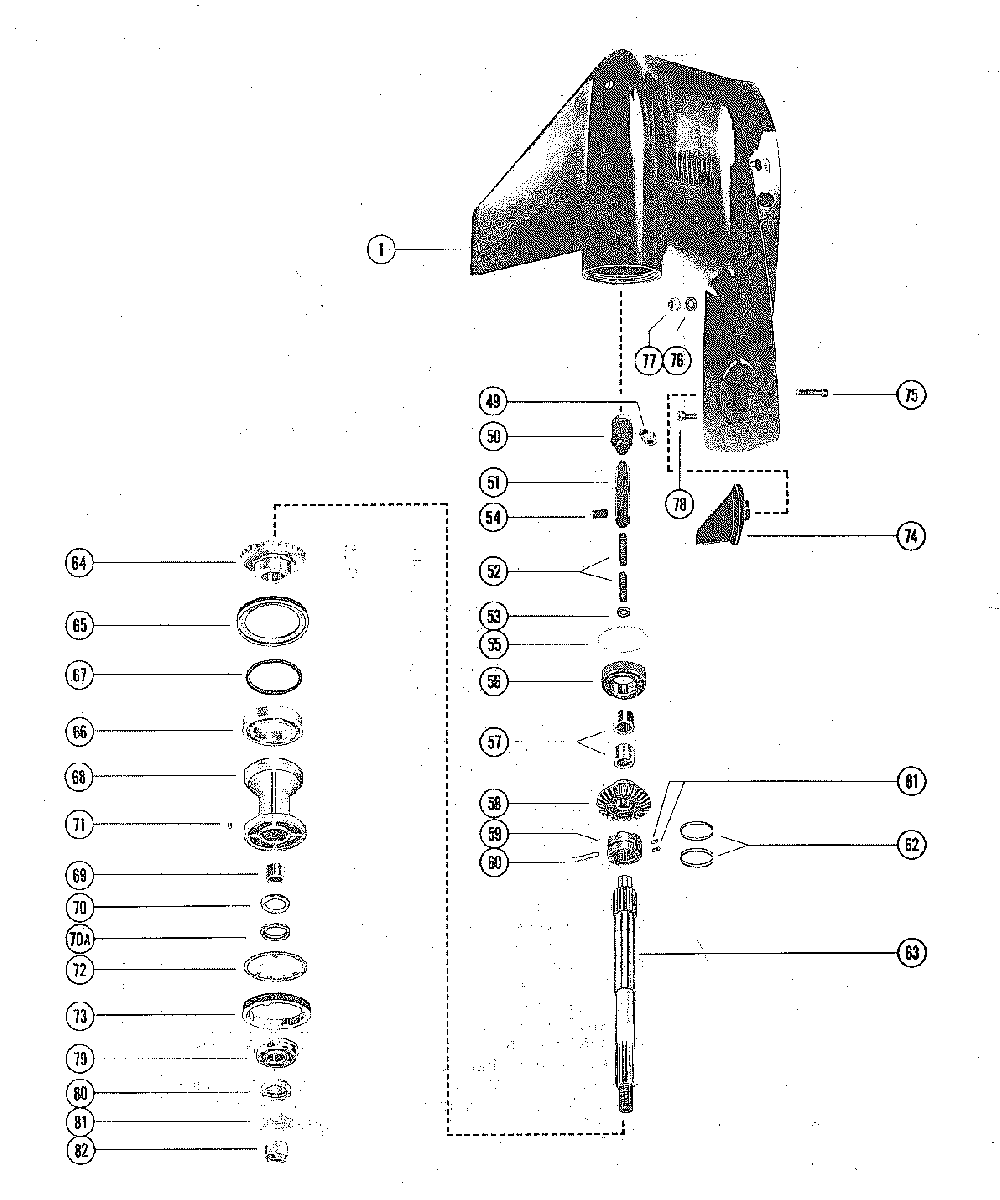

GEAR HOUSING (PROPELLER SHAFT) для Mercury - V-225 5628028 AND UP

  • №
    Артикул
    Название
  • -
    1647-9148T84 GEAR HOUSING ASS'Y,COMP.(LONG SHAFT)
    GEAR HOUSING ASS'Y,COMP.(LONG SHAFT)
  • -
    1647-9148T85 GEAR HOUSING ASS'Y,COMP.(EXTRA LONG SHAFT)
    GEAR HOUSING ASS'Y,COMP.(EXTRA LONG SHAFT)
  • 1
    1647-8688T9 GEAR HOUSING ASS'Y
    SEE "TRANSOM BRACKETS" FOR BREAKDOWN
    GEAR HOUSING ASS'Y
    SEE "TRANSOM BRACKETS" FOR BREAKDOWN
  • 49/50
    89594A1 CAM FOLLOWER
    CAM FOLLOWER
  • 51
    79911A1 ROD,CLUTCH ACTUATOR
    ROD,CLUTCH ACTUATOR
  • 52
    24-79910 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 53
    12-78910 WASHER,COMPRESSION SPRING
    WASHER,COMPRESSION SPRING
  • 54
    17-8M0084245 PIN, SPRING LOCATOR
    PIN, SPRING LOCATOR
  • 55
    15-47397A1 SHIM, BEARING OUTER RACE(.002-3-5-10)
    SHIM, BEARING OUTER RACE(.002-3-5-10)
  • 56
    31-78172A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 57
    31-73363T ROLLER BEARING, FORWARD GEAR
    ROLLER BEARING, FORWARD GEAR
  • 58
    43-43491T1 FORWARD GEAR
    FORWARD GEAR
  • 59
    52-8M0100493 RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 60
    17-8M0084243 CROSS PIN,RATCHET TO PROPELLER SHAFT
    CROSS PIN,RATCHET TO PROPELLER SHAFT
  • 61
    17-78909 DETENT PIN, RATCHET
    DETENT PIN, RATCHET
  • 62
    24-78962 SPRING, RETAINING-CROSS PIN
    SPRING, RETAINING-CROSS PIN
  • 63
    44-94148 PROPELLER SHAFT
    PROPELLER SHAFT
  • 64
    43-43491T1 REVERSE GEAR
    REVERSE GEAR
  • 65
    681001 THRUST RING
    BEARING CARRIER TO GEAR HOUSING
    THRUST RING
    BEARING CARRIER TO GEAR HOUSING
  • 66
    30-88957T BALL BEARING, REVERSE GEAR
    BALL BEARING, REVERSE GEAR
  • 67
    25-31534 "O"RING, BEARING CARRIER
    "O"RING, BEARING CARRIER
  • 68
    43567T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 69
    31-30956T ROLLER BEARING, BEARING CARRIER
    ROLLER BEARING, BEARING CARRIER
  • 70
    26-76868 OIL SEAL, BEARING CARRIER (INNER)
    OIL SEAL, BEARING CARRIER (INNER)
  • 70A
    26-70081 OIL SEAL, BEARING CARRIER (OUTER)-CUTTER
    OIL SEAL, BEARING CARRIER (OUTER)-CUTTER
  • 71
    28-30281 KEY,LOCATING-BEARING CARRIER
    KEY,LOCATING-BEARING CARRIER
  • 72
    14-79447 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 73
    8M2000347 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 74
    97-31640Q4 TRIM TAB, GEAR HOUSING
    TRIM TAB, GEAR HOUSING
  • 75
    10-66024 SCREW,TRIM TAB TO GEAR HOUSING (1-3/4")
    SCREW,TRIM TAB TO GEAR HOUSING (1-3/4")
  • 76
    12-45176 WASHER, DRIVE SHAFT HOUSING STUDS
    WASHER, DRIVE SHAFT HOUSING STUDS
  • 77
    11-34933 NUT,DRIVE SHAFT HOUSING STUDS
    NUT,DRIVE SHAFT HOUSING STUDS
  • 78
    10-65210 SCREW, GEAR HOUSING ( LONG SHAFT)
    SCREW, GEAR HOUSING ( LONG SHAFT)
  • 78
    10-74727 SCREW, GEAR HOUSING (EXTRA LONG SHAFT)
    SCREW, GEAR HOUSING (EXTRA LONG SHAFT)
  • 79
    12-835467Q01 THRUST HUB
    THRUST HUB
  • 80
    12-31211Q03 WASHER,SPLINED-PROPELLER NUT
    WASHER,SPLINED-PROPELLER NUT
  • 81
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 82
    11-52707Q1 PROPELLER NUT
    PROPELLER NUT
  • -
    27-89221A80 GASKET SET
    GASKET SET
