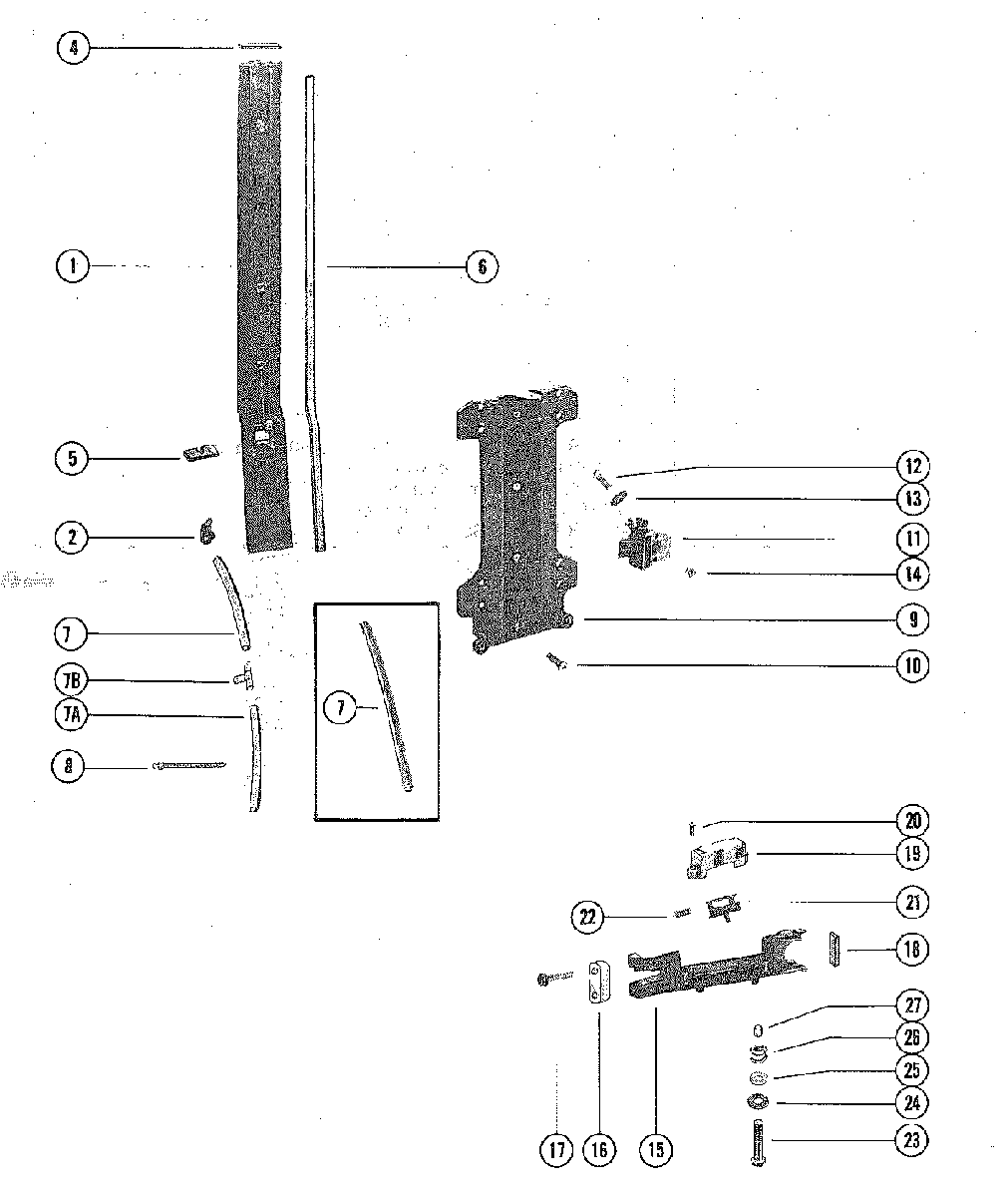

COWL MOUNTING BRACKET для Mercury - V-225 5628028 AND UP

  • №
    Артикул
    Название
  • 1
    76258A2 BRACKET, REAR COWL
    BRACKET, REAR COWL
  • 2
    22-76256 NOZZLE, TELL TALE
    NOZZLE, TELL TALE
  • 4
    67984 SEAL, REAR COWL BRACKET TO COWL
    SEAL, REAR COWL BRACKET TO COWL
  • 5
    67228 SEAL, REAR COWL BRACKET TO COWL
    SEAL, REAR COWL BRACKET TO COWL
  • 6
    67999 SEAL, REAR COWL BRACKET TO COWL
    SEAL, REAR COWL BRACKET TO COWL
  • 7
    32-8M0108355 HOSE, TELL TALE (9") - USE WITHOUT REF. #7B TEE
    HOSE, TELL TALE (9") - USE WITHOUT REF. #7B TEE
  • 7A
    32-8M0108355 HOSE, TELL TALE (4") - USE WITH REF. #7B TEE
    HOSE, TELL TALE (4") - USE WITH REF. #7B TEE
  • 7B
    22-90824001 TEE, TELL TALE HOSE - USE WITH REF. #7B TEE
    TEE, TELL TALE HOSE - USE WITH REF. #7B TEE
  • 8
    61990 STA-STRAP, TELL TALE HOSE
    STA-STRAP, TELL TALE HOSE
  • 9
    86386A1 BRACKET ASSEMBLY, COWL SUPPORT
    BRACKET ASSEMBLY, COWL SUPPORT
  • 10
    10-66687 SCREW, REAR COWL BRACKET (1-1/2")
    SCREW, REAR COWL BRACKET (1-1/2")
  • 11
    85651 HOUSING, COWL HINGE - PORT
    HOUSING, COWL HINGE - PORT
  • 11
    85650 HOUSING, COWL HINGE - STARBOARD
    HOUSING, COWL HINGE - STARBOARD
  • 12
    10-64278 SCREW, COWL HINGE HOUSING (1")
    SCREW, COWL HINGE HOUSING (1")
  • 13
    12-20583 WASHER, COWL HINGE HOUSING SCREW
    WASHER, COWL HINGE HOUSING SCREW
  • 14
    11-8267089 NUT, COWL HINGE HOUSING SCREW
    NUT, COWL HINGE HOUSING SCREW
  • 15
    87587 BRACKET, COWL MOUNTING - LOWER
    BRACKET, COWL MOUNTING - LOWER
  • 16
    88804 RETAINER, WIRING HARNESS
    RETAINER, WIRING HARNESS
  • 17
    10-88865 SCREW, RETAINER TO BRACKET (1-3/4")
    SCREW, RETAINER TO BRACKET (1-3/4")
  • 18
    88508 SEAL, CONTROL CABLES
    SEAL, CONTROL CABLES
  • 19
    67241 HOUSING, COWL LATCH
    HOUSING, COWL LATCH
  • 20
    10-57807 SCREW, COWL LATCH HOUSING (3/4")
    SCREW, COWL LATCH HOUSING (3/4")
  • 21
    87608 COWL LATCH
    COWL LATCH
  • 22
    24-60295 SPRING, COWL LATCH
    SPRING, COWL LATCH
  • 23
    10-69093 SCREW, GROMMET AND LOWER BRACKET
    SCREW, GROMMET AND LOWER BRACKET
  • 24
    12-35280 WASHER, LOWER BRACKET SCREW (LARGE)
    WASHER, LOWER BRACKET SCREW (LARGE)
  • 25
    12-69057 WASHER, LOWER BRACKET SCREW (SMALL)
    WASHER, LOWER BRACKET SCREW (SMALL)
  • 26
    25-88033 GROMMET, LOWER BRACKET
    GROMMET, LOWER BRACKET
  • 27
    23-88180 BUSHING, LOWER BRACKET GROMMET
    BUSHING, LOWER BRACKET GROMMET
