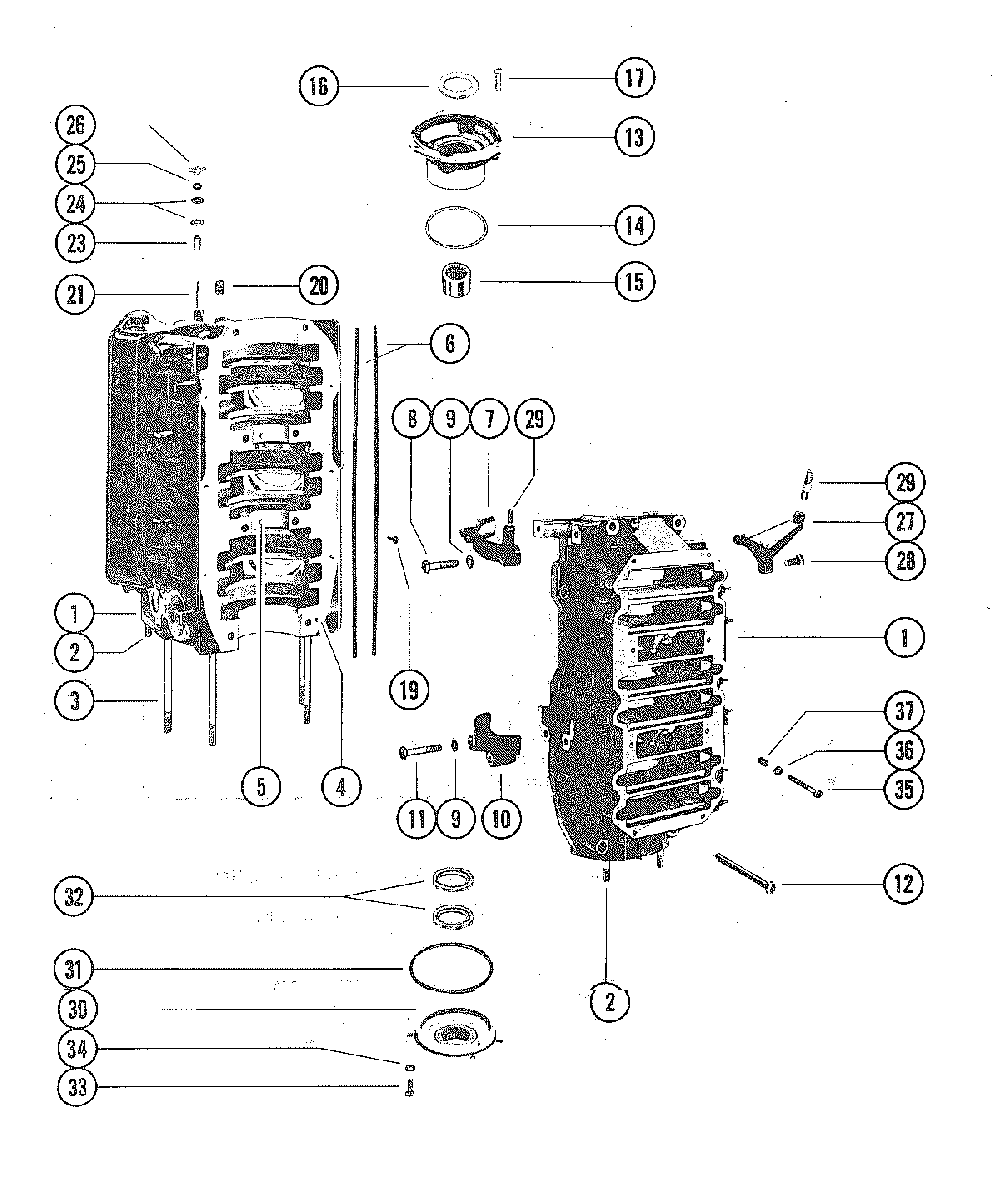

CYLINDER BLOCK AND END CAPS для Mercury - V-225 5628028 AND UP

  • №
    Артикул
    Название
  • 1
    858-7801A3 CYLINDER BLOCK AND CRANKCASE ASS'Y
    CYLINDER BLOCK AND CRANKCASE ASS'Y
  • 2
    16-76175 STUD, POWERHEAD (1-7/8")
    STUD, POWERHEAD (1-7/8")
  • 3
    16-670654 STUD, POWERHEAD (5-1/2")
    STUD, POWERHEAD (5-1/2")
  • 3
    16-8M0034454 STUD, POWERHEAD (6-15/16")
    STUD, POWERHEAD (6-15/16")
  • 4
    17-43044 DOWELL PIN, LOCATING
    DOWELL PIN, LOCATING
  • 5
    17-8M0036405 DOWEL PIN, CYLINDER BLOCK
    DOWEL PIN, CYLINDER BLOCK
  • 6
    27-11338 GASELETT, SEALING
    GASELETT, SEALING
  • 7
    8M0088723 COVER, STARTER MOTOR (UPPER)
    COVER, STARTER MOTOR (UPPER)
  • 8
    10-73657 SCREW, COVER TO CRANKCASE (1-1/2")
    SCREW, COVER TO CRANKCASE (1-1/2")
  • 9
    13-26993 LOCKWASHER, STARTER MOTOR COVER SCREW
    LOCKWASHER, STARTER MOTOR COVER SCREW
  • 10
    76867 COVER, STARTER MOTOR (LOWER)
    COVER, STARTER MOTOR (LOWER)
  • 11
    10-815549 SCREW, COVER TO CRANKCASE (2")
    SCREW, COVER TO CRANKCASE (2")
  • 12
    10-66717 SCREW, CRANKCASE TO CYLINDER BLOCK (3-1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (3-1/4")
  • 12
    10-74824 SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/4")
  • 13
    1159-8454T2 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 14
    25-67206 "O" RING, END CAP (3" I.D.)
    "O" RING, END CAP (3" I.D.)
  • 14
    25-54029 "O" RING END CAP (2-7/8" I.D.)
    "O" RING END CAP (2-7/8" I.D.)
  • 15
    31-93496T ROLLER BEARING, END CAP
    ROLLER BEARING, END CAP
  • 16
    26-41953 OIL SEAL, END CAP
    OIL SEAL, END CAP
  • 17
    10-30225 SCREW, UPPER END CAP TO CYLINDER BLOCK (1")
    SCREW, UPPER END CAP TO CYLINDER BLOCK (1")
  • 19
    10-24220 SCREW, SET - CYLINDER BLOCK (3/16")
    SCREW, SET - CYLINDER BLOCK (3/16")
  • 20
    22-38407 PLUG, CYLINDER BLOCK (WATER JACKET)
    PLUG, CYLINDER BLOCK (WATER JACKET)
  • 21
    16-15094 STUD
    FLYWHEEL COVER TO CYLINDER BLOCK (1-7/8")
    STUD
    FLYWHEEL COVER TO CYLINDER BLOCK (1-7/8")
  • 23
    23-67269 SPACER, FLYWHEEL COVER STUD
    SPACER, FLYWHEEL COVER STUD
  • 24
    12-49221 WASHER, FLYWHEEL COVER STUD
    WASHER, FLYWHEEL COVER STUD
  • 25
    12-22887 WASHER, FLYWHEEL COVER STUD
    WASHER, FLYWHEEL COVER STUD
  • 26
    11-816874 NUT, FLYWHEEL COVER STUD
    NUT, FLYWHEEL COVER STUD
  • 27
    87691 BRACKET, FLYWHEEL COVER
    BRACKET, FLYWHEEL COVER
  • 28
    10-76630 SCREW, BRACKET TO CRANKCASE (1")
    SCREW, BRACKET TO CRANKCASE (1")
  • 29
    16-8M0034435 STUD, FLYWHEEL COVER TO BRACKET (1")
    STUD, FLYWHEEL COVER TO BRACKET (1")
  • 30
    1156-7809T1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 31
    25-62700 "O" RING, END CAP
    "O" RING, END CAP
  • 32
    26-41953 OIL SEAL, END CAP
    OIL SEAL, END CAP
  • 33
    10-28636 SCREW
    LOWER END CAP TO CYLINDER BLOCK (3/4")
    SCREW
    LOWER END CAP TO CYLINDER BLOCK (3/4")
  • 34
    13-26992 LOCKWASHER, LOWER END CAP SCREW
    LOCKWASHER, LOWER END CAP SCREW
  • 35
    10-64022 SCREW, ADJUSTING - CYLINDER BLOCK
    SCREW, ADJUSTING - CYLINDER BLOCK
  • 36
    11-64015 NUT, JAM - ADJUSTING SCREW
    NUT, JAM - ADJUSTING SCREW
  • 37
    52023 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • -
    27-89221A80 GASKET SET
    GASKET SET
