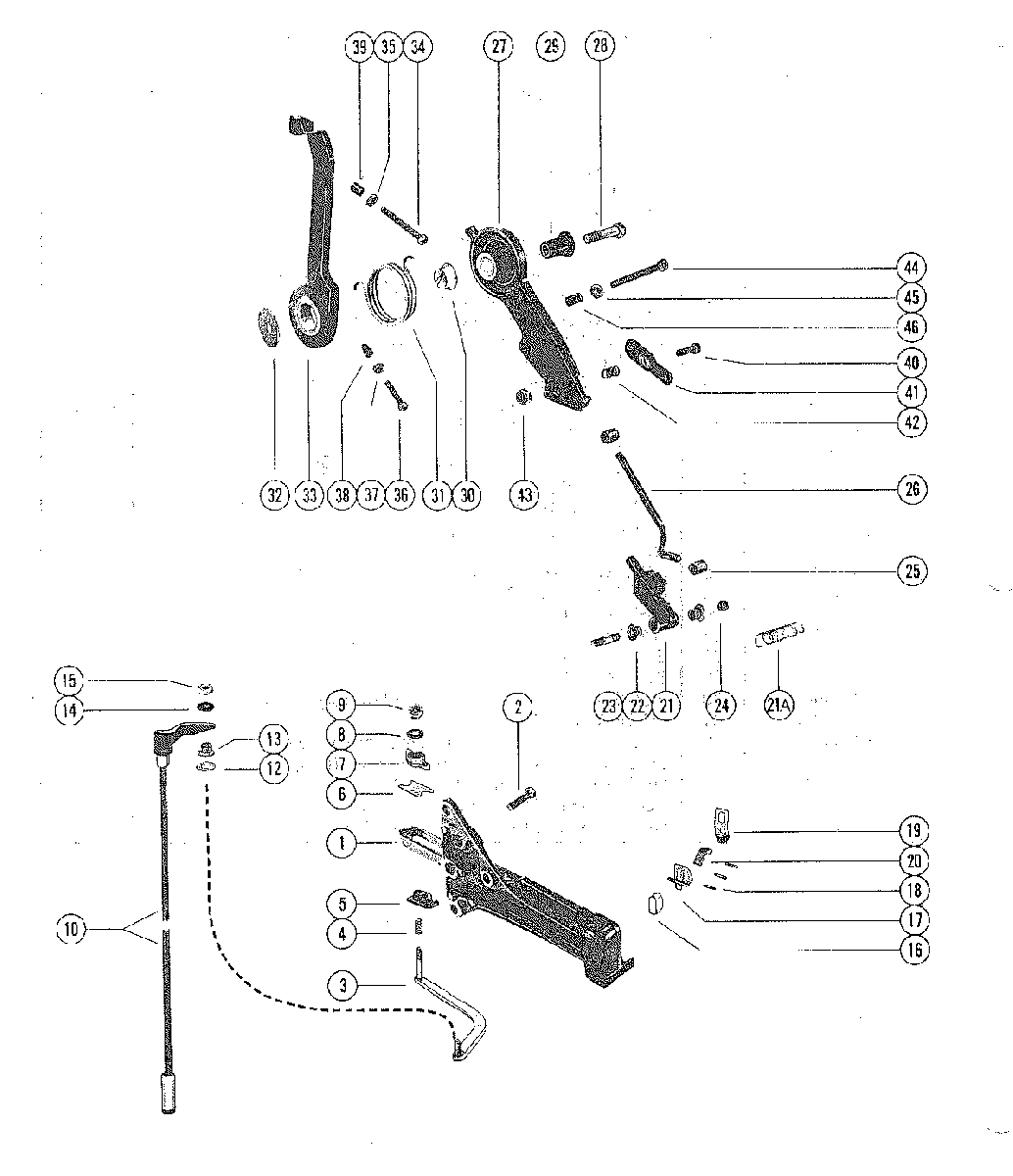

THROTTLE LEVER AND SHIFT SHAFT для Mercury - V-225 5628028 AND UP

  • №
    Артикул
    Название
  • 1
    814283A2 BRACKET, ANCHOR - CONTROL CABLES
    BRACKET, ANCHOR - CONTROL CABLES
  • 2
    10-53167T SCREW, ANCHOR BRACKET
    SCREW, ANCHOR BRACKET
  • 3
    67073A1 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 4
    24-20099 SPRING, LINK ROD TO GUIDE BLOCK
    SPRING, LINK ROD TO GUIDE BLOCK
  • 5
    37896 GUIDE BLOCK, LINK ROD
    GUIDE BLOCK, LINK ROD
  • 6
    52100 WEAR PLATE, LINK ROD
    WEAR PLATE, LINK ROD
  • 7
    8M0036768 LATCH, CONTROL CABLE FASTENING
    LATCH, CONTROL CABLE FASTENING
  • 8
    12-69056 WASHER, LATCH
    WASHER, LATCH
  • 9
    11-826709109 NUT, LINK ROD
    NUT, LINK ROD
  • 10
    79932A16 SHIFT SHAFT ASSEMBLY (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY (LONG SHAFT)
  • 10
    79932A17 SHIFT SHAFT ASSEMBLY (EXTRA LONG SHAFT)
    SHIFT SHAFT ASSEMBLY (EXTRA LONG SHAFT)
  • 12
    13-29720 WAVE WASHER, LINK ROD
    WAVE WASHER, LINK ROD
  • 13
    23-26600 BUSHING, NYLON - LINK ROD
    BUSHING, NYLON - LINK ROD
  • 14
    12-24664 WASHER, LINK ROD
    WASHER, LINK ROD
  • 15
    11-826709109 NUT, LINK ROD TO SHIFT SHAFT
    NUT, LINK ROD TO SHIFT SHAFT
  • 16
    39519 CAP, BARREL RETAINER - ANCHOR BAR
    CAP, BARREL RETAINER - ANCHOR BAR
  • 17
    87609 LEVER, NYLON - SHIFT CABLE LOCKING
    LEVER, NYLON - SHIFT CABLE LOCKING
  • 18
    17-47175 PIN, LOCATING LEVER AND COVER
    PIN, LOCATING LEVER AND COVER
  • 19
    87609A1 LINK, LOCKING LEVER TO COVER
    LINK, LOCKING LEVER TO COVER
  • 20
    90211 COVER, NYLON - SHIFT CABLE
    COVER, NYLON - SHIFT CABLE
  • 21
    89735 THROTTLE CAM (CASTING #89715)
    THROTTLE CAM (CASTING #89715)
  • 21
    95791 THROTTLE CAM (CASTING #95790)
    THROTTLE CAM (CASTING #95790)
  • 21A
    24-91821 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 22
    23-26600 BUSHING, THROTTLE CAM
    BUSHING, THROTTLE CAM
  • 23
    16-20353 STUD, THROTTLE CAM
    STUD, THROTTLE CAM
  • 24
    11-36069 NUT, THROTTLE CAM STUD
    NUT, THROTTLE CAM STUD
  • 25
    60572 BARREL, THROTTLE CONTROL ROD
    BARREL, THROTTLE CONTROL ROD
  • 26
    95829 ROD, THROTTLE CONTROL
    ROD, THROTTLE CONTROL
  • 27
    410952 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 28
    10-818165 SCREW, THROTTLE AND SPARK LEVER (1-3/4")
    SCREW, THROTTLE AND SPARK LEVER (1-3/4")
  • 29
    23-55164 BUSHING, THROTTLE LEVER
    BUSHING, THROTTLE LEVER
  • 30
    23-55171 BUSHING, SPARK ADVANCE LEVER
    BUSHING, SPARK ADVANCE LEVER
  • 31
    24-68784 SPRING, THROTTLE AND SPARK ADVANCE LEVER
    SPRING, THROTTLE AND SPARK ADVANCE LEVER
  • 32
    12-46765 WASHER, SPARK ADVANCE LEVER
    WASHER, SPARK ADVANCE LEVER
  • 33
    41094A3 LEVER, SPARK ADVANCE
    LEVER, SPARK ADVANCE
  • 34
    10-75168 SCREW, SPARK LEVER - STOP (2-3/4")
    SCREW, SPARK LEVER - STOP (2-3/4")
  • 35
    11-29598 NUT, SPARK ADVANCE LEVER STOP SCREW
    NUT, SPARK ADVANCE LEVER STOP SCREW
  • 36
    10-69560 SCREW, SPARK ADVANCE LEVER - STOP (1-1/4")
    SCREW, SPARK ADVANCE LEVER - STOP (1-1/4")
  • 37
    11-68219 NUT, SPARK ADVANCE LEVER STOP SCREW
    NUT, SPARK ADVANCE LEVER STOP SCREW
  • 38
    48039 CAP, SPARK ADVANCE LEVER STOP SCREW
    CAP, SPARK ADVANCE LEVER STOP SCREW
  • 39
    52023 CAP, SPARK ADVANCE LEVER STOP SCREW
    CAP, SPARK ADVANCE LEVER STOP SCREW
  • 40
    10-69026 SCREW, CABLE LATCH TO THROTTLE LEVER
    SCREW, CABLE LATCH TO THROTTLE LEVER
  • 41
    39483 LATCH, CABLE
    LATCH, CABLE
  • 42
    24-20099 SPRING, CABLE LATCH TO THROTTLE LEVER
    SPRING, CABLE LATCH TO THROTTLE LEVER
  • 43
    11-826709109 NUT, CABLE LATCH SCREW
    NUT, CABLE LATCH SCREW
  • 44
    10-64022 SCREW, THROTTLE LEVER _ STOP (2-1/8")
    SCREW, THROTTLE LEVER _ STOP (2-1/8")
  • 45
    11-64015 NUT, THROTTLE LEVER STOP SCREW
    NUT, THROTTLE LEVER STOP SCREW
  • 46
    52023 CAP, THROTTLE LEVER STOP SCREW
    CAP, THROTTLE LEVER STOP SCREW
