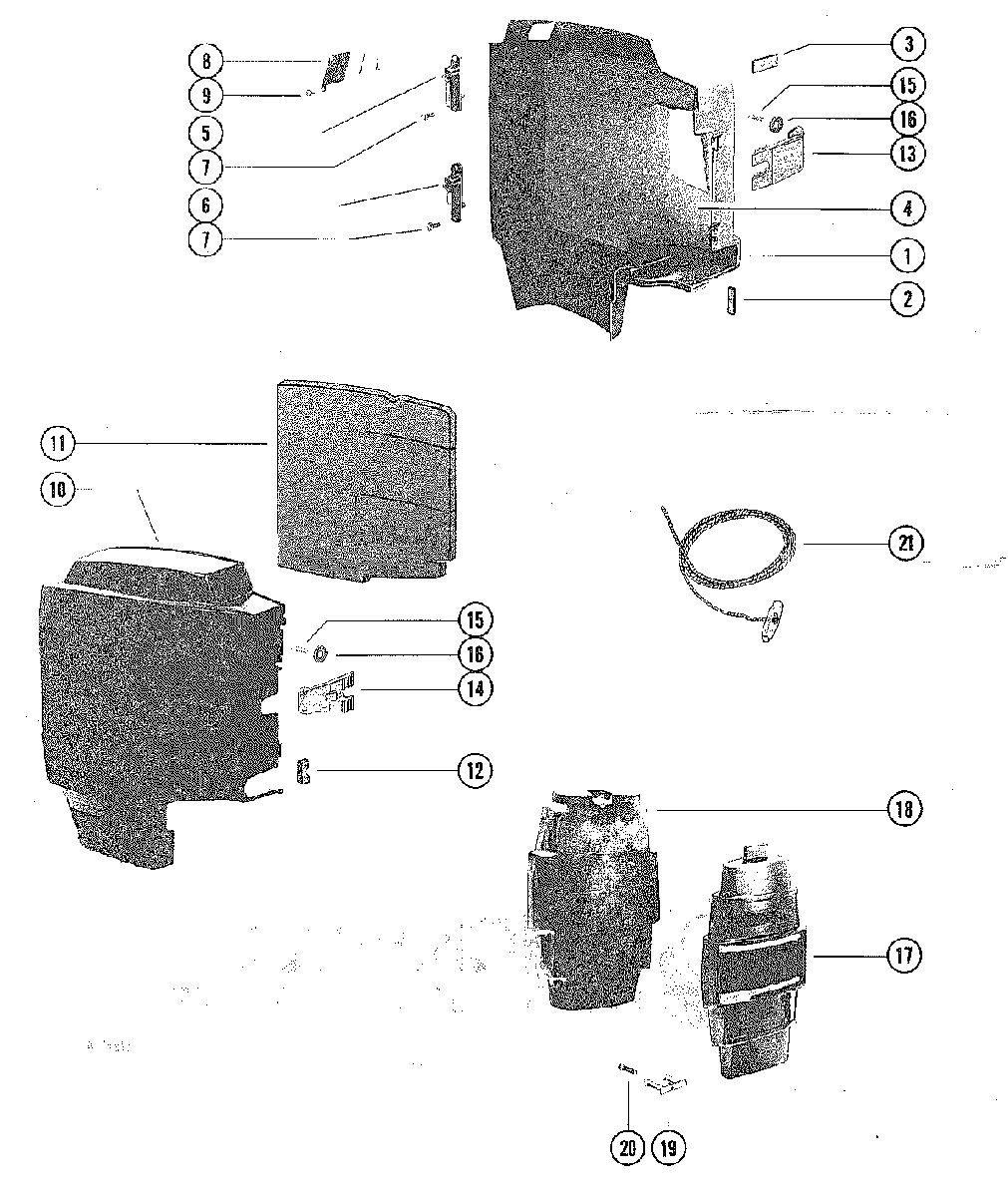

COWLS AND FRONT COVER для Mercury - V-225 5628028 AND UP

  • №
    Артикул
    Название
  • 1
    2151-7523A2 COWL ASSEMBLY, PORT (WITHOUT DECALS)
    COWL ASSEMBLY, PORT (WITHOUT DECALS)
  • 2
    67260 SEAL, CONTROL CABLE
    SEAL, CONTROL CABLE
  • 3
    67258 PAD, COWL ASSEMBLY TO FRONT COVER
    PAD, COWL ASSEMBLY TO FRONT COVER
  • 4
    88227 BLANKET, SOUND-COWL (PORT)
    BLANKET, SOUND-COWL (PORT)
  • 5
    879871 BRACKET, COWL ATTACHING - UPPER
    BRACKET, COWL ATTACHING - UPPER
  • 6
    87985 BRACKET, COWL ATTACHING - LOWER
    BRACKET, COWL ATTACHING - LOWER
  • 7
    10-35386 SCREW, UPPER AND LOWER BRACKETS
    SCREW, UPPER AND LOWER BRACKETS
  • 8
    68049 SHIELD INLET - COWL (STARBOARD)
    SHIELD INLET - COWL (STARBOARD)
  • 8
    68048 SHIELD, INLET - COWL (PORT)
    SHIELD, INLET - COWL (PORT)
  • 9
    10-57807 SCREW, SHIELD TO COWL
    SCREW, SHIELD TO COWL
  • 10
    2150-7524A1 COWL ASSEMBLY, STARBOARD (WITHOUT DECALS)
    COWL ASSEMBLY, STARBOARD (WITHOUT DECALS)
  • 11
    88227 BLANKET, SOUND - COWL (STARBOARD)
    BLANKET, SOUND - COWL (STARBOARD)
  • 12
    90274 SEAL, HARNESS
    SEAL, HARNESS
  • 13
    97461A2 LATCH, COWL - PORT
    LATCH, COWL - PORT
  • 14
    97461A2 LATCH, COWL - STARBOARD
    LATCH, COWL - STARBOARD
  • 15
    10-95700 SCREW, COWL LATCH
    SCREW, COWL LATCH
  • 16
    12-22887 WASHER, COWL LATCH SCREW
    WASHER, COWL LATCH SCREW
  • 17
    2149-7532A2 COWL FRONT COVER ASSEMBLY (WITHOUT DECALS)
    COWL FRONT COVER ASSEMBLY (WITHOUT DECALS)
  • 18
    90984 BLANKET, SOUND - COWL FRONT COVER
    BLANKET, SOUND - COWL FRONT COVER
  • 19
    87907 HOOK, COWL FRONT COVER ATTACHING
    HOOK, COWL FRONT COVER ATTACHING
  • 20
    10-95700 SCREW, HOOK TO COWL FRONT COVER
    SCREW, HOOK TO COWL FRONT COVER
  • 21
    47341A11 STARTER ROPE ASSEMBLY
    (FOR MANUAL STARTING)
    STARTER ROPE ASSEMBLY
    (FOR MANUAL STARTING)
