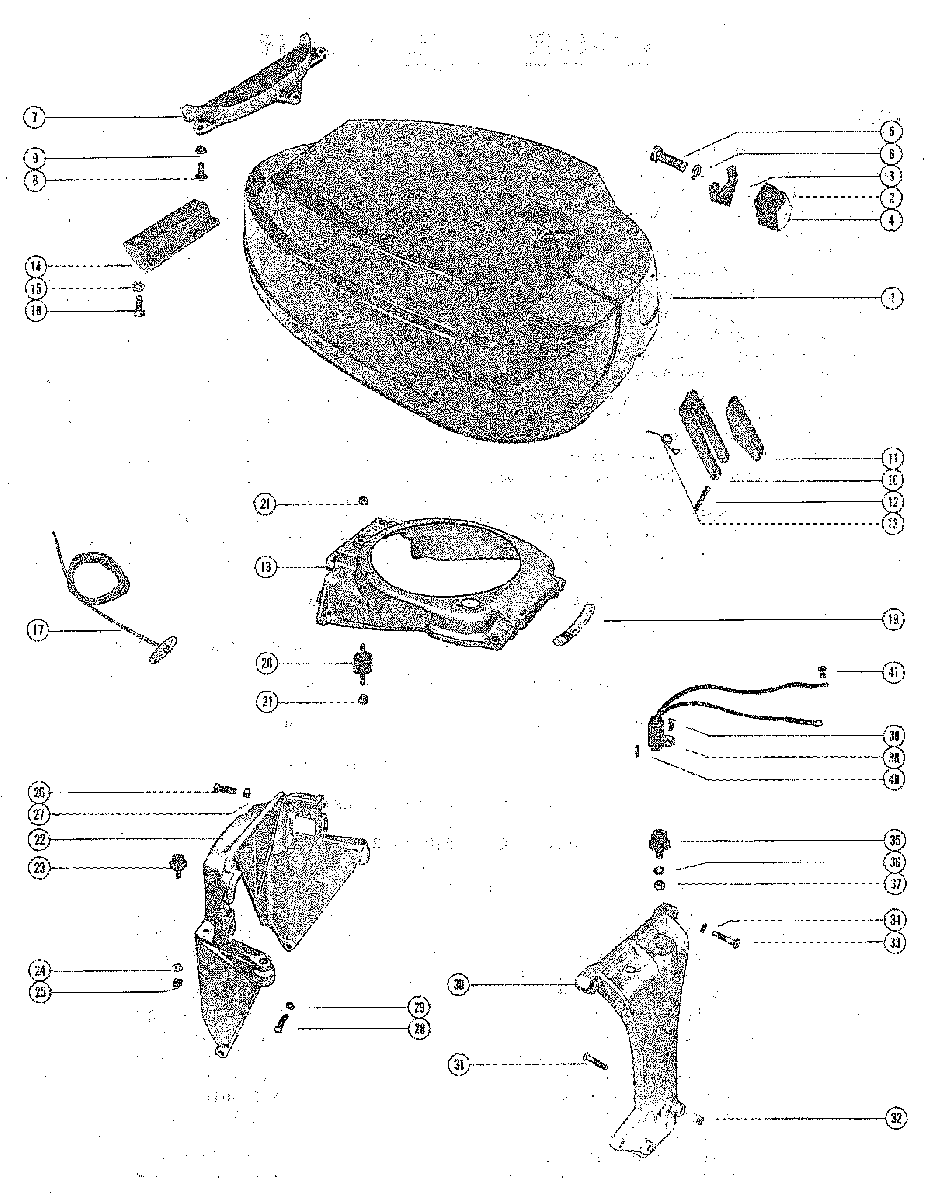

TOP COWL AND SUPPORT BRACKETS для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912

  • №
    Артикул
    Название
  • 1
    2114-3806 COWL, TOP SERIAL
    SERIAL 00000000-02670574
    COWL, TOP SERIAL
    SERIAL 00000000-02670574
  • 1
    2114-3806 COWL, TOP
    SERIAL 02783253-09999999
    COWL, TOP
    SERIAL 02783253-09999999
  • 2
    52733A9 RETAINER ASSEMBLY, TOP COWL
    SERIAL 00000000-02670574
    RETAINER ASSEMBLY, TOP COWL
    SERIAL 00000000-02670574
  • 3
    35496 PAD, BUMPER - TOP COWL RETAINER
    SERIAL 00000000-02670574
    PAD, BUMPER - TOP COWL RETAINER
    SERIAL 00000000-02670574
  • 4
    37-61018A1 EMBLEM, TOP COWL RETAINER
    SERIAL 00000000-02670574
    EMBLEM, TOP COWL RETAINER
    SERIAL 00000000-02670574
  • 2
    52733A9 RETAINER ASSEMBLY, TOP COWL
    SERIAL 02783253-02886331
    RETAINER ASSEMBLY, TOP COWL
    SERIAL 02783253-02886331
  • 3
    35496 PAD, BUMPER - TOP COWL RETAINER
    SERIAL 02783253-02886331
    PAD, BUMPER - TOP COWL RETAINER
    SERIAL 02783253-02886331
  • 4
    37-61018A1 EMBLEM, TOP COWL RETAINER
    SERIAL 02783253-02886331
    EMBLEM, TOP COWL RETAINER
    SERIAL 02783253-02886331
  • 2
    52733A9 RETAINER ASSEMBLY, TOP COWL
    SERIAL 02986444-03148653
    RETAINER ASSEMBLY, TOP COWL
    SERIAL 02986444-03148653
  • 3
    35496 PAD, BUMPER - TOP COWL RETAINER
    SERIAL 02986444-03148653
    PAD, BUMPER - TOP COWL RETAINER
    SERIAL 02986444-03148653
  • 2
    52733A9 RETAINER ASSEMBLY, TOP COWL
    SERIAL 03186263-09999999
    RETAINER ASSEMBLY, TOP COWL
    SERIAL 03186263-09999999
  • 3
    35496 PAD, BUMPER - TOP COWL RETAINER
    SERIAL 03186263-09999999
    PAD, BUMPER - TOP COWL RETAINER
    SERIAL 03186263-09999999
  • 5
    10-74824 SCREW, RETAINER TO TOP COWL (1 1/4")
    SCREW, RETAINER TO TOP COWL (1 1/4")
  • 6
    13-39107 LOCKWASHER, RETAINER FASTENING SCREW
    LOCKWASHER, RETAINER FASTENING SCREW
  • 7
    76370 SHIELD, TOP COWL - REAR
    SHIELD, TOP COWL - REAR
  • 8
    10-37370 SCREW, SHEILD TO TOP COWL (5/8")
    SCREW, SHEILD TO TOP COWL (5/8")
  • 9
    13-37371 LOCKWASHER, SHIELD SCREW
    LOCKWASHER, SHIELD SCREW
  • 10
    52739 HINGE, COWL LATCH - TOP COWL
    HINGE, COWL LATCH - TOP COWL
  • 11
    94918F1 LEVER, COWL LATCH HINGE
    LEVER, COWL LATCH HINGE
  • 12
    17-58998 PIN, COWL LATCH LEVER TO HINGE
    PIN, COWL LATCH LEVER TO HINGE
  • 13
    24-53019 SPRING, COWL LATCH HINGE
    SERIAL 00000000-03148653
    SPRING, COWL LATCH HINGE
    SERIAL 00000000-03148653
  • 14
    55455 HOOK, TOP COWL LATCH - REAR
    SERIAL 00000000-02670574
    HOOK, TOP COWL LATCH - REAR
    SERIAL 00000000-02670574
  • 14
    55455 HOOK, TOP COWL LATCH - REAR
    SERIAL 02783253-09999999
    HOOK, TOP COWL LATCH - REAR
    SERIAL 02783253-09999999
  • 15
    13-26992 LOCKWASHER, REAR HOOK MOUNTING SCREW
    LOCKWASHER, REAR HOOK MOUNTING SCREW
  • 16
    10-22956 SCREW, REAR HOOK TO TOP COWL (7/8")
    SCREW, REAR HOOK TO TOP COWL (7/8")
  • 17
    47341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)
    ROPE, STARTER (FOR MANUAL STARTING ONLY)
  • 18
    79897A4 FRAME, TOP COWL SUPPORT
    FRAME, TOP COWL SUPPORT
  • 19
    37-60204 DECAL, TIMING - TOP COWL FRAME
    DECAL, TIMING - TOP COWL FRAME
  • 20
    90435 MOUNT, RUBBER - TOP COWL FRAME
    MOUNT, RUBBER - TOP COWL FRAME
  • 21
    11-8267089 NUT, RUBBER MOUNT TO TOP COWL FRAME
    NUT, RUBBER MOUNT TO TOP COWL FRAME
  • 22
    52468 BRACKET, TOP COWL SUPPORT - REAR
    BRACKET, TOP COWL SUPPORT - REAR
  • 23
    31014 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
  • 24
    13-26992 LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
    LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 25
    11-20088 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
    NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 26
    10-26065 SCREW, REAR SUPPORT BRACKET TO TOP COWL FRAME (1")
    SCREW, REAR SUPPORT BRACKET TO TOP COWL FRAME (1")
  • 27
    11-29250 NUT, RAR SUPPORT BRACKET SCREW
    NUT, RAR SUPPORT BRACKET SCREW
  • 28
    10-35386 SCREW, RAR SUPPORT BRACKET TO BOTTOM COWL (1')
    SCREW, RAR SUPPORT BRACKET TO BOTTOM COWL (1')
  • 29
    13-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREW
    LOCKWASHER, REAR SUPPORT BRACKET SCREW
  • 30
    66521A2 BRACKET, SUPPORT-FRONT
    SERIAL 00000000-02991033
    BRACKET, SUPPORT-FRONT
    SERIAL 00000000-02991033
  • 30
    66521A2 BRACKET, SUPPORT - FRONT
    SERIAL 03051041-03052380
    BRACKET, SUPPORT - FRONT
    SERIAL 03051041-03052380
  • 31
    10-78841 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1 1/2")
    SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1 1/2")
  • 32
    11-29250 NUT, FRONT SUPPORT BRACKET SCREW
    NUT, FRONT SUPPORT BRACKET SCREW
  • 33
    10-73657 SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2")
    SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2")
  • 34
    13-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREW
    LOCKWASHER, FRONT SUPPORT BRACKET SCREW
  • 35
    37640 MOUNT, RUBBER - FRONT SUPPORT BRACKET
    MOUNT, RUBBER - FRONT SUPPORT BRACKET
  • 36
    13-26993 LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
  • 37
    11-22053 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
  • 38
    58124A7 SWITCH, MERCURY
    SERIAL 00000000-02991033
    SWITCH, MERCURY
    SERIAL 00000000-02991033
  • 38
    58124A9 SWITCH, MERCURY
    SERIAL 03051041-03052380
    SWITCH, MERCURY
    SERIAL 03051041-03052380
  • 39
    10-25764 SCREW, MERCURY SWITCH TO FRONT SUPPORT BRACKET (1/2")
    SCREW, MERCURY SWITCH TO FRONT SUPPORT BRACKET (1/2")
  • 40
    17-30496 PIN, ROLL - MERCURY SWITCH (EARLY MODELS ONLY)
    PIN, ROLL - MERCURY SWITCH (EARLY MODELS ONLY)
  • 41
    10-62568 SCREW, MERCURY SWITCH LEAD (3/8")
    SCREW, MERCURY SWITCH LEAD (3/8")
