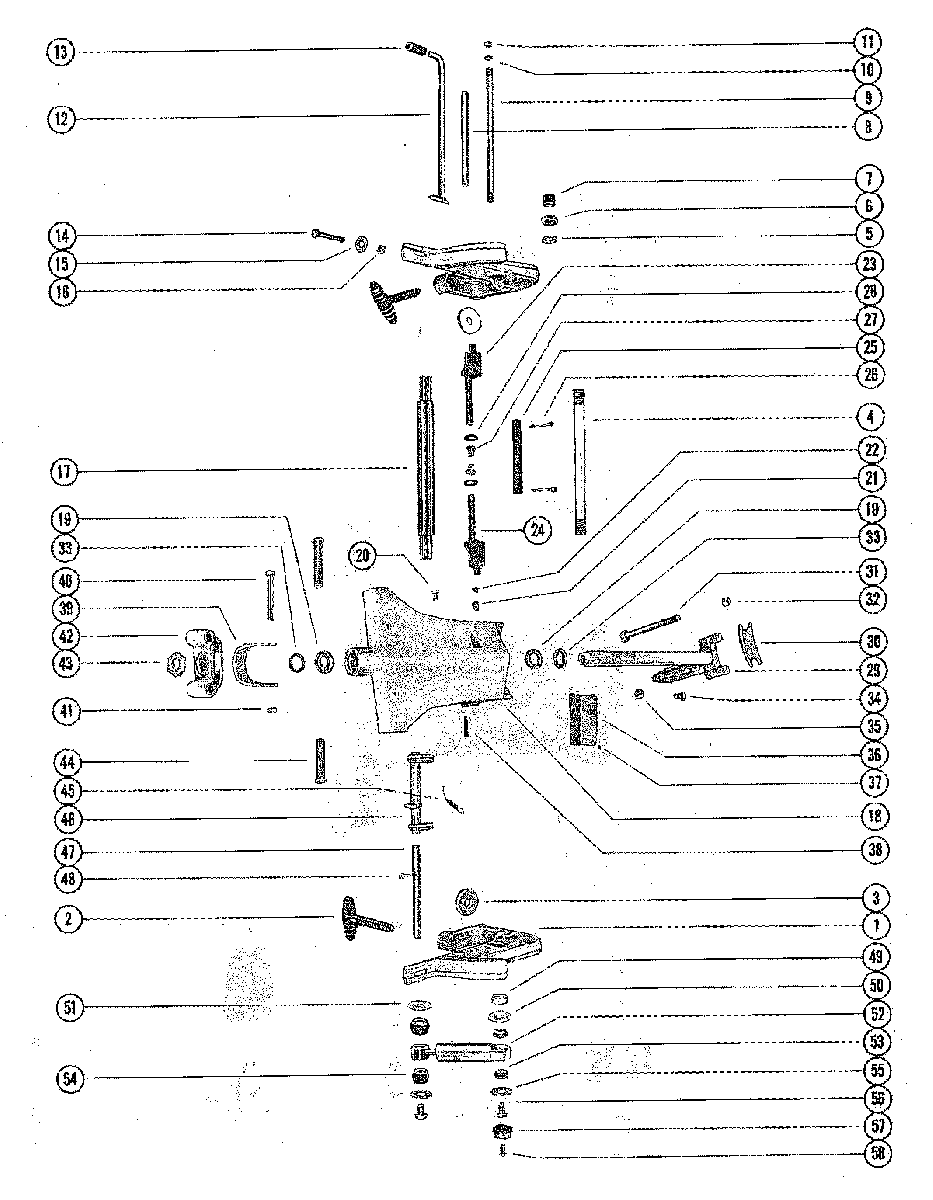

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912

  • №
    Артикул
    Название
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    28403A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-28404 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    8M0041936 TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    12-52864 WASHER, CLAMP BRACKET TILT TUBE
    WASHER, CLAMP BRACKET TILT TUBE
  • 6
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 7
    53078 CAP, PLASTIC-TILT TUBE
    CAP, PLASTIC-TILT TUBE
  • 8
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 9
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-28770 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 13
    32-28052 SLEEVE, RUBBER-TILT LOCK PIN BUMPER
    SLEEVE, RUBBER-TILT LOCK PIN BUMPER
  • 14
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
    BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
  • 15
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 14
    10-68299 BOLT, CLAMP BRACKET TO TRANSOM (3")
    BOLT, CLAMP BRACKET TO TRANSOM (3")
  • 15
    12-68300 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 16
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 17
    55-28416 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
  • 18
    1490-7256A2 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
    SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
  • 18
    1482-6386A4 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
  • 19
    26-37448 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 20
    10-47828 SCREW, DRIVE-SWIVEL BRACKET
    SCREW, DRIVE-SWIVEL BRACKET
  • 21
    22-69059 FITTING, GREASE
    FITTING, GREASE
  • 22
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    SERIAL 00000000-02670574
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
    SERIAL 00000000-02670574
  • 22
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    SERIAL 02783253-09999999
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
    SERIAL 02783253-09999999
  • 23
    76386 TILT LOCK ASSEMBLY, STARBOARD
    TILT LOCK ASSEMBLY, STARBOARD
  • 24
    76385T TILT LOCK ASSEMBLY, PORT
    TILT LOCK ASSEMBLY, PORT
  • 25
    47802 TUBE, TILT LOCK
    TUBE, TILT LOCK
  • 26
    18-47959 COTTER PIN, TILT LOCK TUBE
    COTTER PIN, TILT LOCK TUBE
  • 27
    23-47803 BUSHING, TILT LOCK TUBE
    BUSHING, TILT LOCK TUBE
  • 28
    13-69150 WASHER, WAVE-TILT LOCK TUBE
    WASHER, WAVE-TILT LOCK TUBE
  • 29
    17-49841A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
    SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
  • 29
    17-49840A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
    SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
  • 30
    28203 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 31
    10-30453 BOLT, STEERING ARM TO UPPER MOUNT (5 1/2")
    BOLT, STEERING ARM TO UPPER MOUNT (5 1/2")
  • 32
    11-34933 NUT, STEERING ARM BOLT FASTENING
    NUT, STEERING ARM BOLT FASTENING
  • 33
    12-37429 WASHER, SWIVEL PIN-LOWER (TOP WASHER OPTIONAL)
    WASHER, SWIVEL PIN-LOWER (TOP WASHER OPTIONAL)
  • 34
    10-31830 SCREW, RIDE-GUIDE ATTACHING (1 3/4")
    SCREW, RIDE-GUIDE ATTACHING (1 3/4")
  • 35
    11-8M0042636 NUT, RIDE-GUIDE ATTACHING SCREW
    NUT, RIDE-GUIDE ATTACHING SCREW
  • 36
    38-56267 SERIAL PLATE
    SERIAL PLATE
  • 37
    10-25612 SCREW, DRIVE-SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE-SERIAL PLATE TO SWIVEL BRACKET
  • 38
    17-25598 PIN, REVERSE LOCK SPRING ATTACHING
    PIN, REVERSE LOCK SPRING ATTACHING
  • 39
    28205T STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
    STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
  • 40
    10-28200 SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")
    SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")
  • 41
    11-25269 NUT, STRAP STOP FASTENING SCREW
    NUT, STRAP STOP FASTENING SCREW
  • 42
    73984T YOKE, BOTTOM
    SERIAL 00000000-02670574
    YOKE, BOTTOM
    SERIAL 00000000-02670574
  • 42
    73984T YOKE, BOTTOM
    SERIAL 02783253-09999999
    YOKE, BOTTOM
    SERIAL 02783253-09999999
  • 43
    11-37424 NUT, SWIVEL PIN RETAINING
    NUT, SWIVEL PIN RETAINING
  • 44
    55-696531 PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)
    PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)
  • 44
    55-28414 PIN, LOWER SHOCK MOUNTING-LONG SHAFT
    PIN, LOWER SHOCK MOUNTING-LONG SHAFT
  • --
    10-28424 SCREW, LOWER SHOCK PIN -LONG SHAFT
    SCREW, LOWER SHOCK PIN -LONG SHAFT
  • --
    11-20184 NUT, LOWER SHOCK PIN SCREW -LONG SHAFT
    NUT, LOWER SHOCK PIN SCREW -LONG SHAFT
  • 45
    24-29821 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 46
    87431 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
  • 47
    56349 SHAFT, REVERSE LOCK PIVOT
    SHAFT, REVERSE LOCK PIVOT
  • 48
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 49
    23-28199 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
    SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
  • 50
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    WASHER, UPPER BUSHING RETAINER (INNER)
  • 51
    12-840400 WASHER, LOWER BUSHING RETAINER (INNER)
    SERIAL 00000000-02670574
    WASHER, LOWER BUSHING RETAINER (INNER)
    SERIAL 00000000-02670574
  • 51
    12-840400 WASHER, LOWER BUSHING RETAINER (INNER)
    SERIAL 02783253-02886331
    WASHER, LOWER BUSHING RETAINER (INNER)
    SERIAL 02783253-02886331
  • 51
    12-59378 WASHER, LOWER BUSHING RETAINER (INNER)
    SERIAL 02986444-09999999
    WASHER, LOWER BUSHING RETAINER (INNER)
    SERIAL 02986444-09999999
  • 52
    55-58780A7 SHOCK ABSORBER
    SHOCK ABSORBER
  • 53
    23-32171 BUSHING, RUBBER-SHOCK ABSORBER (UPPER)
    BUSHING, RUBBER-SHOCK ABSORBER (UPPER)
  • 54
    23-28198 BUSHING, RUBBER-SHOCK ABSORBER (LOWER)
    BUSHING, RUBBER-SHOCK ABSORBER (LOWER)
  • 55
    12-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
    WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
  • 56
    10-69375A1 SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")
    SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")
  • 57
    70679 COVER, UPPER AND LOWER SHOCK MOUNTING PIN
    COVER, UPPER AND LOWER SHOCK MOUNTING PIN
