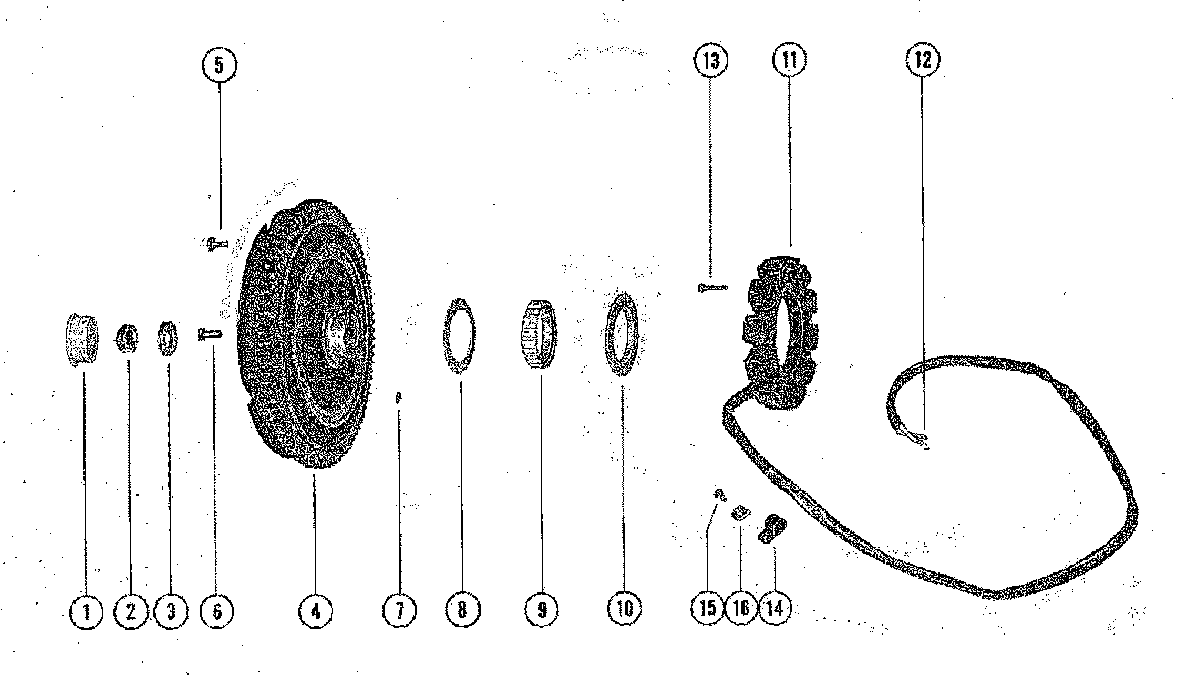

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912

  • №
    Артикул
    Название
  • 1
    19-45907 PLUG, FLYWHEEL PULLER THREADS
    PLUG, FLYWHEEL PULLER THREADS
  • 2
    11-52901 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 3
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 4
    225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
    SERIAL 00000000-02670574
    FLYWHEEL ASSEMBLY, COMPLETE
    SERIAL 00000000-02670574
  • 4
    225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
    SERIAL 02783253-09999999
    FLYWHEEL ASSEMBLY, COMPLETE
    SERIAL 02783253-09999999
  • 5
    10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL
    SCREW, FLEXIBLE PLATE TO FLYWHEEL
  • 6
    10-68997 SCREW, PLATE AND HUB TO FLEXIBLE PLATE
    SCREW, PLATE AND HUB TO FLEXIBLE PLATE
  • 7
    17-26618 PIN, DOWEL - PULLEY TO FLYWHEEL
    PIN, DOWEL - PULLEY TO FLYWHEEL
  • 8
    29788 FLANGE, FLYWHEEL PULLEY
    FLANGE, FLYWHEEL PULLEY
  • 9
    30306 PULLEY, FLYWHEEL
    PULLEY, FLYWHEEL
  • 10
    29787 HUB, FLYWHEEL PULLEY
    HUB, FLYWHEEL PULLEY
  • 11
    398-4792 STATOR, ALTERNATOR
    STATOR, ALTERNATOR
  • 12
    30050 TERMINAL, STATOR LEAD WIRE
    TERMINAL, STATOR LEAD WIRE
  • 13
    10-57021 SCREW, STATOR TO UPPER END CAP (7/8")
    SCREW, STATOR TO UPPER END CAP (7/8")
  • 14
    54-22875 CLIP, STATOR LEAD FASTENING (7/16")
    CLIP, STATOR LEAD FASTENING (7/16")
  • 15
    10-62568 SCREW, STATOR LEAD FASTENING (3/8")
    SCREW, STATOR LEAD FASTENING (3/8")
  • 16
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
