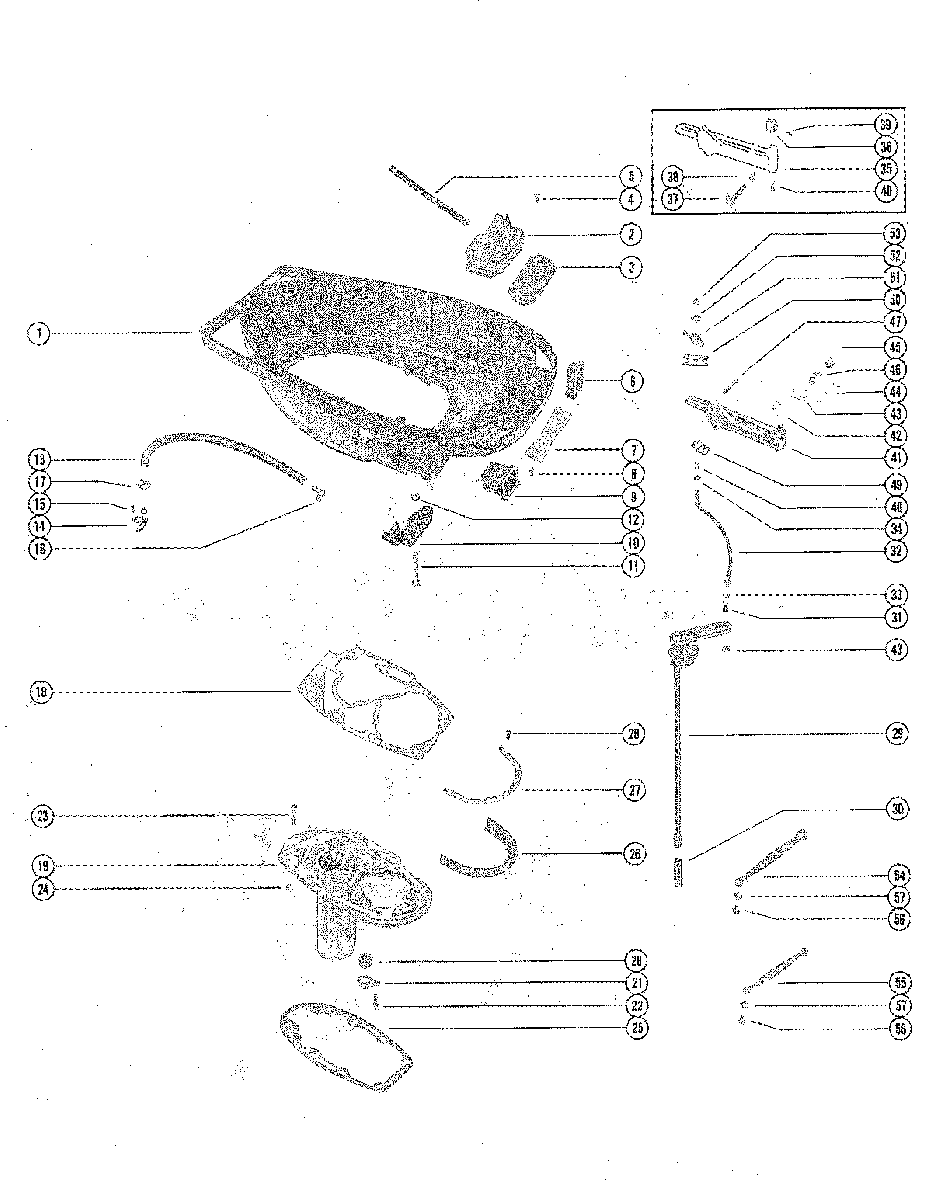

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912

  • №
    Артикул
    Название
  • 1
    2115-3807 COWL, BOTTOM
    SERIAL 00000000-02786462
    COWL, BOTTOM
    SERIAL 00000000-02786462
  • 1
    2115-3919 COWL, BOTTOM
    SERIAL 02881082-09999999
    COWL, BOTTOM
    SERIAL 02881082-09999999
  • 2
    52862A2 DRIP TRAY ASSEMBLY, BOTTOM COWL
    DRIP TRAY ASSEMBLY, BOTTOM COWL
  • 3
    37940 PAD, SOUND-DRIP TRAY
    PAD, SOUND-DRIP TRAY
  • 4
    10-35519 SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
    SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
  • 5
    32-8M0108355 HOSE, DRIP TRAY TO BOTTOM COWL (8")
    HOSE, DRIP TRAY TO BOTTOM COWL (8")
  • 6
    37638 BOOT, CONTROL CABLES-BOTTOM COWL
    SERIAL 00000000-02786462
    BOOT, CONTROL CABLES-BOTTOM COWL
    SERIAL 00000000-02786462
  • 6
    39616 BOOT, CONTROL CABLES-BOTTOM COWL
    SERIAL 02221082-09999999
    BOOT, CONTROL CABLES-BOTTOM COWL
    SERIAL 02221082-09999999
  • 7
    23760 BAFFLE, BOTTOM COWL
    SERIAL 00000000-03148653
    BAFFLE, BOTTOM COWL
    SERIAL 00000000-03148653
  • 8
    10-52867 SCREW, BAFFLE TO BOTTOM COWL
    SERIAL 00000000-03148653
    SCREW, BAFFLE TO BOTTOM COWL
    SERIAL 00000000-03148653
  • 9
    37637 BOOT, FUEL CONNECTOR-BOTTOM COWL
    BOOT, FUEL CONNECTOR-BOTTOM COWL
  • 10
    37445 SUPPORT, WIRING HARNESS-BOTTOM COWL
    SUPPORT, WIRING HARNESS-BOTTOM COWL
  • 11
    10-88488 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (3 1/4")
    SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (3 1/4")
  • 11
    10-69029 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1 3/4")
    SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1 3/4")
  • 12
    11-20184 NUT, WIRING HARNESS SUPPORT SCREW
    NUT, WIRING HARNESS SUPPORT SCREW
  • 13
    32-8M0108355 HOSE, TELL TALE-EXHAUST COVER TO BOTTOM COWL (16")
    HOSE, TELL TALE-EXHAUST COVER TO BOTTOM COWL (16")
  • 14
    52889 NOZZLE, TELL TALE HOSE TO BOTTOM COWL
    NOZZLE, TELL TALE HOSE TO BOTTOM COWL
  • 15
    10-35519 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
    SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
  • 16
    22-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVER
    ELBOW, TELL TALE HOSE TO EXHAUST COVER
  • 17
    54-48123 CLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOW
    CLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOW
  • 18
    27-56304 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
    SERIAL 00000000-02670574
    GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
    SERIAL 00000000-02670574
  • 19
    56306A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    SERIAL 00000000-02670574
    PLATE ASSEMBLY, EXHAUST EXTENSION
    SERIAL 00000000-02670574
  • 20
    26-38970 SEAL, RUBBER-WATER INLET TUBE
    SERIAL 00000000-02670574
    SEAL, RUBBER-WATER INLET TUBE
    SERIAL 00000000-02670574
  • 21
    38448 RETAINER, WATER TUBE SEAL
    SERIAL 00000000-02670574
    RETAINER, WATER TUBE SEAL
    SERIAL 00000000-02670574
  • 22
    10-69069 SCREW, RETAINER TO EXTENSION PLATE (3/4")
    SERIAL 00000000-02670574
    SCREW, RETAINER TO EXTENSION PLATE (3/4")
    SERIAL 00000000-02670574
  • 18
    27-56304 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
    SERIAL 02783253-09999999
    GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
    SERIAL 02783253-09999999
  • 19
    56306A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    SERIAL 02783253-09999999
    PLATE ASSEMBLY, EXHAUST EXTENSION
    SERIAL 02783253-09999999
  • 20
    26-38970 SEAL, RUBBER-WATER INLET TUBE
    SERIAL 02783253-09999999
    SEAL, RUBBER-WATER INLET TUBE
    SERIAL 02783253-09999999
  • 21
    38448 RETAINER, WATER TUBE SEAL
    SERIAL 02783253-09999999
    RETAINER, WATER TUBE SEAL
    SERIAL 02783253-09999999
  • 22
    10-69069 SCREW, RETAINER TO EXTENSION PLATE (3/4")
    SERIAL 02783253-09999999
    SCREW, RETAINER TO EXTENSION PLATE (3/4")
    SERIAL 02783253-09999999
  • 23
    10-24226 SCREW, EXTENSION PLATE TO DRIVE SHAFT HOUSING (1 1/4")
    SCREW, EXTENSION PLATE TO DRIVE SHAFT HOUSING (1 1/4")
  • 24
    11-20184 NUT, EXHAUST EXTENSION PLATE SCREW
    NUT, EXHAUST EXTENSION PLATE SCREW
  • 25
    27-48801 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 26
    37918 SEAL, EXHAUST EXTENSION PLATE
    SEAL, EXHAUST EXTENSION PLATE
  • 27
    99358 STRIP, RETAINING-EXHAUST EXTENSION PLATE SEAL
    STRIP, RETAINING-EXHAUST EXTENSION PLATE SEAL
  • 28
    10-37571 SCREW, SEAL AND STRIP TO EXHAUST EXTENSION PLATE (1/2")
    SCREW, SEAL AND STRIP TO EXHAUST EXTENSION PLATE (1/2")
  • 29
    49904A2 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SERIAL 00000000-02667724
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SERIAL 00000000-02667724
  • 29
    49905A2 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SERIAL 00000000-02667724
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SERIAL 00000000-02667724
  • 29
    60304A55 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SERIAL 02667725-09999999
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SERIAL 02667725-09999999
  • 29
    60304A54 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SERIAL 02667725-09999999
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SERIAL 02667725-09999999
  • 30
    93960A1 COUPLING, SHIFT SHAFT
    SERIAL 02667725-09999999
    COUPLING, SHIFT SHAFT
    SERIAL 02667725-09999999
  • 31
    23-26600 BUSHING, SHIFT SHAFT
    SERIAL 02667725-09999999
    BUSHING, SHIFT SHAFT
    SERIAL 02667725-09999999
  • 32
    73402 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 33
    12-24664 WASHER, LINK ROD (SHIFT LEVER END)
    WASHER, LINK ROD (SHIFT LEVER END)
  • 34
    13-29720 WASHER, WAVE-LINK ROD
    SERIAL 00000000-02670574
    WASHER, WAVE-LINK ROD
    SERIAL 00000000-02670574
  • 34
    13-29720 WASHER, WAVE-LINK ROD
    SERIAL 02783253-09999999
    WASHER, WAVE-LINK ROD
    SERIAL 02783253-09999999
  • 35
    52732A6 BRACKET ASSEMBLY, ANCHOR CONTROL CABLES
    SERIAL 00000000-02786462
    BRACKET ASSEMBLY, ANCHOR CONTROL CABLES
    SERIAL 00000000-02786462
  • 36
    38802 CAP, BRASS BARREL OF THROTTLE CABLE
    SERIAL 00000000-02786462
    CAP, BRASS BARREL OF THROTTLE CABLE
    SERIAL 00000000-02786462
  • 36
    49935 CAP, BRASS BARREL OF THROTTLE CABLE
    SERIAL 00000000-02786462
    CAP, BRASS BARREL OF THROTTLE CABLE
    SERIAL 00000000-02786462
  • 37
    49932A1 LEVER ASSEMBLY, CONTROL CABLE LOCKING-ANCHOR BRACKET
    SERIAL 00000000-02786462
    LEVER ASSEMBLY, CONTROL CABLE LOCKING-ANCHOR BRACKET
    SERIAL 00000000-02786462
  • 38
    24-37911 SPRING, CONTROL CABLE LOCKING LEVER
    SERIAL 00000000-02786462
    SPRING, CONTROL CABLE LOCKING LEVER
    SERIAL 00000000-02786462
  • 39
    17-239281 PIN, ROLL-CONTROL CABLE LOCKING LEVER
    SERIAL 00000000-02786462
    PIN, ROLL-CONTROL CABLE LOCKING LEVER
    SERIAL 00000000-02786462
  • 40
    24-38472 SPRING, CABLE TENSION-ANCHOR BRACKET
    SERIAL 00000000-02786462
    SPRING, CABLE TENSION-ANCHOR BRACKET
    SERIAL 00000000-02786462
  • 41
    52732A6 BRACKET, ANCHOR-CONTROL CABLES
    SERIAL 02881082-09999999
    BRACKET, ANCHOR-CONTROL CABLES
    SERIAL 02881082-09999999
  • 42
    39519 CAP, BARREL RETAINER-ANCHOR BRACKET
    SERIAL 02881082-09999999
    CAP, BARREL RETAINER-ANCHOR BRACKET
    SERIAL 02881082-09999999
  • 43
    87609A1 LEVER, NYLON-SHIFT CABLE LOCKING
    SERIAL 02881082-09999999
    LEVER, NYLON-SHIFT CABLE LOCKING
    SERIAL 02881082-09999999
  • 44
    17-47175 PIN, LOCKING LEVER AND COVER FASTENING
    SERIAL 02881082-09999999
    PIN, LOCKING LEVER AND COVER FASTENING
    SERIAL 02881082-09999999
  • 45
    39667 COVER, NYLON-SHIFT CABLE
    SERIAL 02881082-09999999
    COVER, NYLON-SHIFT CABLE
    SERIAL 02881082-09999999
  • 46
    39536 LINK, LOCKING LEVER TO COVER
    SERIAL 02881082-09999999
    LINK, LOCKING LEVER TO COVER
    SERIAL 02881082-09999999
  • 47
    10-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
    SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
  • 48
    24-20099 SPRING, LINK ROD TO GUIDE BLOCK
    SPRING, LINK ROD TO GUIDE BLOCK
  • 49
    37896 GUIDE BLOCK, LINK ROD
    GUIDE BLOCK, LINK ROD
  • 50
    52100 WEAR PLATE, LINK ROD
    WEAR PLATE, LINK ROD
  • 51
    8M0036768 LATCH, CONTROL CABLE FASTENING-ANCHOR BRACKET
    LATCH, CONTROL CABLE FASTENING-ANCHOR BRACKET
  • 52
    12-69056 WASHER, CONTROL CABLE LATCH LINK ROD
    WASHER, CONTROL CABLE LATCH LINK ROD
  • 53
    11-826709109 NUT, LINK ROD
    NUT, LINK ROD
  • 54
    46933A1 GROUND STRAP ASSEMBLY, CRANKCASE TO BOTTOM COWL
    GROUND STRAP ASSEMBLY, CRANKCASE TO BOTTOM COWL
  • 55
    46933A2 GROUND STRAP ASSEMBLY, DRIVE SHAFT HOUSING TO BOTTOM COWL
    GROUND STRAP ASSEMBLY, DRIVE SHAFT HOUSING TO BOTTOM COWL
  • 56
    10-62568 SCREW, GROUND STRAP ATTACHING (3/8")
    SCREW, GROUND STRAP ATTACHING (3/8")
