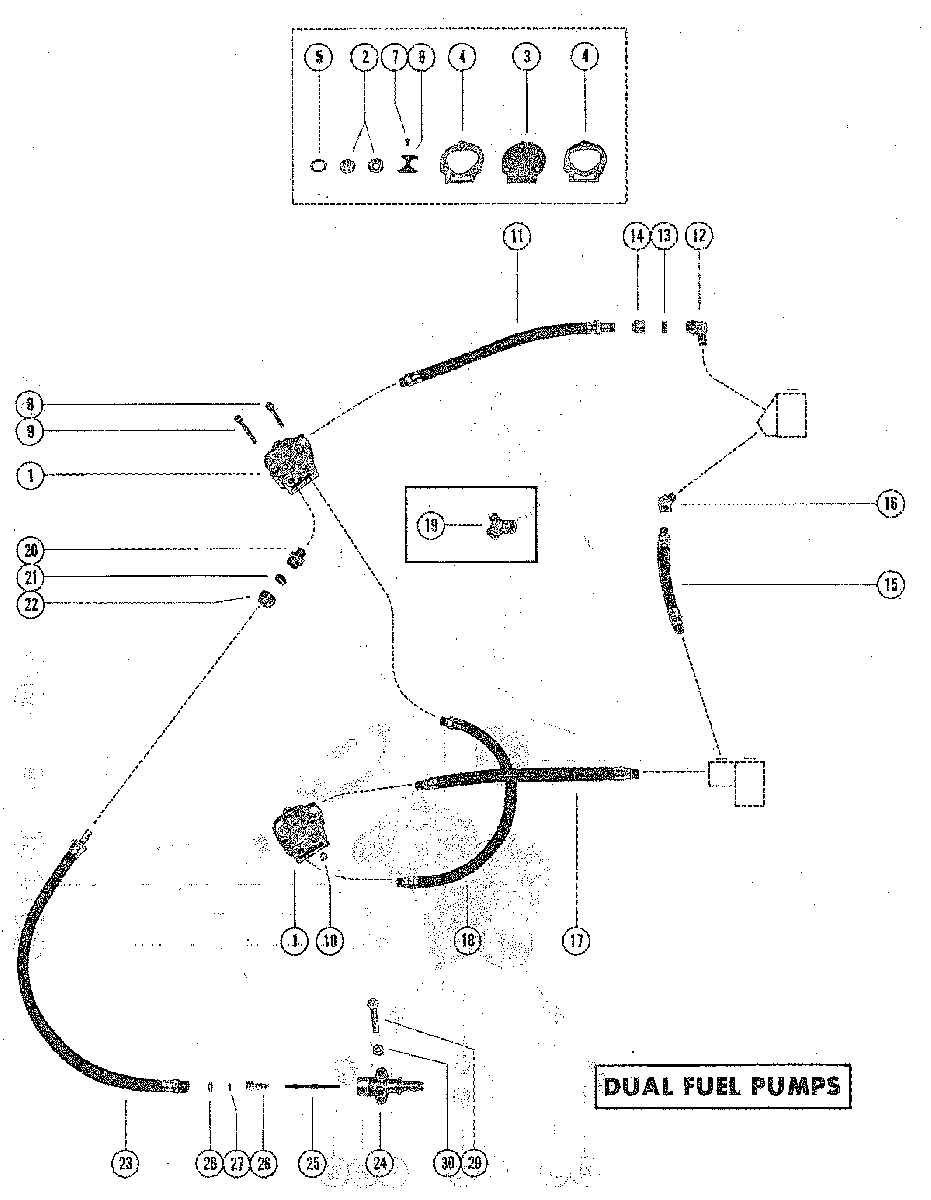

FUEL PUMP AND FUEL LINE ASSEMBLY - DUAL FUEL PUMPS для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912

  • №
    Артикул
    Название
  • 1
    53123A4 FUEL PUMP ASSEMBLY (UPPER AND LOWER)
    SERIAL 00000000-02664411
    FUEL PUMP ASSEMBLY (UPPER AND LOWER)
    SERIAL 00000000-02664411
  • 1
    53123A4 FUEL PUMP ASSEMBLY (UPPER)
    SERIAL 00000000-02670574
    FUEL PUMP ASSEMBLY (UPPER)
    SERIAL 00000000-02670574
  • 1
    54817A3 FUEL PUMP ASSEMBLY (LOWER)
    SERIAL 00000000-02670574
    FUEL PUMP ASSEMBLY (LOWER)
    SERIAL 00000000-02670574
  • 2
    21-30430A1 CHECK VALVE ASSEMBLY
    SERIAL 00000000-02670574
    CHECK VALVE ASSEMBLY
    SERIAL 00000000-02670574
  • 3
    23014A1 DIAPHRAGM KIT
    SERIAL 00000000-02670574
    DIAPHRAGM KIT
    SERIAL 00000000-02670574
  • 4
    90-8M0143356 GASKET, FUEL PUMP
    SERIAL 00000000-02670574
    GASKET, FUEL PUMP
    SERIAL 00000000-02670574
  • 5
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    SERIAL 00000000-02670574
    GASKET, CHECK VALVE TO HOUSING
    SERIAL 00000000-02670574
  • 6
    23004 RETAINER, CHECK VALVE
    SERIAL 00000000-02670574
    RETAINER, CHECK VALVE
    SERIAL 00000000-02670574
  • 7
    10-43725 SCREW, RETAINER TO HOUSING
    SERIAL 00000000-02670574
    SCREW, RETAINER TO HOUSING
    SERIAL 00000000-02670574
  • 8
    10-73013 SCREW, PUMP MOUNTING (1 1/2")
    SERIAL 00000000-02670574
    SCREW, PUMP MOUNTING (1 1/2")
    SERIAL 00000000-02670574
  • 9
    10-30273 SCREW, PUMP MOUNTING (1 7/8")
    SERIAL 00000000-02670574
    SCREW, PUMP MOUNTING (1 7/8")
    SERIAL 00000000-02670574
  • 10
    22-328022 PLUG, PIPE-FUEL PUMP (UPPER AND LOWER)
    SERIAL 00000000-02670574
    PLUG, PIPE-FUEL PUMP (UPPER AND LOWER)
    SERIAL 00000000-02670574
  • 1
    55156A5 FUEL PUMP ASSEMBLY (UPPER AND LOWER)
    SERIAL 02783253-02886331
    FUEL PUMP ASSEMBLY (UPPER AND LOWER)
    SERIAL 02783253-02886331
  • 2
    21-30430A3 CHECK VALVE ASSEMBLY
    SERIAL 02783253-02886331
    CHECK VALVE ASSEMBLY
    SERIAL 02783253-02886331
  • 3
    55278A1 DIAPHRAGM KIT
    SERIAL 02783253-02886331
    DIAPHRAGM KIT
    SERIAL 02783253-02886331
  • 4
    90-8M0143356 GASKET, FUEL PUMP
    SERIAL 02783253-02886331
    GASKET, FUEL PUMP
    SERIAL 02783253-02886331
  • 5
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    SERIAL 02783253-02886331
    GASKET, CHECK VALVE TO HOUSING
    SERIAL 02783253-02886331
  • 6
    23004 RETAINER, CHECK VALVE
    SERIAL 02783253-02886331
    RETAINER, CHECK VALVE
    SERIAL 02783253-02886331
  • 7
    10-43725 SCREW, RETAINER TO HOUSING
    SERIAL 02783253-02886331
    SCREW, RETAINER TO HOUSING
    SERIAL 02783253-02886331
  • 8
    10-69067 SCREW, PUMP MOUNTING (1 3/8")
    SERIAL 02783253-02886331
    SCREW, PUMP MOUNTING (1 3/8")
    SERIAL 02783253-02886331
  • 10
    22-328022 PLUG, PIPE-FUEL PUMP (LOWER)
    SERIAL 02783253-02886331
    PLUG, PIPE-FUEL PUMP (LOWER)
    SERIAL 02783253-02886331
  • 11
    32-32256A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (10 1/2")
    SERIAL 00000000-02670574
    FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (10 1/2")
    SERIAL 00000000-02670574
  • 11
    32-55827A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 1/2")-SERIAL #2783
    SERIAL 02783253-02886331
    FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 1/2")-SERIAL #2783
    SERIAL 02783253-02886331
  • 12
    22-30174 ELBOW (90), UPPER CARBURETOR
    ELBOW (90), UPPER CARBURETOR
  • 13
    22-30175 SLEEVE, UPPER CARBURETOR ELBOW
    SLEEVE, UPPER CARBURETOR ELBOW
  • 14
    22-30177 NUT, UPPER CARBURETOR ELBOW
    NUT, UPPER CARBURETOR ELBOW
  • 15
    32-54578A1 FUEL LINE ASSEMBLY, UPPER TO LOWER CARBURETOR (5 1/2")
    FUEL LINE ASSEMBLY, UPPER TO LOWER CARBURETOR (5 1/2")
  • 16
    22-8M0123050 ELBOW (45), UPPER CARBURETOR
    ELBOW (45), UPPER CARBURETOR
  • 17
    32-52944A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (10")
    SERIAL 00000000-02670574
    FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (10")
    SERIAL 00000000-02670574
  • 17
    32-55826A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 1/4')
    SERIAL 02783253-02886331
    FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 1/4')
    SERIAL 02783253-02886331
  • 18
    32-52943A1 FUEL LINE ASSEMBLY, PUMP TO PUMP (14")
    SERIAL 00000000-02670574
    FUEL LINE ASSEMBLY, PUMP TO PUMP (14")
    SERIAL 00000000-02670574
  • 18
    32-55828A1 FUEL LINE ASSEMBLY, PUMP TO PUMP (13 3/4")
    SERIAL 02783253-02886331
    FUEL LINE ASSEMBLY, PUMP TO PUMP (13 3/4")
    SERIAL 02783253-02886331
  • 19
    22-286241 "Y" FITTING, UPPER FUEL PUMP
    SERIAL 00000000-02664412
    "Y" FITTING, UPPER FUEL PUMP
    SERIAL 00000000-02664412
  • 19
    22-54818 "Y" FITTING, UPPER FUEL PUMP
    SERIAL 02664412-09999999
    "Y" FITTING, UPPER FUEL PUMP
    SERIAL 02664412-09999999
  • 20
    22-30468 CONNECTOR, UPPER FUEL PUMP
    CONNECTOR, UPPER FUEL PUMP
  • 21
    22-30175 SLEEVE, CONNECTOR
    SLEEVE, CONNECTOR
  • 22
    22-30177 NUT, CONNECTOR
    NUT, CONNECTOR
  • 23
    32-30176 FUEL LINE, ADAPTOR TO UPPER FUEL PUMP (18")
    SERIAL 00000000-02670457
    FUEL LINE, ADAPTOR TO UPPER FUEL PUMP (18")
    SERIAL 00000000-02670457
  • 23
    32-55829 FUEL LINE, ADAPTOR TO UPPER FULE PUMP (15")
    SERIAL 02783253-02886331
    FUEL LINE, ADAPTOR TO UPPER FULE PUMP (15")
    SERIAL 02783253-02886331
  • 24
    30186 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 25
    30185Q3 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 26
    24-30189 SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 27
    25-16524 "O"RING, ADAPTOR STEM
    "O"RING, ADAPTOR STEM
  • 28
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 29
    10-88488 SCREW, ADAPTOR TO BOTTOM COWL (3 1/4")
    SCREW, ADAPTOR TO BOTTOM COWL (3 1/4")
  • 29
    10-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
    SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
  • 30
    11-20184 NUT, ADAPTOR FASTENING SCREW
    NUT, ADAPTOR FASTENING SCREW
