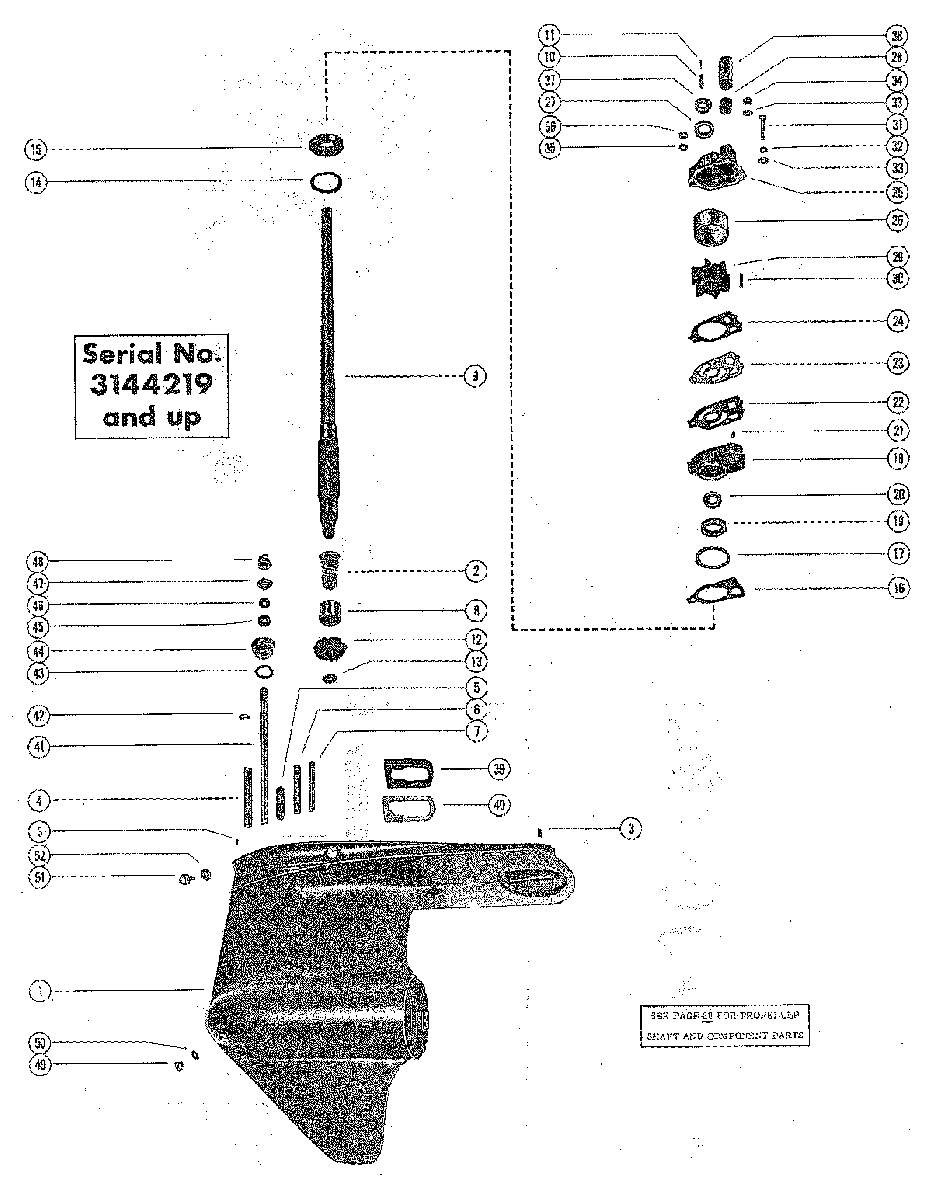

GEAR HOUSING ASSEMBLY, COMPLETE для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912

  • №
    Артикул
    Название
  • -
    1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    A-1623-4021A4 AND A-1623-4021A5 GEAR HOUSING ASSEMBLIES COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 35 AND 38
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    A-1623-4021A4 AND A-1623-4021A5 GEAR HOUSING ASSEMBLIES COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 35 AND 38
  • -
    1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    A-1623-4021A4 AND A-1623-4021A5 GEAR HOUSING ASSEMBLIES COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 35 AND 38
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    A-1623-4021A4 AND A-1623-4021A5 GEAR HOUSING ASSEMBLIES COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 35 AND 38
  • 1
    1623-6052A4 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    23-56513 SLEEVE, LUBRICATION
    SLEEVE, LUBRICATION
  • 3
    17-21438 PIN, GEAR HOUSING
    PIN, GEAR HOUSING
  • 4
    16-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
  • 5
    16-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOSUING (2 1/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOSUING (2 1/16")
  • 6
    16-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOSUING (3 3/8")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOSUING (3 3/8")
  • 7
    16-306671 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
  • 8
    31-32898T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 9
    45-59117A1 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
    DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
  • 9
    45-59116A1 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT ASSEMBLY (LONG SHAFT)
  • 10
    24-34576 SPRING, COMPRESSION - DRIVE SHAFT
    SPRING, COMPRESSION - DRIVE SHAFT
  • 11
    17-30545 PIN, COMPRESSION SPRING RETAINING
    PIN, COMPRESSION SPRING RETAINING
  • 12
    43-56518 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 13
    11-35921 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 14
    15-57007A1 SHIM, TAPERED ROLLER BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, TAPERED ROLLER BEARING TO GEAR HOUSING (.002-3-5-10)
  • 15
    31-33138A1 TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
    TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
  • 16
    27-856704 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 17
    25-33145 "O" RING, WAER PUMP BASE
    "O" RING, WAER PUMP BASE
  • 18
    46-58618A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 19
    26-94038 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 20
    26-55682 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 21
    17-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP
    DOWEL PIN, WATER PUMP BASE TO WATER PUMP
  • 22
    27-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
  • 23
    324351 PLATE, FACE - WATER PUMP BASSE TO WATER PUMP BODY
    PLATE, FACE - WATER PUMP BASSE TO WATER PUMP BODY
  • 24
    27-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
  • 25
    46-96148T1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 26
    48752T INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 27
    26-16977 OIL SEAL, WATER PUMP BODY
    OIL SEAL, WATER PUMP BODY
  • 28
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 29
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 30
    28-8M0032834 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 31
    10-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
    SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
  • 32
    13-26992 LOCKWASHER, WATER PUMP BODY SCREW
    LOCKWASHER, WATER PUMP BODY SCREW
  • 33
    12-29245 WASHER, WATER PUMP BODY FASTENING SCREW AND STUD
    WASHER, WATER PUMP BODY FASTENING SCREW AND STUD
  • 34
    11-826709109 NUT, WATER PUMP BODY FASTENING STUD
    NUT, WATER PUMP BODY FASTENING STUD
  • 35
    12-36001 WASHER, WATER PUMP BODY FASTENING STUD
    WASHER, WATER PUMP BODY FASTENING STUD
  • 37
    25-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 38
    23-29804T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 39
    37641001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 40
    38051 PLATE, SUPPORT - EXHUAST TUBE SEAL
    PLATE, SUPPORT - EXHUAST TUBE SEAL
  • 41
    76062A1 SHAFT ASSEMBLY, SHIFT - LOWER
    SHAFT ASSEMBLY, SHIFT - LOWER
  • 42
    53-29641 "E" RING, RETIANING, LOWER SHIFT SHAFT
    "E" RING, RETIANING, LOWER SHIFT SHAFT
  • 43
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 44
    23-77631A2 BUSHING ASSEMBLY, SHIF SHAFT
    BUSHING ASSEMBLY, SHIF SHAFT
  • 45
    26-24590 OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
    OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
  • 45
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
    OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
  • 46
    12-31266 WASHER, RUBBER - SHIF SHAFT BUSHING
    WASHER, RUBBER - SHIF SHAFT BUSHING
  • 47
    78036 SPACER, LOWER - REVERSE LOCKING
    SPACER, LOWER - REVERSE LOCKING
  • 48
    43308T1 CAM, REVERSE LOCKING
    CAM, REVERSE LOCKING
  • 49
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
  • 50
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SRCEW
    WASHER, GREASE FILLER AND VENT HOLE SRCEW
  • 51
    19-48750 PLUG, GEAR HOSUING FLUSHING HOLE
    PLUG, GEAR HOSUING FLUSHING HOLE
  • 52
    12-49221 WASHER, GEAR HOUSING FLUSHING HOLE PLUG
    WASHER, GEAR HOUSING FLUSHING HOLE PLUG
