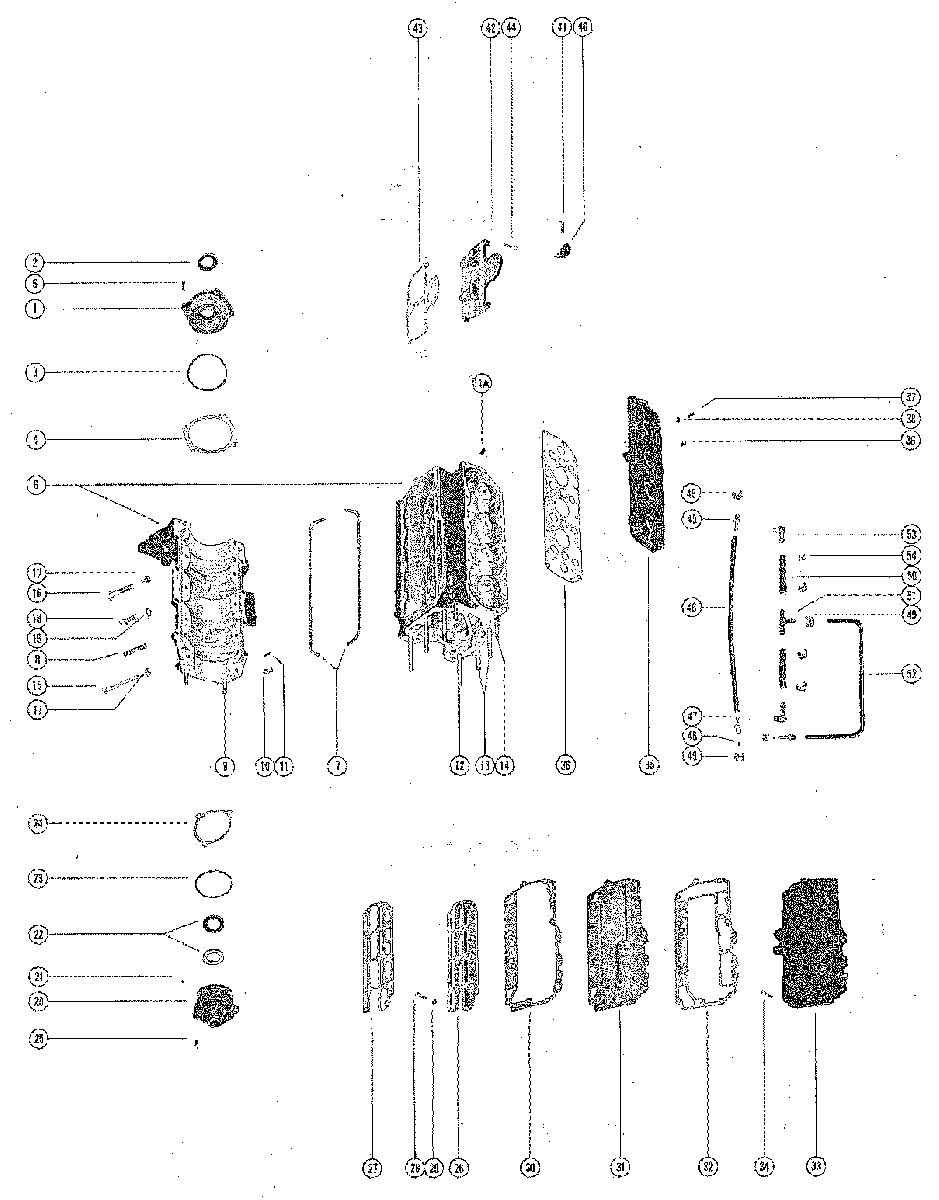

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912

  • №
    Артикул
    Название
  • 1
    1134-3197A1 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 2
    26-41953 OIL SEAL
    OIL SEAL
  • 3
    25-47254 "O"RING
    "O"RING
  • 4
    15-47248A1 SHIM ASSEMBLY, END CAP TO CRANKCASE (.006-8-10)
    SHIM ASSEMBLY, END CAP TO CRANKCASE (.006-8-10)
  • 5
    10-30225 SCREW, END CAP MOUNTING (1")
    SCREW, END CAP MOUNTING (1")
  • 6
    847-3920A4 CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SERIAL #2670574 AND BELOW)
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SERIAL #2670574 AND BELOW)
  • 6
    847-3920A4 CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SERIAL #2783253 THRU)
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SERIAL #2783253 THRU)
  • 6
    847-3920A4 CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SERIAL #2986444 AND UP)
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SERIAL #2986444 AND UP)
  • 7
    27-53650 GASKET, CRANKCASE TO CYLINDER BLOCK
    GASKET, CRANKCASE TO CYLINDER BLOCK
  • 8
    16-64936 STUD, CARBURETOR MOUNTING (1 3/16")
    STUD, CARBURETOR MOUNTING (1 3/16")
  • 9
    16-64281 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 7/8")
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 7/8")
  • 10
    17-43044 PIN, DOWEL-CRANKCASE TO CYLINDER BLOCK
    PIN, DOWEL-CRANKCASE TO CYLINDER BLOCK
  • 11
    17-20323 PIN, DOWEL-CYLINDER BLOCK TO MAIN BEARING
    PIN, DOWEL-CYLINDER BLOCK TO MAIN BEARING
  • 11A
    66517 RESTRICTOR, CRANKCASE BLEED
    RESTRICTOR, CRANKCASE BLEED
  • 12
    16-26134 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4 1/16")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4 1/16")
  • 13
    16-48770 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 9/16")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 9/16")
  • 14
    16-26324 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 7/8")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 7/8")
  • 15
    10-53460 SCREW, CRANKCASE TO CYLINDER BLOCK (2 5/8")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 5/8")
  • 15
    10-32293 SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
  • --
    12-26825 WASHER, CRANKCASE TO CYLINDER BLOCK SCREW
    WASHER, CRANKCASE TO CYLINDER BLOCK SCREW
  • 16
    10-69091 SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")
  • --
    12-22753 WASHER, CRANKCASE TO CYLINDER BLOCK SCREW (LOWER)
    WASHER, CRANKCASE TO CYLINDER BLOCK SCREW (LOWER)
  • 17
    11-29250 NUT, CRANKCASE FASTENING SCREW
    NUT, CRANKCASE FASTENING SCREW
  • 18
    10-20359 SCREW, CENTER MAIN BEARING LOCKING (1")
    SCREW, CENTER MAIN BEARING LOCKING (1")
  • 19
    14-20091 TAB WASHER, BEARING LOCKING SCREW
    TAB WASHER, BEARING LOCKING SCREW
  • 20
    1126-3196A3 END CAP ASSEMBLY, LOWER-SERIAL # AND BELOW
    SERIAL 00000000-02670574
    END CAP ASSEMBLY, LOWER-SERIAL # AND BELOW
    SERIAL 00000000-02670574
  • 21
    21-28481A1 CHECK VALVE ASSEMBLY, END CAP
    SERIAL 00000000-02670574
    CHECK VALVE ASSEMBLY, END CAP
    SERIAL 00000000-02670574
  • 22
    26-41953 OIL SEAL, UPPER
    SERIAL 00000000-02670574
    OIL SEAL, UPPER
    SERIAL 00000000-02670574
  • 23
    25-20081 "O"RING
    SERIAL 00000000-02670574
    "O"RING
    SERIAL 00000000-02670574
  • 20
    1126-3196A3 END CAP ASSEMBLY, LOWER-SERIAL # AND UP
    SERIAL 02783253-09999999
    END CAP ASSEMBLY, LOWER-SERIAL # AND UP
    SERIAL 02783253-09999999
  • 21
    21-42657A3 CHECK VALVE ASSEMBLY, END CAP
    SERIAL 02783253-09999999
    CHECK VALVE ASSEMBLY, END CAP
    SERIAL 02783253-09999999
  • 22
    26-41953 OIL SEAL, UPPER
    SERIAL 02783253-09999999
    OIL SEAL, UPPER
    SERIAL 02783253-09999999
  • 23
    25-20081 "O"RING
    SERIAL 02783253-09999999
    "O"RING
    SERIAL 02783253-09999999
  • 24
    15-20085A1 SHIM, END CAP TO CRANKCASE (.002-3-5-10)
    SHIM, END CAP TO CRANKCASE (.002-3-5-10)
  • 25
    10-30225 SCREW, END CAP MOUNTING (1")
    SCREW, END CAP MOUNTING (1")
  • 26
    49993 COVER, WATER JACKET-CYLINDER BLOCK-
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLIES
    COVER, WATER JACKET-CYLINDER BLOCK-
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLIES
  • 27
    27-73665 GASKET, WATER JACKET COVER
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLIES
    GASKET, WATER JACKET COVER
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLIES
  • 28
    10-53167T SCREW, WATER JACKET COVER TO CYLINDER BLOCK (7/8")
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLIES
    SCREW, WATER JACKET COVER TO CYLINDER BLOCK (7/8")
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLIES
  • 29
    13-53166 LOCKWASHER, WATER JACKET COVER FASTENING SCREW
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLIES
    LOCKWASHER, WATER JACKET COVER FASTENING SCREW
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLIES
  • 30
    27-52894 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 31
    52098T PLATE, BAFFLE-EXHAUST MANIFOLD
    PLATE, BAFFLE-EXHAUST MANIFOLD
  • 32
    27-52895 GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
    GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
  • 33
    52166 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 34
    10-38837 SCREW, MANIFOLD COVER MOUNTING (1 1/8")
    SCREW, MANIFOLD COVER MOUNTING (1 1/8")
  • 35
    1021-7699 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 36
    27-85493 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 37
    10-21091 SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8")
    SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8")
  • 38
    11-20184 NUT, COVER MOUNTING SCREW
    NUT, COVER MOUNTING SCREW
  • 39
    22-328022 PLUG, PIPE-CYLINDER BLOCK COVER
    PLUG, PIPE-CYLINDER BLOCK COVER
  • 40
    37440 BRACKET, MOUNT SUPPORT-CYLINDER BLOCK
    BRACKET, MOUNT SUPPORT-CYLINDER BLOCK
  • 41
    10-35386 SCREW, BRACKET TO CYLINDER BLOCK (1")
    SCREW, BRACKET TO CYLINDER BLOCK (1")
  • 42
    52391 COVER, TRANSFER PORT
    SERIAL 00000000-02670574
    COVER, TRANSFER PORT
    SERIAL 00000000-02670574
  • 42
    62978 COVER, TRANSFER PORT
    SERIAL 02783253-02881681
    COVER, TRANSFER PORT
    SERIAL 02783253-02881681
  • 42
    57752 COVER, TRANSFER PORT
    SERIAL 02881682-02886331
    COVER, TRANSFER PORT
    SERIAL 02881682-02886331
  • 42
    62302 COVER, TRANSFER PORT-TOP
    SERIAL 02986444-03192962
    COVER, TRANSFER PORT-TOP
    SERIAL 02986444-03192962
  • 42
    62301 COVER, TRANSFER PORT-BOTTOM
    SERIAL 02986444-03192962
    COVER, TRANSFER PORT-BOTTOM
    SERIAL 02986444-03192962
  • 42
    62302 COVER, TRANSFER PORT-TOP
    SERIAL 03307347-09999999
    COVER, TRANSFER PORT-TOP
    SERIAL 03307347-09999999
  • 42
    62301 COVER, TRANSFER PORT-BOTTOM
    SERIAL 03307347-09999999
    COVER, TRANSFER PORT-BOTTOM
    SERIAL 03307347-09999999
  • 43
    27-52891 GASKET, TRANSFER PORT COVER
    SERIAL 00000000-02670574
    GASKET, TRANSFER PORT COVER
    SERIAL 00000000-02670574
  • 43
    27-62107 GASKET, TRANSFER PORT COVER
    SERIAL 02783253-09999999
    GASKET, TRANSFER PORT COVER
    SERIAL 02783253-09999999
  • 44
    10-76630 SCREW, TRANSFER PORT COVER MOUNTING (1")
    SCREW, TRANSFER PORT COVER MOUNTING (1")
  • 44
    10-28636 SCREW, TRANSFER PORT COVER MOUNTING (3/4")
    SERIAL 00000000-02670574
    SCREW, TRANSFER PORT COVER MOUNTING (3/4")
    SERIAL 00000000-02670574
  • 44
    10-28636 SCREW, TRANSFER PORT COVER MOUNTING (3/4")
    SERIAL 02783253-09999999
    SCREW, TRANSFER PORT COVER MOUNTING (3/4")
    SERIAL 02783253-09999999
  • 45
    22-67902 CONNECTOR, CYLINDER BLEED HOSE-UPPER
    CONNECTOR, CYLINDER BLEED HOSE-UPPER
  • 46
    32-9912688 HOSE, UPPER CYLINDER BLEED (13 1/2")
    HOSE, UPPER CYLINDER BLEED (13 1/2")
  • 47
    22-62365A1 CHECK VALVE ASSEMBLY, BLEED HOSE
    CHECK VALVE ASSEMBLY, BLEED HOSE
  • 48
    21-28481A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 49
    54-20387 CLAMP, BLEED HOSE TO CONNECTOR
    CLAMP, BLEED HOSE TO CONNECTOR
  • 50
    32-8M0108355 TUBE, BALANCE-MAIN BEARING (2 7/8")
    TUBE, BALANCE-MAIN BEARING (2 7/8")
  • 51
    22-54153 TEE, BLEED HOSE TO CYLINDER BLOCK-LOWER
    TEE, BLEED HOSE TO CYLINDER BLOCK-LOWER
  • 52
    32-9912688 HOSE, CYLINDER BLEED-LOWER (8 1/2")
    HOSE, CYLINDER BLEED-LOWER (8 1/2")
  • 53
    22-20781 ELBOW, BALANCE TUBE TO CRANKCASE
    ELBOW, BALANCE TUBE TO CRANKCASE
  • 54
    54-20386 CLAMP, BALANCE TUBE TO ELBOW AND TEE
    SERIAL 00000000-02670574
    CLAMP, BALANCE TUBE TO ELBOW AND TEE
    SERIAL 00000000-02670574
