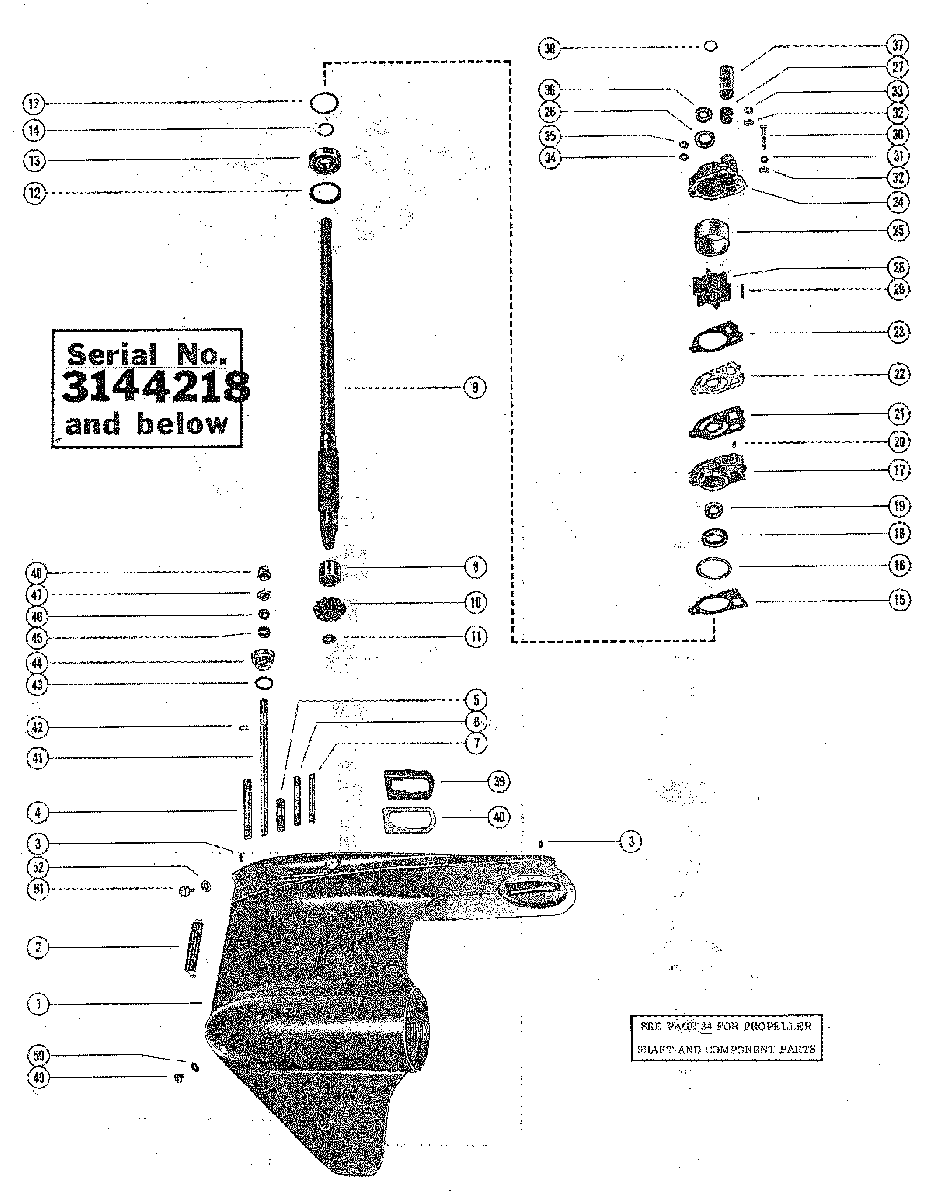

GEAR HOUSING ASSEMBLY, COMPLETE для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912
-
№АртикулНазвание
-
-1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
A-1623-3486A22, A-1623-3486A23, A-1623-39124 AND A-1623-3912A5 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 31 AND 34 SERIAL 00000000-02670574GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
A-1623-3486A22, A-1623-3486A23, A-1623-39124 AND A-1623-3912A5 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 31 AND 34 SERIAL 00000000-02670574 -
-1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
A-1623-3486A22, A-1623-3486A23, A-1623-39124 AND A-1623-3912A5 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 31 AND 34 SERIAL 00000000-02670574GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
A-1623-3486A22, A-1623-3486A23, A-1623-39124 AND A-1623-3912A5 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 31 AND 34 SERIAL 00000000-02670574 -
-1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
A-1623-3486A22, A-1623-3486A23, A-1623-39124 AND A-1623-3912A5 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 31 AND 34 SERIAL 02783253-09999999GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
A-1623-3486A22, A-1623-3486A23, A-1623-39124 AND A-1623-3912A5 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 31 AND 34 SERIAL 02783253-09999999 -
-1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
A-1623-3486A22, A-1623-3486A23, A-1623-39124 AND A-1623-3912A5 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 31 AND 34 SERIAL 02783253-09999999GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
A-1623-3486A22, A-1623-3486A23, A-1623-39124 AND A-1623-3912A5 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 31 AND 34 SERIAL 02783253-09999999 -
11623-5244A14 GEAR HOUSING ASSEMBLY
SERIAL 00000000-02670574GEAR HOUSING ASSEMBLY
SERIAL 00000000-02670574 -
11623-5244A14 GEAR HOUSING ASSEMBLY
SERIAL 02783253-09999999GEAR HOUSING ASSEMBLY
SERIAL 02783253-09999999 -
255662 SCREEN, WATER INLET (EARLY MODELS ONLY)SCREEN, WATER INLET (EARLY MODELS ONLY)
-
317-21438 PIN, DOWELPIN, DOWEL
-
416-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
-
516-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")
-
616-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
-
716-57919 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 5/16")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 5/16")
-
831-32898T BEARING, ROLLER-DRIVE SHAFTBEARING, ROLLER-DRIVE SHAFT
-
945-47433 DRIVE SHAFT (SHORT SHAFT)DRIVE SHAFT (SHORT SHAFT)
-
945-47434 DRIVE SHAFT (LONG SHAFT)DRIVE SHAFT (LONG SHAFT)
-
1043-53981 GEAR, PINION-DRIVE SHAFTGEAR, PINION-DRIVE SHAFT
-
1111-35921 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1215-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)
-
1330-63326T BEARING, BALL-DRIVE SHAFTBEARING, BALL-DRIVE SHAFT
-
1453-30726 RING, RETAINING-BALL BEARINGRING, RETAINING-BALL BEARING
-
1215-30278A1 SHIM, WATER PUMP BASE TO GEAR HOUSING (.002-3-5-10)SHIM, WATER PUMP BASE TO GEAR HOUSING (.002-3-5-10)
-
1527-32438 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
1625-30224 "O"RING, WATER PUMP BASE"O"RING, WATER PUMP BASE
-
1746-48747A1 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1826-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1926-16977 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
2017-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
-
2127-8M0090319 GASKET, LOWER-WATER PUMP BASE TO FACE PLATEGASKET, LOWER-WATER PUMP BASE TO FACE PLATE
-
22324351 PLATE, FACE-WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE-WATER PUMP BASE TO WATER PUMP BODY
-
2327-858524 GASKET, UPPER-FACE PLATE TO WATER PUMP BODYGASKET, UPPER-FACE PLATE TO WATER PUMP BODY
-
2446-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2548752T INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2626-16977 OIL SEAL, WATER PUMP BODYOIL SEAL, WATER PUMP BODY
-
2726-38970 SEAL, RUBBER-WATER INLET TUBESEAL, RUBBER-WATER INLET TUBE
-
2847-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2917-8M0034466 PIN, IMPELLER DRIVE
SERIAL 00000000-02670574PIN, IMPELLER DRIVE
SERIAL 00000000-02670574 -
2928-8M0032834 KEY, IMPELLER DRIVE
SERIAL 02783253-09999999KEY, IMPELLER DRIVE
SERIAL 02783253-09999999 -
3010-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
-
3113-26992 LOCKWASHER, WATER PUMP BODY SCREWLOCKWASHER, WATER PUMP BODY SCREW
-
3212-29245 WASHER, WATER PUMP BODY FASTENING SCREW AND STUDWASHER, WATER PUMP BODY FASTENING SCREW AND STUD
-
3311-826709109 NUT, WATER PUMP BODY FASTENING STUDNUT, WATER PUMP BODY FASTENING STUD
-
3412-36001 WASHER, WATER PUMP BODY FASTENING STUDWASHER, WATER PUMP BODY FASTENING STUD
-
3511-826709111 NUT, WATER PUMP BODY FASTENING STUDNUT, WATER PUMP BODY FASTENING STUD
-
3625-30271 RING, RUBBER-CENTRIRFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER-CENTRIRFUGAL SLINGER (DRIVE SHAFT)
-
3723-29804T SLEEVE, GUIDE-WATER INLET TUBESLEEVE, GUIDE-WATER INLET TUBE
-
3825-30613 "O"RING, UPPER-DRIVE SHAFT"O"RING, UPPER-DRIVE SHAFT
-
3937641001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
4038051 PLATE, SUPPORT-EXHAUST TUBE SEALPLATE, SUPPORT-EXHAUST TUBE SEAL
-
4176062A1 SHAFT, SHIFT-LOWER-SERIAL
SERIAL 00000000-02670574SHAFT, SHIFT-LOWER-SERIAL
SERIAL 00000000-02670574 -
4253-29641 CLIP, RETAINING-SHIFT SHAFT
SERIAL 00000000-02670574CLIP, RETAINING-SHIFT SHAFT
SERIAL 00000000-02670574 -
4176062A1 SHAFT ASSEMBLY, SHIFT-LOWER
SERIAL 02783253-09999999SHAFT ASSEMBLY, SHIFT-LOWER
SERIAL 02783253-09999999 -
4253-29641 "E"RING, SHIFT SHAFT
SERIAL 02783253-09999999"E"RING, SHIFT SHAFT
SERIAL 02783253-09999999 -
4325-25439 "O"RING, SHIFT SHAFT BUSHING"O"RING, SHIFT SHAFT BUSHING
-
4423-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
SERIAL 00000000-02670574BUSHING ASSEMBLY, SHIFT SHAFT
SERIAL 00000000-02670574 -
4423-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
SERIAL 02783253-09999999BUSHING ASSEMBLY, SHIFT SHAFT
SERIAL 02783253-09999999 -
4526-24590 OIL SEAL, SHIFT SHAFT BUSHING (LOWER)OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
-
4526-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
-
4612-31266 WASHER, RUBBER-SHIFT SHAFT BUSHINGWASHER, RUBBER-SHIFT SHAFT BUSHING
-
4778036 SPACER, LOWER-REVERSE LOCKSPACER, LOWER-REVERSE LOCK
-
4843308T1 CAM, REVERSE LOCKINGCAM, REVERSE LOCKING
-
4910-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
5012-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
5119-48750 PLUG, GEAR HOUSING FLUSHING HOLEPLUG, GEAR HOUSING FLUSHING HOLE
-
5212-49221 WASHER, GEAR HOUSING FLUSHING HOLE PLUGWASHER, GEAR HOUSING FLUSHING HOLE PLUG
