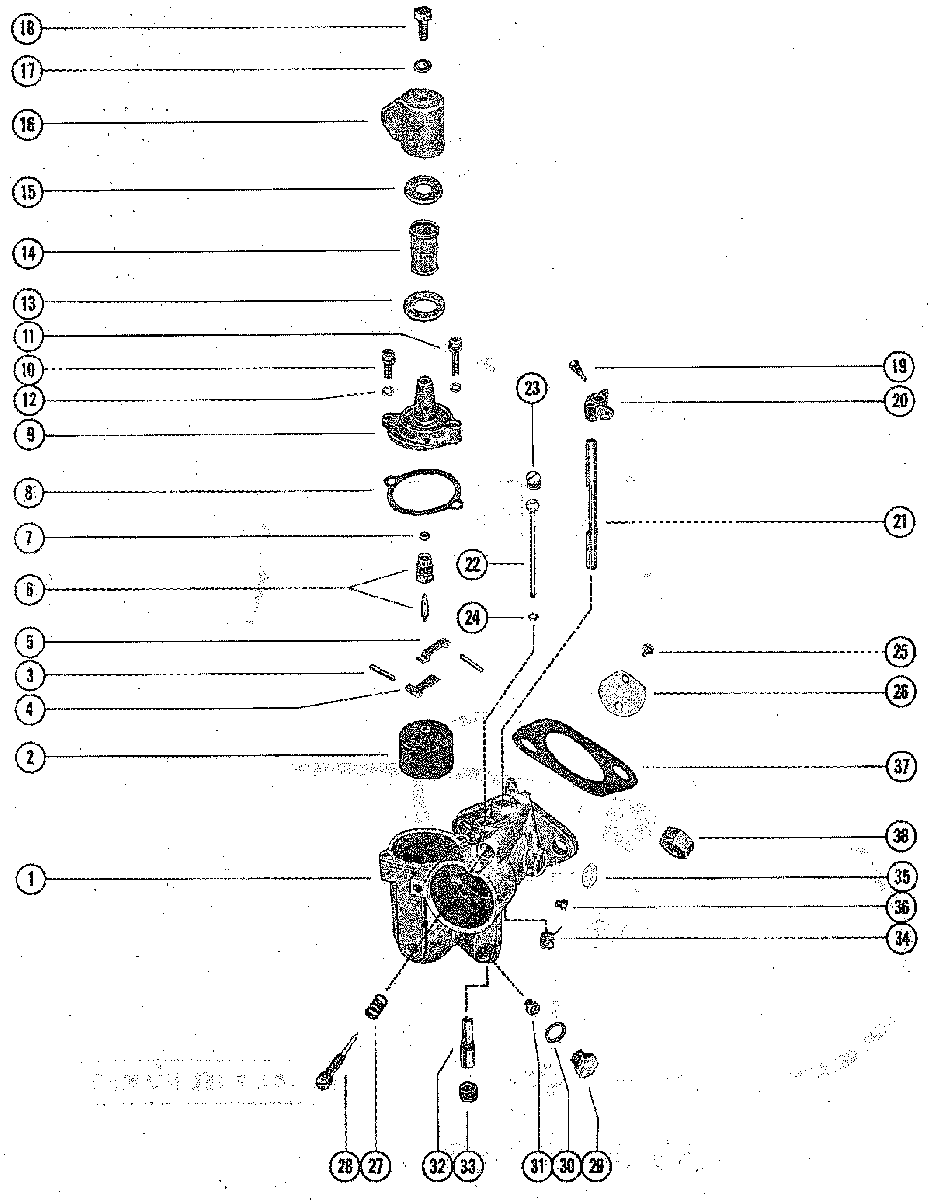

CARBURETOR ASSEMBLY для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912

  • №
    Артикул
    Название
  • 1
    1352-4440A1 CARBURETOR ASSEMBLY, COMPLETE (KD-4A)
    SERIAL 00000000-02991033
    CARBURETOR ASSEMBLY, COMPLETE (KD-4A)
    SERIAL 00000000-02991033
  • 1
    1352-4440A1 CARBURETOR ASSEMBLY, COMPLETE (WMK-2)
    SERIAL 03051041-09999999
    CARBURETOR ASSEMBLY, COMPLETE (WMK-2)
    SERIAL 03051041-09999999
  • 2
    1395-8673 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 3
    90-8M0143356 PIN, FLOAT LEVER PINION
    PIN, FLOAT LEVER PINION
  • 4
    90-8M0143356 LEVER, FLOAT (LOWER)
    LEVER, FLOAT (LOWER)
  • 5
    90-8M0143356 LEVER, FLOAT (UPPER)
    LEVER, FLOAT (UPPER)
  • 6
    1395-92581 INLET NEEDLE, SEAT AND GASKET
    SERIAL 00000000-02991033
    INLET NEEDLE, SEAT AND GASKET
    SERIAL 00000000-02991033
  • 6
    1395-83181 INLET NEEDLE, SEAT AND GASKET
    SERIAL 03051041-09999999
    INLET NEEDLE, SEAT AND GASKET
    SERIAL 03051041-09999999
  • 7
    90-8M0143356 GASKET, INLET SEAT
    GASKET, INLET SEAT
  • 8
    90-8M0143356 GASKET, FLOAT BOWL COVER
    GASKET, FLOAT BOWL COVER
  • 9
    1399-1133 COVER, FLOAT BOWL
    SERIAL 00000000-02991033
    COVER, FLOAT BOWL
    SERIAL 00000000-02991033
  • 9
    1399-4559 COVER, FLOAT BOWL
    SERIAL 03051041-09999999
    COVER, FLOAT BOWL
    SERIAL 03051041-09999999
  • 10
    10-52195 SCREW, FLOAT BOWL COVER (SHORT)
    SCREW, FLOAT BOWL COVER (SHORT)
  • 11
    10-52196 SCREW, FLOAT BOWL COVER (LONG)
    SCREW, FLOAT BOWL COVER (LONG)
  • 12
    13-26995 LOCKWASHER, FLOAT BOWL COVER SCREW
    LOCKWASHER, FLOAT BOWL COVER SCREW
  • 13
    90-8M0143356 GASKET, STRAINER COVER (LARGE)
    GASKET, STRAINER COVER (LARGE)
  • 14
    1399-3938 SCREEN, FILTER
    SCREEN, FILTER
  • 15
    90-8M0143356 GASKET, STRAINER COVER (SMALL)
    GASKET, STRAINER COVER (SMALL)
  • 16
    1399-4791A1 COVER, STRAINER (UPPER CARBURETOR)
    COVER, STRAINER (UPPER CARBURETOR)
  • 16
    1399-3698 COVER, STRAINER-LOWER CARBURETOR
    SERIAL 00000000-02991033
    COVER, STRAINER-LOWER CARBURETOR
    SERIAL 00000000-02991033
  • 16
    1399-4791A1 COVER, STRAINER-LOWER CARBURETOR
    SERIAL 03051041-09999999
    COVER, STRAINER-LOWER CARBURETOR
    SERIAL 03051041-09999999
  • 17
    90-8M0143356 GASKET, STRAINER COVER SCREW
    GASKET, STRAINER COVER SCREW
  • 18
    10-25822 SCREW, STRAINER COVER FASTENING
    SCREW, STRAINER COVER FASTENING
  • 19
    1395-6027 SCREW, THROTTLE STOP LEVER
    SCREW, THROTTLE STOP LEVER
  • 20
    8146791 LEVER, THROTTLE STOP
    USED ON LOWER CARBURETOR ONLY--REPLACED WITH A-52518 CLUSTER ON UPPER CARBURETOR.
    LEVER, THROTTLE STOP
    USED ON LOWER CARBURETOR ONLY--REPLACED WITH A-52518 CLUSTER ON UPPER CARBURETOR.
  • 21
    1395-7942 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 22
    90-8M0143356 TUBE, IDLE
    TUBE, IDLE
  • 23
    10-23178 SCREW, BODY (IDLE TUBE)
    SERIAL 00000000-02991033
    SCREW, BODY (IDLE TUBE)
    SERIAL 00000000-02991033
  • 23
    1395-4540 SCREW, BODY (IDLE TUBE)
    SERIAL 03051041-09999999
    SCREW, BODY (IDLE TUBE)
    SERIAL 03051041-09999999
  • 24
    90-8M0143356 GASKET, IDLE TUBE
    SERIAL 00000000-02991033
    GASKET, IDLE TUBE
    SERIAL 00000000-02991033
  • 25
    90-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTER
    SCREW AND LOCKWASHER, THROTTLE SHUTTER
  • 26
    1395-9017 SHUTTER, THROTTLE
    SHUTTER, THROTTLE
  • 27
    90-8M0143356 SPRING, IDLE ADJUSTMENT SCREW
    SPRING, IDLE ADJUSTMENT SCREW
  • 28
    1399-3515 SCREW, IDLE ADJUSTMENT
    SCREW, IDLE ADJUSTMENT
  • 29
    10-28405 SCREW, PLUG-MAIN FUEL JET CHANNEL
    SERIAL 00000000-02991033
    SCREW, PLUG-MAIN FUEL JET CHANNEL
    SERIAL 00000000-02991033
  • 29
    1395-4541 SCREW, PLUG-MAIN FUEL JET CHANNEL
    SERIAL 03051041-09999999
    SCREW, PLUG-MAIN FUEL JET CHANNEL
    SERIAL 03051041-09999999
  • 30
    90-8M0143356 GASKET, JET CHANNEL PLUG SCREW
    GASKET, JET CHANNEL PLUG SCREW
  • 31
    1399-3796 JET, MAIN FUEL (.076)
    JET, MAIN FUEL (.076)
  • 31
    1399-3794 JET, MAIN FUEL (.074)-STANDARD
    JET, MAIN FUEL (.074)-STANDARD
  • 31
    1395-6207 JET, MAIN FUEL (.072)
    JET, MAIN FUEL (.072)
  • 31
    1395-6030 JET, MAIN FUEL (.070)
    JET, MAIN FUEL (.070)
  • 32
    90-8M0143356 NOZZLE, MAIN
    NOZZLE, MAIN
  • 33
    1399-3522 SCREW, PLUG-MAIN NOZZLE
    SERIAL 00000000-02991033
    SCREW, PLUG-MAIN NOZZLE
    SERIAL 00000000-02991033
  • 33
    1395-4542 SCREW, PLUG-MAIN NOZZLE
    SERIAL 03051041-09999999
    SCREW, PLUG-MAIN NOZZLE
    SERIAL 03051041-09999999
  • 34
    90-8M0143356 SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)
    SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)
  • 34
    90-8M0143356 SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
    SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
  • 35
    90-8M0143356 WELCH PLUG, BODY CHANNEL
    WELCH PLUG, BODY CHANNEL
  • 36
    10-23030 SCREW, BODY CHANNEL
    SERIAL 00000000-02991033
    SCREW, BODY CHANNEL
    SERIAL 00000000-02991033
  • 36
    1395-4543 SCREW, BODY CHANNEL
    SERIAL 03051041-09999999
    SCREW, BODY CHANNEL
    SERIAL 03051041-09999999
  • --
    1395-879194024 GASKET AND PACKING SET (1 PER CARBURETOR)
    GASKET AND PACKING SET (1 PER CARBURETOR)
  • --
    1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)
    SERIAL 00000000-02991033
    REPAIR PARTS KIT (1 PER CARBURETOR)
    SERIAL 00000000-02991033
  • --
    1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)
    SERIAL 03051041-09999999
    REPAIR PARTS KIT (1 PER CARBURETOR)
    SERIAL 03051041-09999999
  • 37
    27-481641 GASKET, CARBURETOR FLANGE
    GASKET, CARBURETOR FLANGE
  • 38
    11-29250 NUT, CARBURETOR MOUNTING STUD
    NUT, CARBURETOR MOUNTING STUD
