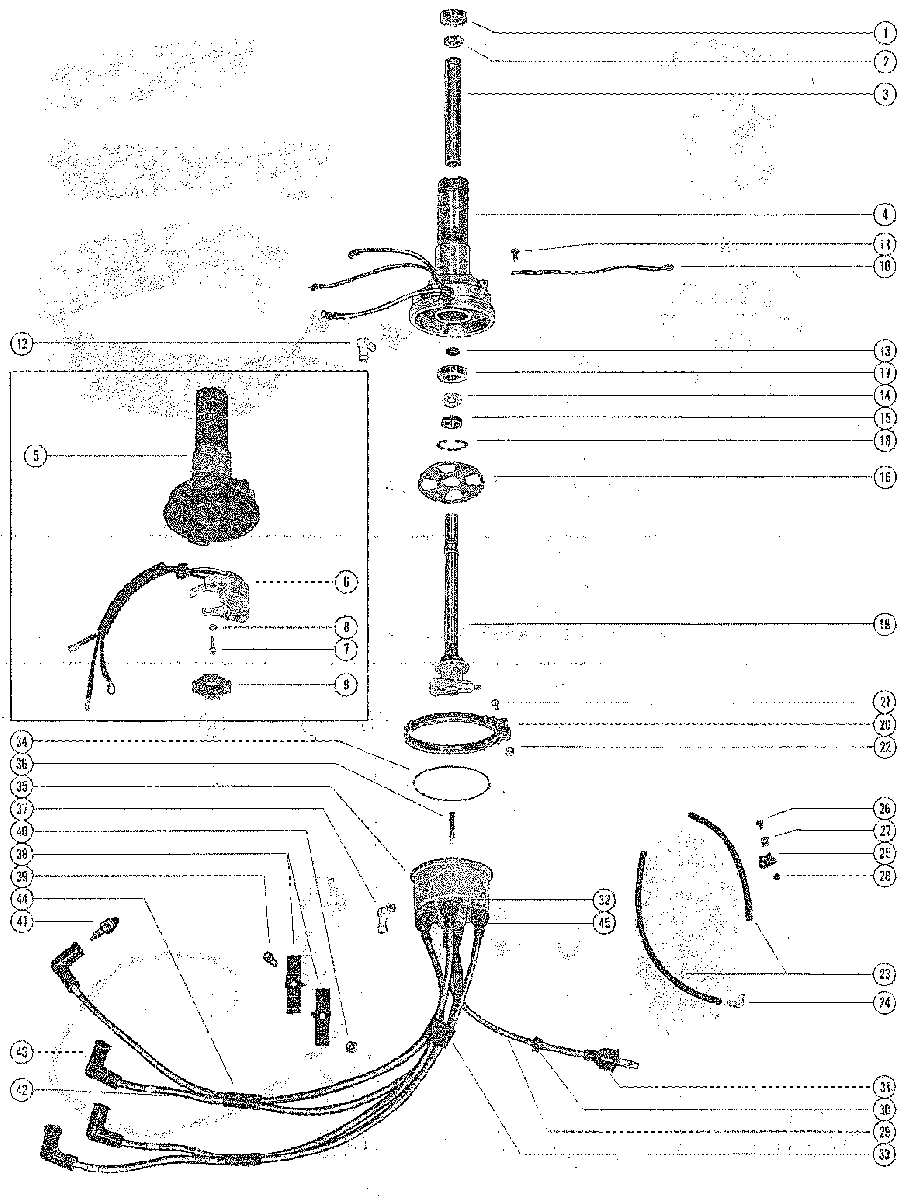

DISTRIBUTOR HOUSING AND ROTOR для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912

  • №
    Артикул
    Название
  • 1
    30-20066 BALL BEARING, DISTRIBUTOR HOUSING (UPPER)
    BALL BEARING, DISTRIBUTOR HOUSING (UPPER)
  • 2
    11-54209 NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING
    NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING
  • 3
    23-53539 SLEEVE, ROTOR SHAFT
    SLEEVE, ROTOR SHAFT
  • 4
    393-3736A79 HOUSING ASSEMBLY, DISTRIBUTOR
    SERIAL 00000000-02991033
    HOUSING ASSEMBLY, DISTRIBUTOR
    SERIAL 00000000-02991033
  • 5
    337-4479 HOUSING, DISTRIBUTOR
    SERIAL 03051041-03052380
    HOUSING, DISTRIBUTOR
    SERIAL 03051041-03052380
  • 6
    393-3736A78 TRIGGER ASSEMBLY, DISTRIBUTOR
    SERIAL 03051041-03052380
    TRIGGER ASSEMBLY, DISTRIBUTOR
    SERIAL 03051041-03052380
  • 7
    10-29072 SCREW, TRIGGER COIL TO DISTRIBUTOR HOUSING
    SERIAL 03051041-03052380
    SCREW, TRIGGER COIL TO DISTRIBUTOR HOUSING
    SERIAL 03051041-03052380
  • 8
    13-69432 LOCKWASHER, TRIGGER COIL SCREW
    SERIAL 03051041-03052380
    LOCKWASHER, TRIGGER COIL SCREW
    SERIAL 03051041-03052380
  • 9
    337-4481 CAM, DISTRIBUTOR TRIGGER
    SERIAL 03051041-03052380
    CAM, DISTRIBUTOR TRIGGER
    SERIAL 03051041-03052380
  • 10
    53417 GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE
    GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE
  • 11
    10-62568 SCREW, GROUND STRAP ATTACHING (3/8")
    SCREW, GROUND STRAP ATTACHING (3/8")
  • 12
    22-31521 ELBOW, VENT-DISTRIBUTOR HOUSING
    SERIAL 00000000-02670574
    ELBOW, VENT-DISTRIBUTOR HOUSING
    SERIAL 00000000-02670574
  • 12
    22-55262 ELBOW, VENT- DISTRIBUTOR HOUSING
    SERIAL 02783253-03148653
    ELBOW, VENT- DISTRIBUTOR HOUSING
    SERIAL 02783253-03148653
  • 12
    58807A1 FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSING
    SERIAL 03186263-09999999
    FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSING
    SERIAL 03186263-09999999
  • 13
    15-21148A1 SHIM, ROTOR
    SERIAL 00000000-02991033
    SHIM, ROTOR
    SERIAL 00000000-02991033
  • 14
    15-55853 SHIM, ROTOR
    SERIAL 00000000-02991033
    SHIM, ROTOR
    SERIAL 00000000-02991033
  • 15
    23-53538 SPACER, ROTOR SHAFT
    SERIAL 00000000-02991033
    SPACER, ROTOR SHAFT
    SERIAL 00000000-02991033
  • 16
    393-3236 DISC, ROTOR
    SERIAL 00000000-02991033
    DISC, ROTOR
    SERIAL 00000000-02991033
  • 17
    30-26379 BALL BEARING, DISTRIBUTOR HOUSING (LOWER)
    BALL BEARING, DISTRIBUTOR HOUSING (LOWER)
  • 18
    53-26406 RING, RETAINING - BALL BEARING TO DISTRIBUTOR HOUSING
    RING, RETAINING - BALL BEARING TO DISTRIBUTOR HOUSING
  • 19
    393-4371 ROTOR, DISTRIBUTOR
    SERIAL 00000000-02670574
    ROTOR, DISTRIBUTOR
    SERIAL 00000000-02670574
  • 19
    393-4371 ROTOR, DISTRIBUTOR
    SERIAL 02783253-09999999
    ROTOR, DISTRIBUTOR
    SERIAL 02783253-09999999
  • 20
    54-53541 CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
    SERIAL 00000000-02670574
    CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
    SERIAL 00000000-02670574
  • 20
    54-59588 CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
    SERIAL 02783253-03192962
    CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
    SERIAL 02783253-03192962
  • 20
    54-60768 CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
    SERIAL 03307347-09999999
    CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
    SERIAL 03307347-09999999
  • 21
    10-54281 SCREW, DISTRIBUTOR CAP CLAMP (1")
    SCREW, DISTRIBUTOR CAP CLAMP (1")
  • 22
    11-26768 NUT, DISTRIBUTOR CAP CLAMP SCREW
    NUT, DISTRIBUTOR CAP CLAMP SCREW
  • 23
    32-8M0108355 HOSE, VENT- DISTRIBUTOR TO ELBOW (7")
    SERIAL 00000000-03148653
    HOSE, VENT- DISTRIBUTOR TO ELBOW (7")
    SERIAL 00000000-03148653
  • 23
    32-8M0108355 HOSE, VENT- DISTRIBUTOR TO ELBOW (10 1/2")
    SERIAL 00000000-03148653
    HOSE, VENT- DISTRIBUTOR TO ELBOW (10 1/2")
    SERIAL 00000000-03148653
  • 24
    22-31521 ELBOW, VENT HOSE TO BOTTOM COWL
    SERIAL 00000000-03148653
    ELBOW, VENT HOSE TO BOTTOM COWL
    SERIAL 00000000-03148653
  • 25
    54-22875 CLAMP, VENT HOSE TO FRONT SUPPORT BRACKET
    SERIAL 00000000-02670574
    CLAMP, VENT HOSE TO FRONT SUPPORT BRACKET
    SERIAL 00000000-02670574
  • 26
    10-48591 SCREW, VENT HOSE CLAMP (1/2")
    SERIAL 00000000-02670574
    SCREW, VENT HOSE CLAMP (1/2")
    SERIAL 00000000-02670574
  • 27
    8M0084613 "D" WASHER, CLAMP FASTENING SCREW
    SERIAL 00000000-02670574
    "D" WASHER, CLAMP FASTENING SCREW
    SERIAL 00000000-02670574
  • 28
    11-24656 NUT, CLAMP FASTENING SCREW
    SERIAL 00000000-02670574
    NUT, CLAMP FASTENING SCREW
    SERIAL 00000000-02670574
  • 29
    84-821945A4 CABLE ASSEMBLY, CAP TO COIL
    SERIAL 00000000-02991033
    CABLE ASSEMBLY, CAP TO COIL
    SERIAL 00000000-02991033
  • 29
    84-821945A5 CABLE ASSEMBLY, CAP TO COIL
    SERIAL 03051041-03052380
    CABLE ASSEMBLY, CAP TO COIL
    SERIAL 03051041-03052380
  • 30
    25-26547 GROMMET, CABLE
    GROMMET, CABLE
  • 31
    332-2854T01 BOOT, CABLE TO COIL
    BOOT, CABLE TO COIL
  • 32
    85-94589 SLEEVE, CABLE
    SLEEVE, CABLE
  • 33
    32-46398 SLEEVE, (LEADS 1, 2, 3, 4,) - (3/4")
    SLEEVE, (LEADS 1, 2, 3, 4,) - (3/4")
  • 34
    27-55896 GASKET, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
    SERIAL 02783253-09999999
    GASKET, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
    SERIAL 02783253-09999999
  • 35
    393-3726A10 DISTRIBUTOR CAP ASSEMBLY
    SERIAL 00000000-03148653
    DISTRIBUTOR CAP ASSEMBLY
    SERIAL 00000000-03148653
  • 36
    393-1293A1 BRUSH AND SPRING ASSEMBLY
    SERIAL 00000000-03148653
    BRUSH AND SPRING ASSEMBLY
    SERIAL 00000000-03148653
  • 37
    22-31521 ELBOW, VENT - DISTRIBUTOR CAP
    SERIAL 00000000-03148653
    ELBOW, VENT - DISTRIBUTOR CAP
    SERIAL 00000000-03148653
  • 35
    393-3726A10 DISTRIBUTOR CAP ASSEMBLY
    SERIAL 03186263-09999999
    DISTRIBUTOR CAP ASSEMBLY
    SERIAL 03186263-09999999
  • 36
    393-1293A1 BRUSH AND SPRING ASSEMBLY
    SERIAL 03186263-09999999
    BRUSH AND SPRING ASSEMBLY
    SERIAL 03186263-09999999
  • 37
    58807A1 FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSING
    SERIAL 03186263-09999999
    FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSING
    SERIAL 03186263-09999999
  • 38
    63319 RETAINER, LEADS
    RETAINER, LEADS
  • 39
    10-46378 SCREW, LEAD RETAINER (1")
    SCREW, LEAD RETAINER (1")
  • 40
    11-20013 NUT, RETAINER SCREW
    NUT, RETAINER SCREW
  • 41
    33-97180Q SPARK PLUG (CHAMPION - L19V)
    SERIAL 00000000-02670574
    SPARK PLUG (CHAMPION - L19V)
    SERIAL 00000000-02670574
  • 41
    33-97180Q SPARK PLUG (AC V-40FFM)
    SERIAL 02783253-09999999
    SPARK PLUG (AC V-40FFM)
    SERIAL 02783253-09999999
  • 42
    84-813715A1 SPARK PLUG LEAD ASSEMBLY #1, #2, #3 AND #4
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
    SPARK PLUG LEAD ASSEMBLY #1, #2, #3 AND #4
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
  • --
    8M0084600 CONNECTOR, SPARK PLUG LEAD
    CONNECTOR, SPARK PLUG LEAD
  • 43
    85-63709A1 PROTECTOR, SPARK PLUG LEAD
    PROTECTOR, SPARK PLUG LEAD
  • 44
    32-46768 SLEEVE, SPARK PLUG LEAD (LEADS 1, 2, 3, 4)
    SLEEVE, SPARK PLUG LEAD (LEADS 1, 2, 3, 4)
  • 45
    85-94589 SLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR
    SLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR
