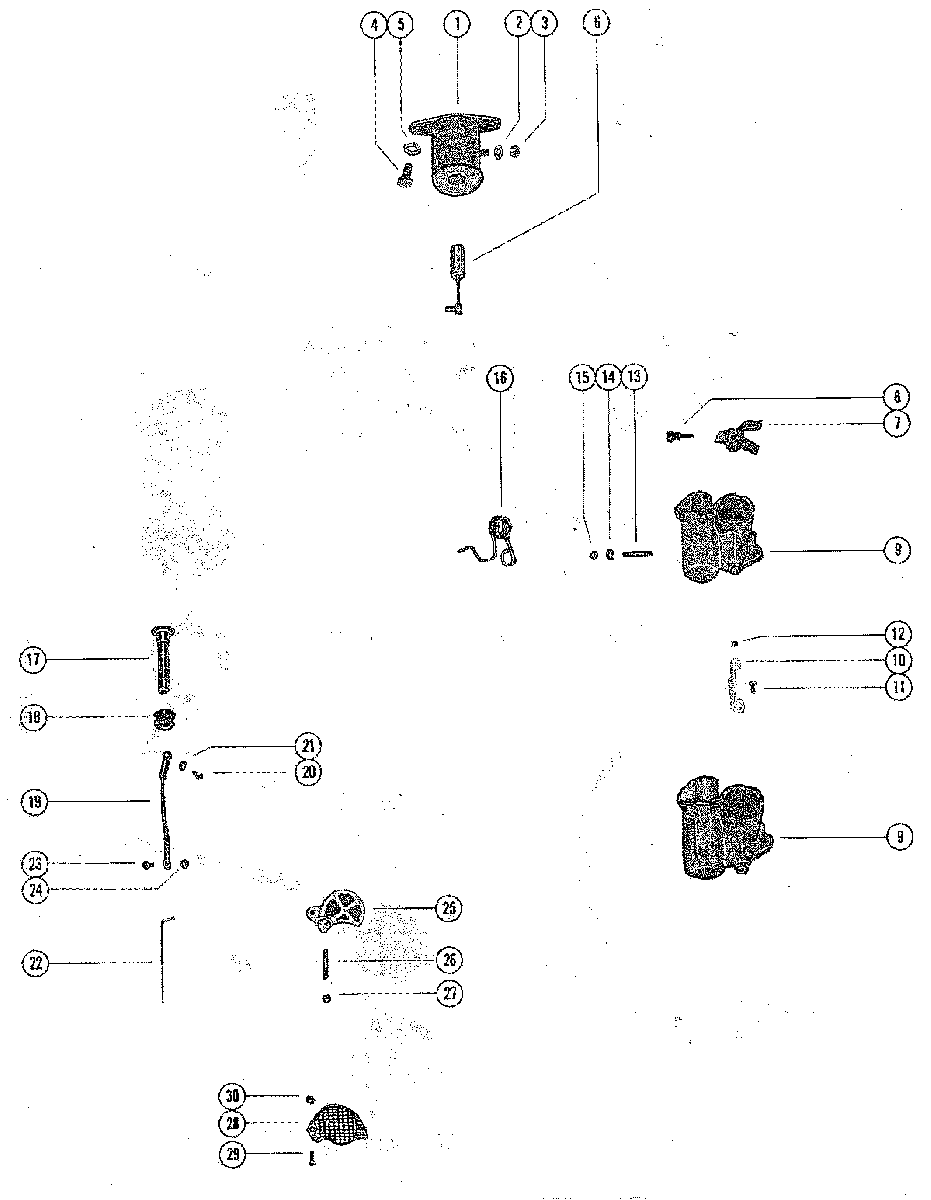

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912

  • №
    Артикул
    Название
  • 1
    48187 CHOKE SOLENOID
    SERIAL 00000000-02670574
    CHOKE SOLENOID
    SERIAL 00000000-02670574
  • 1
    54293A10 CHOKE SOLENOID
    SERIAL 02783253-09999999
    CHOKE SOLENOID
    SERIAL 02783253-09999999
  • 2
    13-26996 LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID
    LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID
  • 3
    11-68219 NUT, WIRE HARNESS LEAD TO CHOKE SOLENOID
    NUT, WIRE HARNESS LEAD TO CHOKE SOLENOID
  • 4
    10-25299 SCREW, CHOKE SOLENOID ATTACHING (3/4")
    SCREW, CHOKE SOLENOID ATTACHING (3/4")
  • 5
    13-26993 LOCKWASHER, CHOKE SOLENOID ATTACHING SCREW
    LOCKWASHER, CHOKE SOLENOID ATTACHING SCREW
  • 6
    48315A2 PLUNGER/LINK ASS"Y, CHOKE SOLENOID
    SERIAL 00000000-02670574
    PLUNGER/LINK ASS"Y, CHOKE SOLENOID
    SERIAL 00000000-02670574
  • 6
    90548A1 PLUNGER/LINK ASS'Y, CHOKE SOLENOID
    SERIAL 02783253-09999999
    PLUNGER/LINK ASS'Y, CHOKE SOLENOID
    SERIAL 02783253-09999999
  • 7
    52518 CLUSTER, THROTTLE LEVER
    CLUSTER, THROTTLE LEVER
  • 8
    1395-6027 SCREW, CLUSTER TO THROTTLE LEVER
    SCREW, CLUSTER TO THROTTLE LEVER
  • 9
    1352-4440A1 CARBURETOR ASSEMBLY, COMPLETE (SERIAL #2991033 AND BELOW)
    CARBURETOR ASSEMBLY, COMPLETE (SERIAL #2991033 AND BELOW)
  • 9
    1352-4440A1 CARBURETOR ASSEMBLY, COMPLETE (SERIAL #3051041 AND UP)
    CARBURETOR ASSEMBLY, COMPLETE (SERIAL #3051041 AND UP)
  • 10
    53720A2 THROTTLE PICK-UP COUPLING ASSEMBLY
    THROTTLE PICK-UP COUPLING ASSEMBLY
  • 11
    10-53651 SCREW, THROTTLE COUPLING MOUNTING (3/4")
    SCREW, THROTTLE COUPLING MOUNTING (3/4")
  • 12
    28-89694 INSERT, THROTTLE COUPLING
    INSERT, THROTTLE COUPLING
  • 13
    10-657461 STUD, CHOKE ROD SPRING TO CARBURETOR (7/8")
    STUD, CHOKE ROD SPRING TO CARBURETOR (7/8")
  • 14
    23-32427 SPACER, CHOKE ROD SPRING STUD
    SPACER, CHOKE ROD SPRING STUD
  • 15
    11-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUD
    NUT, CHOKE ROD SPRING TO CARBURETOR STUD
  • 16
    24-48230 SPRING, TENSION-CHOKE ROD
    SPRING, TENSION-CHOKE ROD
  • 17
    90242A1 KNOB, CHOKE ROD
    KNOB, CHOKE ROD
  • 18
    25-20116 GROMMET, CHOKE ROD
    GROMMET, CHOKE ROD
  • 19
    49589 STRAP, CHOKE KNOB TO CHOKE ROD
    STRAP, CHOKE KNOB TO CHOKE ROD
  • 20
    10-69022 SCREW, STRAP TO CHOKE KNOB (1/2")
    SCREW, STRAP TO CHOKE KNOB (1/2")
  • 21
    13-26996 LOCKWASHER, STRAP SCREW
    LOCKWASHER, STRAP SCREW
  • 22
    48203 ROD, CHOKE
    ROD, CHOKE
  • 23
    10-69022 SCREW, STRAP TO CHOKE ROD
    SCREW, STRAP TO CHOKE ROD
  • 24
    11-46438 NUT, STRAP TO CHOKE ROD SCREW
    NUT, STRAP TO CHOKE ROD SCREW
  • 25
    48152 SHUTTER, CHOKE-CARBURETOR
    SHUTTER, CHOKE-CARBURETOR
  • 26
    16-69037 STUD, FILTER SCREEN TO CARBURETOR (1 1/8")
    STUD, FILTER SCREEN TO CARBURETOR (1 1/8")
  • 27
    11-20110 NUT, CHOKE SHUTTER STUD
    NUT, CHOKE SHUTTER STUD
  • 28
    35-57819A1 SCREEN, FILTER-CARBURETOR
    SERIAL 00000000-02885849
    SCREEN, FILTER-CARBURETOR
    SERIAL 00000000-02885849
  • 29
    10-22523 SCREW, FILTER SCREEN TO CARBURETOR (3/4")
    SERIAL 00000000-02885849
    SCREW, FILTER SCREEN TO CARBURETOR (3/4")
    SERIAL 00000000-02885849
  • 28
    35-57819 SCREEN, FILTER-CARBURETOR
    SERIAL 02885850-09999999
    SCREEN, FILTER-CARBURETOR
    SERIAL 02885850-09999999
  • 29
    10-23015 SCREW, FILTER SCREEN TO CARBURETOR
    SERIAL 02885850-09999999
    SCREW, FILTER SCREEN TO CARBURETOR
    SERIAL 02885850-09999999
  • --
    24-57818 SPRING, FILTER SCREEN
    SERIAL 02885850-09999999
    SPRING, FILTER SCREEN
    SERIAL 02885850-09999999
  • 30
    11-20110 NUT, CARBURETOR SCREEN SCREW
    NUT, CARBURETOR SCREEN SCREW
