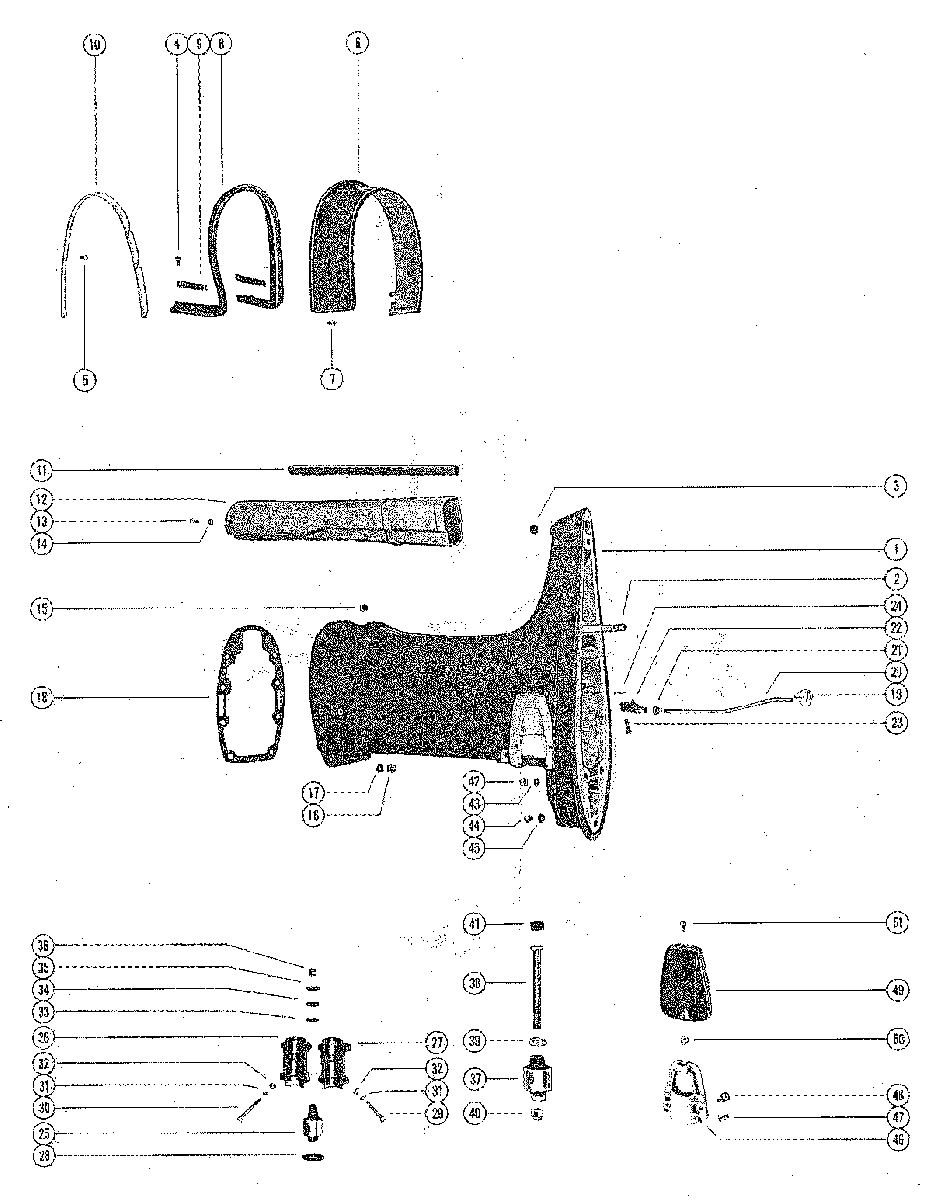

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912

  • №
    Артикул
    Название
  • 1
    1552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
    SERIAL 00000000-02670574
    DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
    SERIAL 00000000-02670574
  • 1
    1551-3918A3 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
    SERIAL 00000000-02670574
    DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
    SERIAL 00000000-02670574
  • 1
    1552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
    SERIAL 02783253-09999999
    DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
    SERIAL 02783253-09999999
  • 1
    1551-3918A3 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
    SERIAL 02783253-09999999
    DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
    SERIAL 02783253-09999999
  • 2
    16-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16")
  • 3
    19-47579 PLUG, PLASTIC-TRIM TAB SCREW HOLE
    SERIAL 00000000-02670574
    PLUG, PLASTIC-TRIM TAB SCREW HOLE
    SERIAL 00000000-02670574
  • 3
    19-824928001 PLUG, PLASTIC-TRIM TAB SCREW HOLE
    SERIAL 02783253-09999999
    PLUG, PLASTIC-TRIM TAB SCREW HOLE
    SERIAL 02783253-09999999
  • 4
    10-48409 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")
    SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")
  • 5
    10-48408 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")
    SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")
  • 6
    37417 COVER, TRIM-DRIVE SHAFT HOUSING
    COVER, TRIM-DRIVE SHAFT HOUSING
  • 7
    10-37571 SCREW, TRIM COVER TO BOTTOM COWL (1/2")
    SERIAL 00000000-02786462
    SCREW, TRIM COVER TO BOTTOM COWL (1/2")
    SERIAL 00000000-02786462
  • 7
    10-57807 SCREW, TRIM COVER TO BOTTOM COWL (3/4")
    SERIAL 02881082-09999999
    SCREW, TRIM COVER TO BOTTOM COWL (3/4")
    SERIAL 02881082-09999999
  • -
    25-8M0079730 GROMMET, TRIM COVER SCREW
    SERIAL 02881082-09999999
    GROMMET, TRIM COVER SCREW
    SERIAL 02881082-09999999
  • 8
    37919 SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
    SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
  • 9
    37665 STRIP, RETAINING-TRIM COVER SEAL (SIDE)
    STRIP, RETAINING-TRIM COVER SEAL (SIDE)
  • 10
    38052 STRIP, RETAINING-TRIM COVER SEAL (REAR)
    STRIP, RETAINING-TRIM COVER SEAL (REAR)
  • 11
    32-37446 TUBE, WATER INLET (SHORT SHAFT)
    TUBE, WATER INLET (SHORT SHAFT)
  • 11
    32-37438 TUBE, WATER INLET (LONG SHAFT)
    TUBE, WATER INLET (LONG SHAFT)
  • 12
    38469 TUBE, EXHAUST (SHORT SHAFT)
    TUBE, EXHAUST (SHORT SHAFT)
  • 12
    38470 TUBE, EXHAUST (LONG SHAFT)
    TUBE, EXHAUST (LONG SHAFT)
  • 13
    10-38601 SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE (5/8")
    SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE (5/8")
  • 14
    11-35888 NUT, EXHAUST TUBE SCREW
    NUT, EXHAUST TUBE SCREW
  • 15
    11-23161 NUT, POWERHEAD STUDS (3/8-24)
    NUT, POWERHEAD STUDS (3/8-24)
  • 15
    11-82670911 NUT, POWERHEAD STUDS (5/16-24)
    NUT, POWERHEAD STUDS (5/16-24)
  • 16
    11-8M0042636 NUT, POWERHEAD STUDS (3/8-24)
    NUT, POWERHEAD STUDS (3/8-24)
  • 17
    12-20086 WASHER, POWERHEAD STUDS
    WASHER, POWERHEAD STUDS
  • 18
    27-48801 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 19
    52887 GUIDE, PUSH ROD-REVERSE LOCKING
    GUIDE, PUSH ROD-REVERSE LOCKING
  • 20
    47591 ROD, PUSH-REVERSE LOCK (SHORT SHAFT)
    ROD, PUSH-REVERSE LOCK (SHORT SHAFT)
  • 20
    47558 ROD, PUSH-REVERSE LOCK (LONG SHAFT)
    ROD, PUSH-REVERSE LOCK (LONG SHAFT)
  • 21
    11-69254 NUT, JAM-PUSH ROD
    NUT, JAM-PUSH ROD
  • 22
    47559 YOKE, PUSH ROD
    YOKE, PUSH ROD
  • 23
    24-78203A2 PIN, PUSH ROD TO REVERSE LOCK
    PIN, PUSH ROD TO REVERSE LOCK
  • 24
    18-25191 COTTER PIN, PUSH ROD PIN
    COTTER PIN, PUSH ROD PIN
  • 25
    37396 MOUNT -UPPER
    MOUNT -UPPER
  • 26
    26218 COVER, UPPER MOUNT-OUTSIDE HALF
    COVER, UPPER MOUNT-OUTSIDE HALF
  • 27
    26217 COVER, UPPER MOUNT-INSIDE HALF
    SERIAL 00000000-02670574
    COVER, UPPER MOUNT-INSIDE HALF
    SERIAL 00000000-02670574
  • 27
    57931 COVER, UPPER MOUNT-INSIDE HALF
    SERIAL 02783253-09999999
    COVER, UPPER MOUNT-INSIDE HALF
    SERIAL 02783253-09999999
  • 28
    24929 PACKING, "U" CUP
    PACKING, "U" CUP
  • 29
    10-20012 SCREW, UPPER MOUNT COVER (1 5/8")
    SCREW, UPPER MOUNT COVER (1 5/8")
  • 30
    10-28775 SCREW, UPPER MOUNT COVER (2 1/8")
    SCREW, UPPER MOUNT COVER (2 1/8")
  • 31
    12-29245 WASHER, UPPER MOUNT COVER SCREW
    WASHER, UPPER MOUNT COVER SCREW
  • 32
    11-35888 NUT, UPPER MOUNT COVER SCREW
    NUT, UPPER MOUNT COVER SCREW
  • 33
    12-30515 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 34
    12-47894 WASHER, RUBBER-UPPER MOUNT BOLT
    WASHER, RUBBER-UPPER MOUNT BOLT
  • 35
    12-30514 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 36
    11-34933 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 37
    75298 MOUNT, RUBBER-LOWER
    MOUNT, RUBBER-LOWER
  • 38
    10-75284 SCREW, UPPER MOUNT (5 1/2")
    SCREW, UPPER MOUNT (5 1/2")
  • 39
    12-49339 WASHER, MOUNT SCREW
    WASHER, MOUNT SCREW
  • 40
    11-25096 NUT, MOUNT SCREW
    NUT, MOUNT SCREW
  • 41
    25067 BUMPER, RUBBER-MOUNTING SCREW
    BUMPER, RUBBER-MOUNTING SCREW
  • 42
    11-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
    NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
  • 43
    12-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 44
    11-29489 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
    NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
  • 45
    12-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 46
    35608 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
    CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
  • 47
    24-35522 SPRING, TENSION-LOWER MOUNT CLAMP
    SPRING, TENSION-LOWER MOUNT CLAMP
  • 48
    10-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")
    SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")
  • 49
    35474T COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 50
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
  • 51
    10-29722 SCREW, COVER TO LOWER CLAMP MOUNT
    SCREW, COVER TO LOWER CLAMP MOUNT
